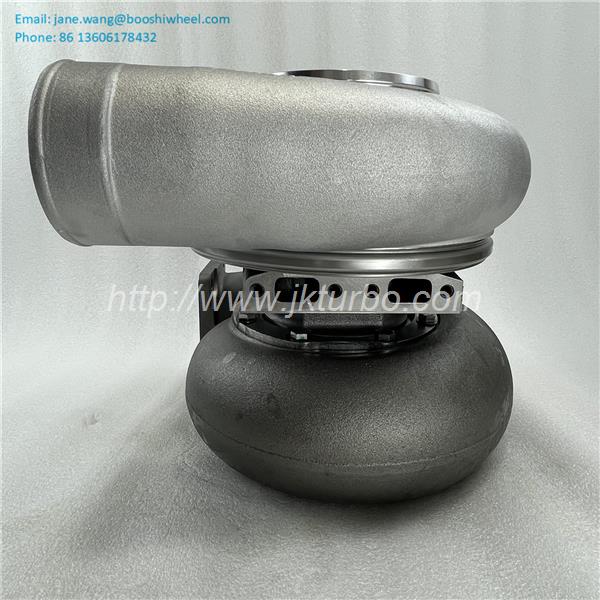

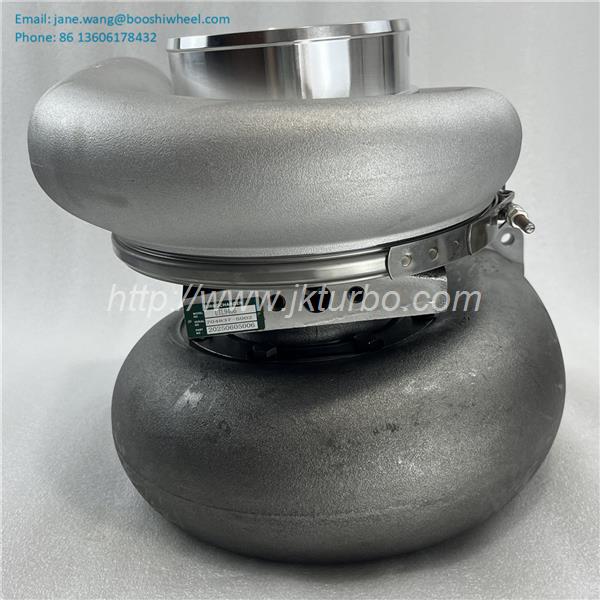

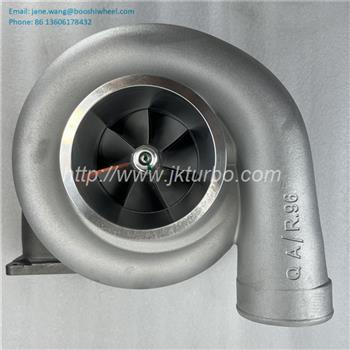

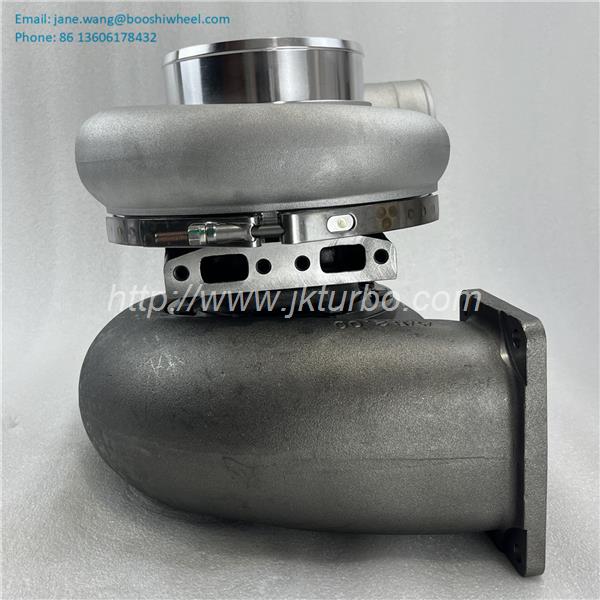

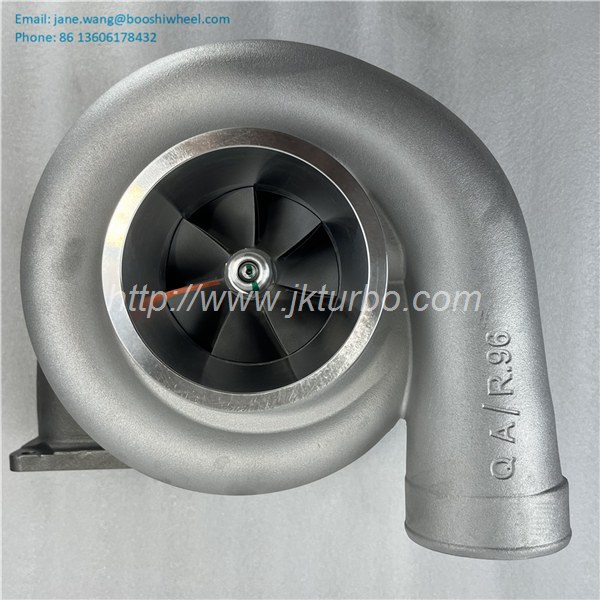

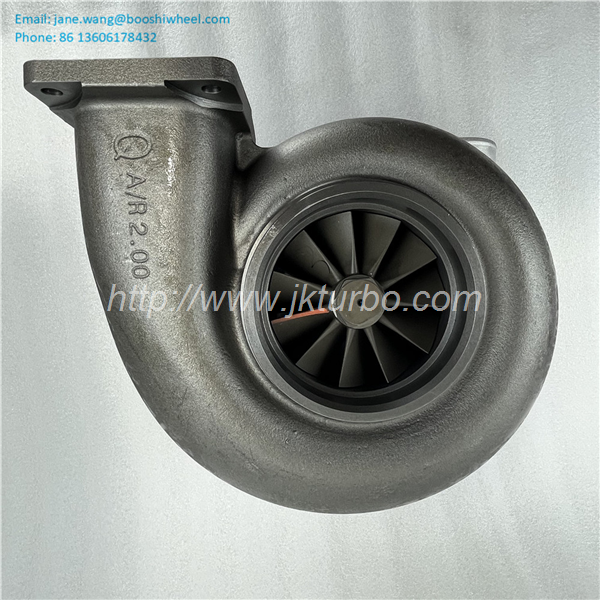

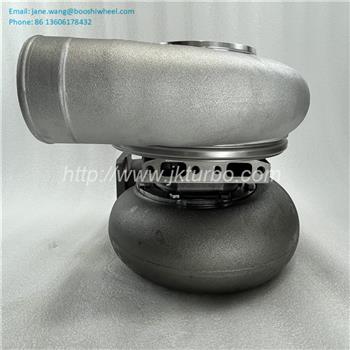

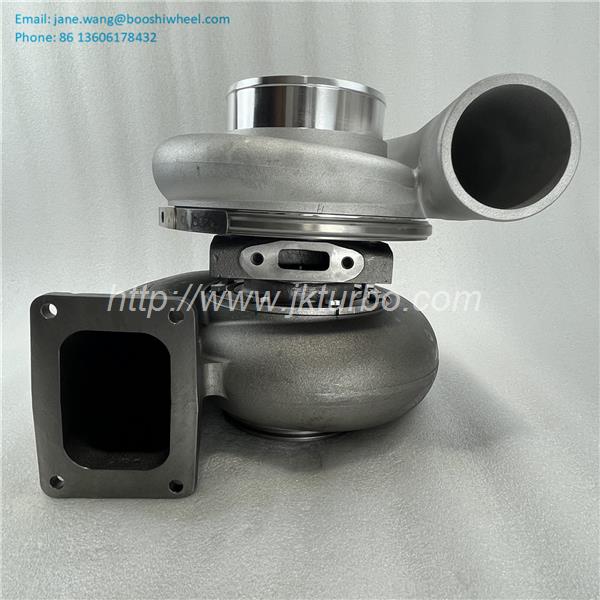

NEW model UTL9406 Turbo charger 704837-5002S 704837-5002 704837-0002 704837-0004 for 1999 Industrial Engine F3524GSI 211896.0 211896 214007

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	704837-5002S
Previous versions	704837-0002, 704837-0004
OE Number	211896.0, 211896, 214007
Description	Industrial Caterpillar CV Off Highway
CHRA	452669-0006 (452669-5006, 452669-9006) $1115.00 NEW IN STOCK
Turbo Model	UTL9406
Engine Model	F3524GSI, L7044GSI, F3524, L7044GSI Engines Draw Thru, 7044
Fuel	CNG (Compressed Natural Gas)
Bearing Housing	451861-0002 (Water-Cooled) $528.24 NEW IN STOCK
Turbine Wheel	451882-0004 (Ind. 129. mm, Exd. 111.6 mm, Trm 18.72, 11 Blades) $831.84 NEW IN STOCK
Comp. Wheel	451883-0008 (Ind. 93.8 mm, Exd. 141.3 mm, Trm 9.6, 7+7 Blades, Superback) $290.48 NEW IN STOCK
Back plate	452668-0001 (408045-0057) $154.79 NEW IN STOCK
Repair Kit	705731-0001 $189.00 NEW IN STOCK
Turbine Housing	409688-0033 (1100181821) $1,550.95 NEW IN STOCK
Compressor Cover	432078-0001 (432078-0004)(23503610) $583.50 NEW IN STOCK
Turbine Housing A/R	2.0
Gasket (turbine inlet)	409038-0001 (409038-0000, 1S4295, 210835-0000, 9749, 132040, 202873, 205396, 3500683, 210017-0000)(1900000003) $14.02
Gasket oil inlet	210161 (paper) $4.50
Gasket (oil outlet)	210172 (Paper) $2.00
Gasket (water inlet and outlet)	210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(1900000027) $4.32
Listed	$4,730.34
Replaced By	701100-0009
Manufacturer	Honeywell-Garrett, USA

Applications

1999- Waukesha, Caterpillar Industrial Engine F3524GSI
