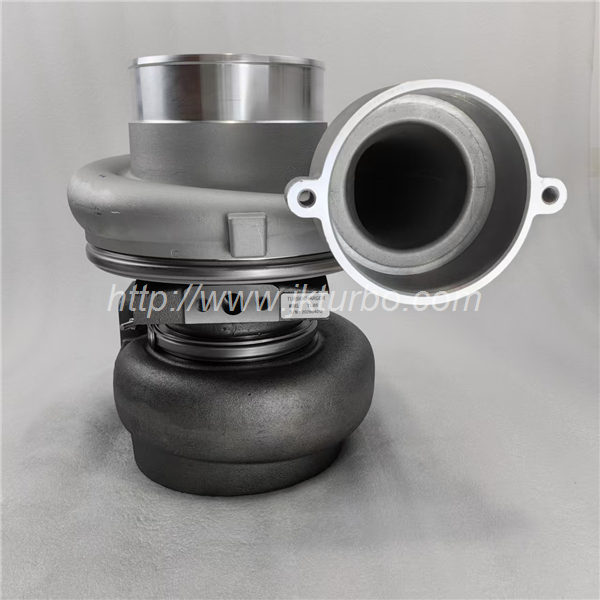

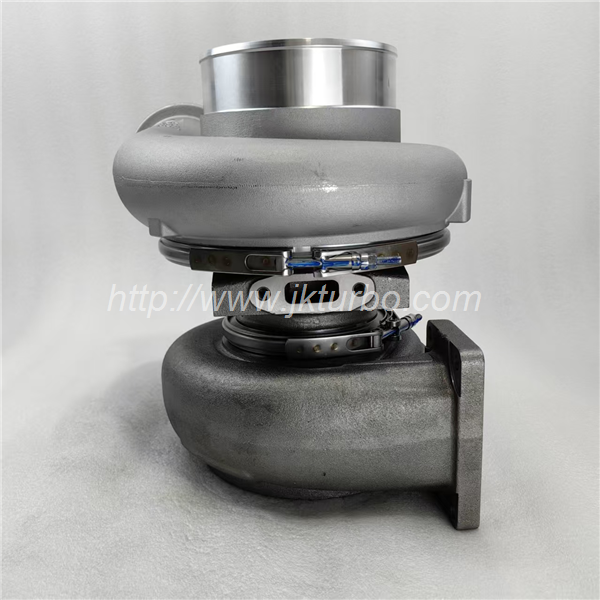

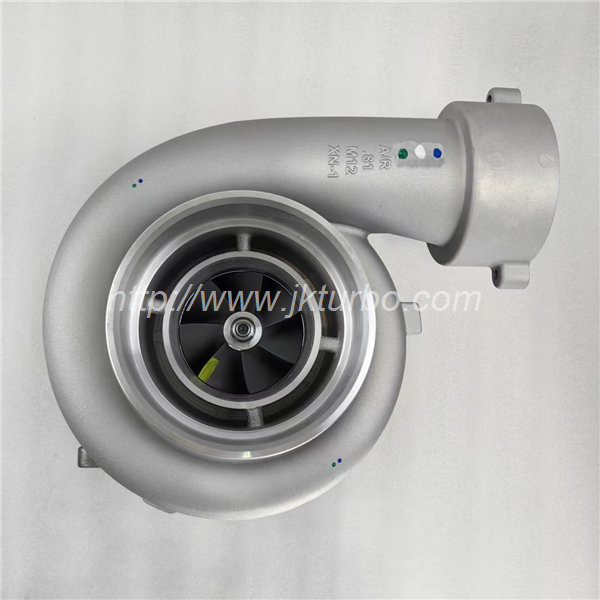

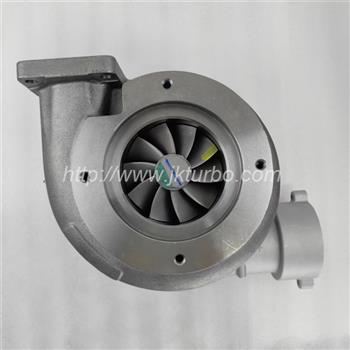

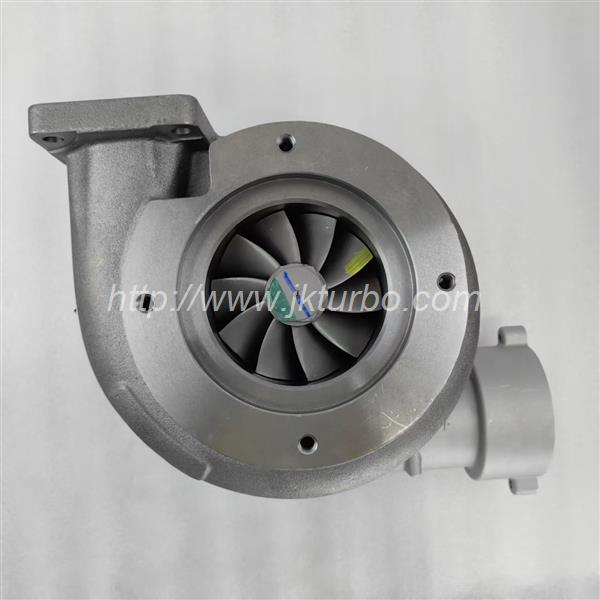

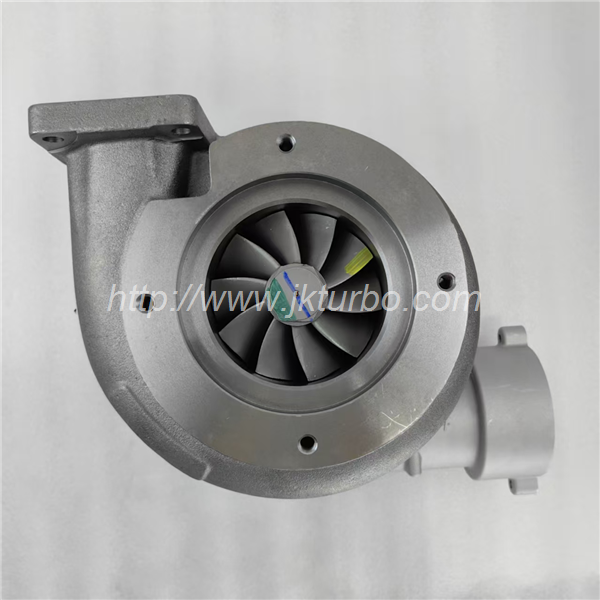

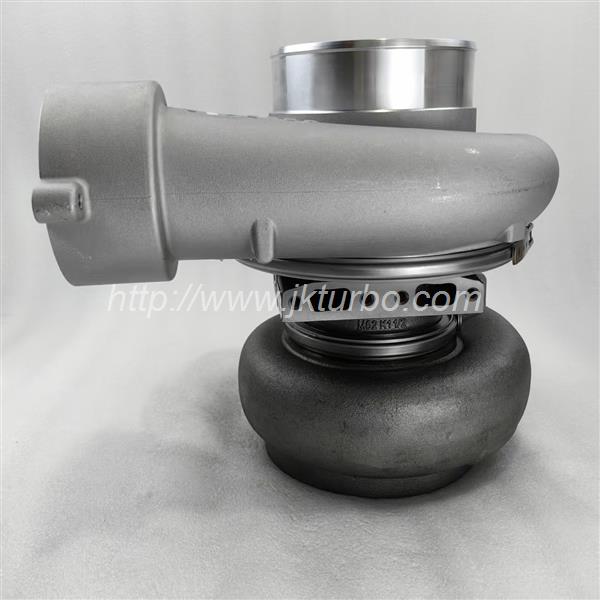

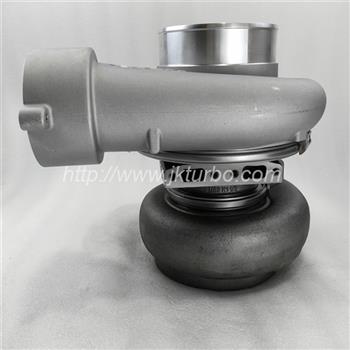

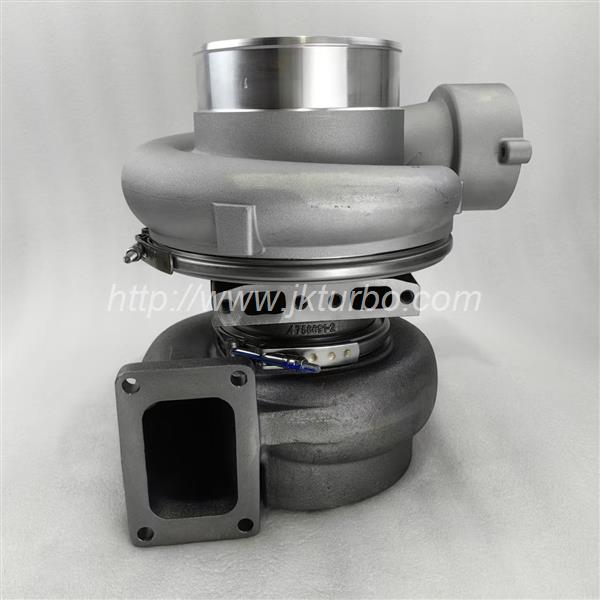

BTL8501 466725-0005 466725-9005 466725-5 Turbocharger Marine, Engines and Power Units

TL85 Turbocharger 466725-0005 466725-5005S 145-7095 1135180 466725-0010 for Marine Engines and Power Units

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	466725-5005S
Previous Version	466725-0005, 466725-9005, 466725-5, , 466725-0010, 466725-0012, 466725-0016
OE Number	145-7095, 1135180, , 466725-0010, 466725-0012, 466725-0016, 1586599, 2877214, 1457095
Description	Industrial, Marine, Engines and Power Units
CHRA	449109-0012 (449109-5012S, 449109-0004, 710270-0012)(146-9173, 0R7038, 1469173, 1923726, 10R8934) $2,175.92 NEW IN STOCK
Displacement	34.5L, 34500 ccm, 8V Cylinders
Turbo Model	BTL8501, BTLA8501
Prefix	7EF, 96Y, 66Z, 2BM, 3DM, 5PS, 7SM, C8R, GS7, LPD, S2B, S2E, 1PW, 2GW, 4AW, S2G, S2K, 3CW, 5KW, 99Z, BLF, MGC, PTF, 7EF, S2Z, GS2, PES,
Engine Model	466725-0005
Engine Manufacturer	Caterpillar
Fuel	Diesel
Marine Engine	3512B
Generator Set Engine	3512B
Generator	SR4B, SR4BHV
S/N	CTB249-UP, S2G108-UP, 4AW339-UP, CTB1-UP
Bearing Housing	449159-0005 (Water-Cooled) $413.58 NEW IN STOCK
Turbine Wheel	449236-0001 (44567-0005)(Ind. 101.05 mm, Exd. 110.24 mm, 11 Blades, Boreless) $683.40 NEW IN STOCK
Comp. Wheel	449207-0002 (449207-0022)(Ind. 79.73 mm, Exd. 117.83 mm, Trm 7.21, 7+7 Blades, Boreless) $94.80 NEW IN STOCK
Back plate	448797-0011 (708668-0005) $284.86 NEW IN STOCK
Heat Shield / Shroud	441096-0001 (441097-0001) $16.12 NEW IN STOCK
Repair Kit	468267-0007 (468267-0006) $95.33 NEW IN STOCK
Turbine Housing	451513-0010 (1247274) $1220.68
Compressor Cover	442892-0073
Turbine Housing AR	1.23
Gasket (turbine inlet)	409038-0001 (210835-0000, 9749)(Inox Steel) $14.02
Gasket oil inlet	210161 (Paper)
Gasket (oil outlet)	210172 (Paper)
Gasket (water inlet and outlet)	210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(Paper) $4.48
NOTE	Partially restricted
New listed	$5537.27
Manufacturer	Honeywell-Garrett

Applications

Caterpillar Industrial, Engines and Power Units with 3512B Engine
