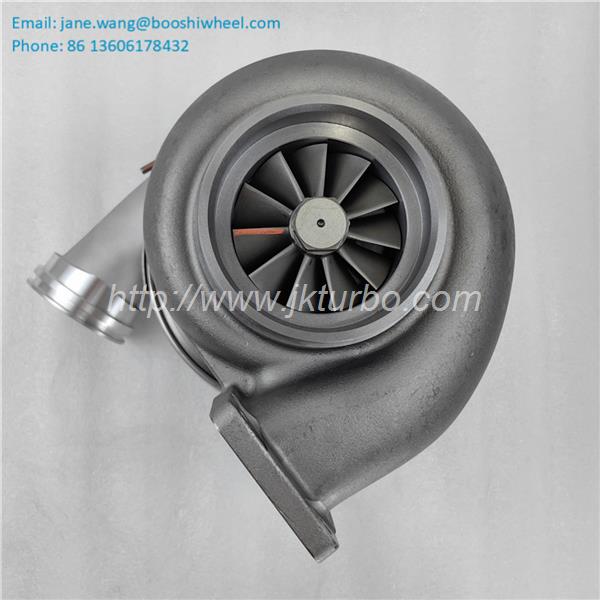

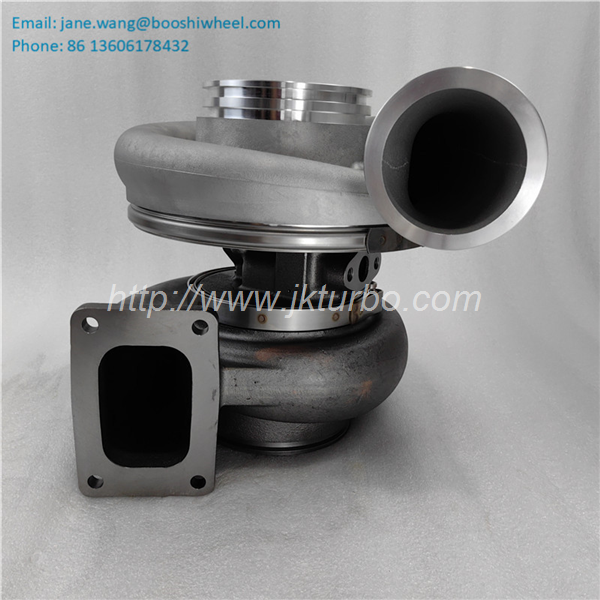

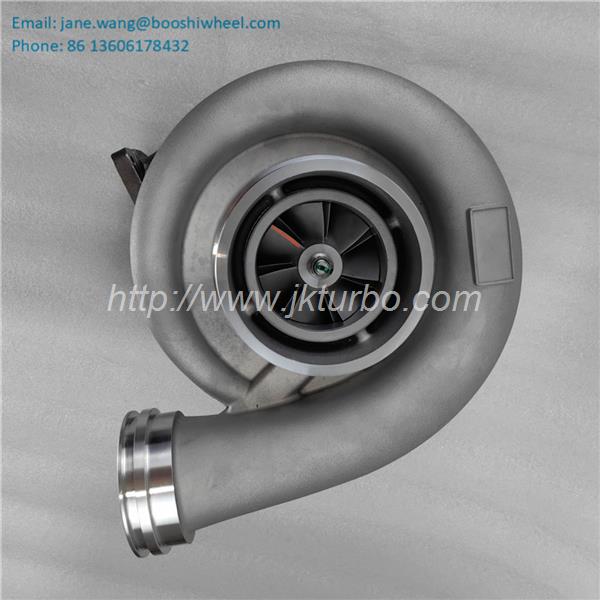

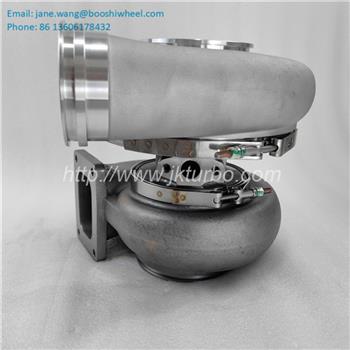

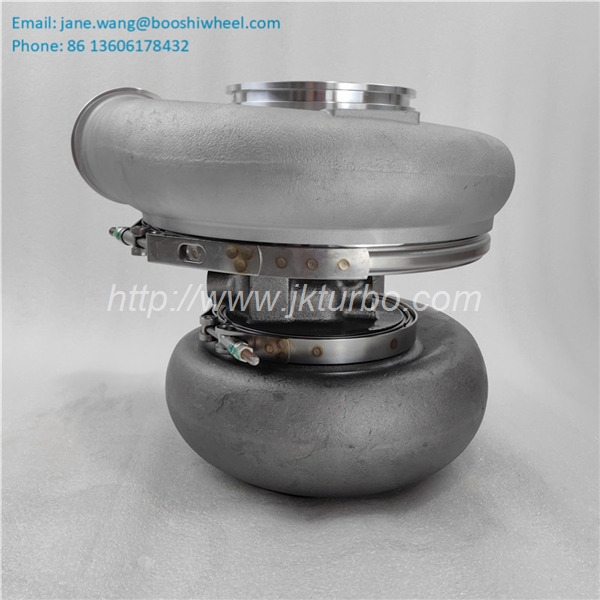

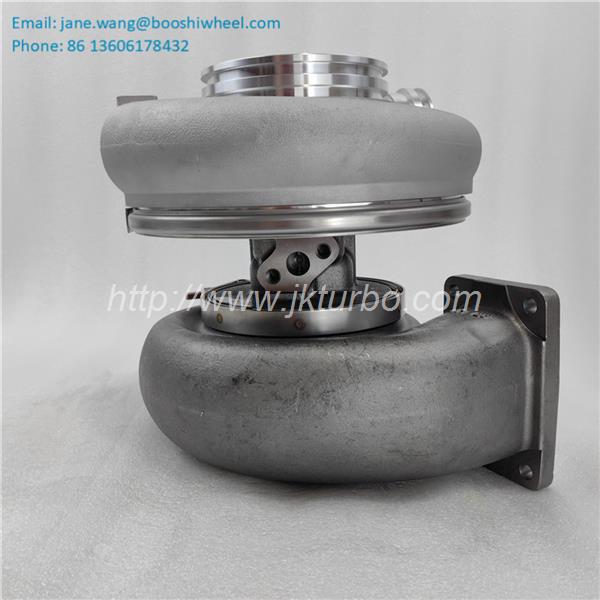

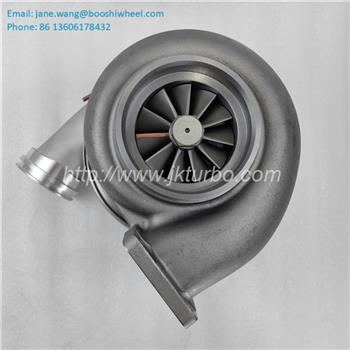

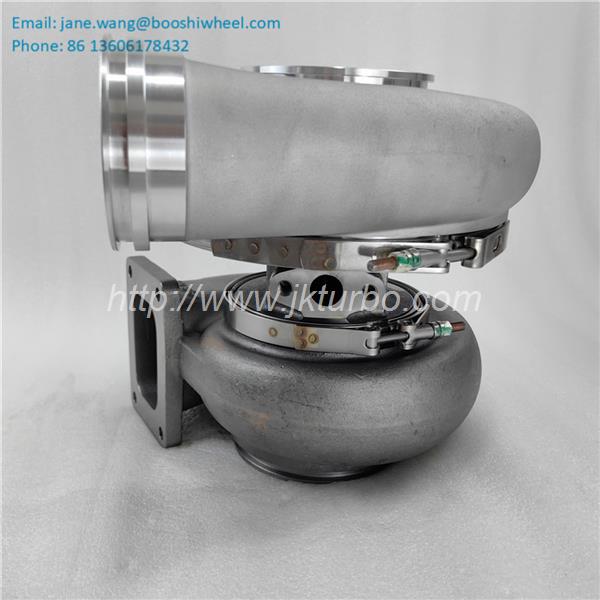

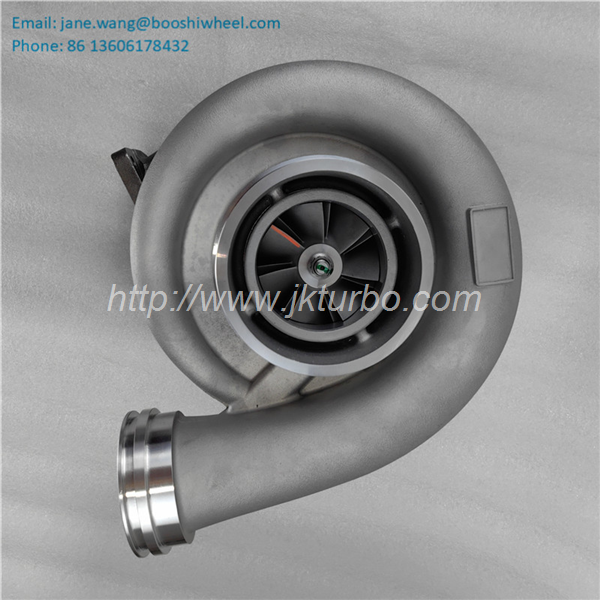

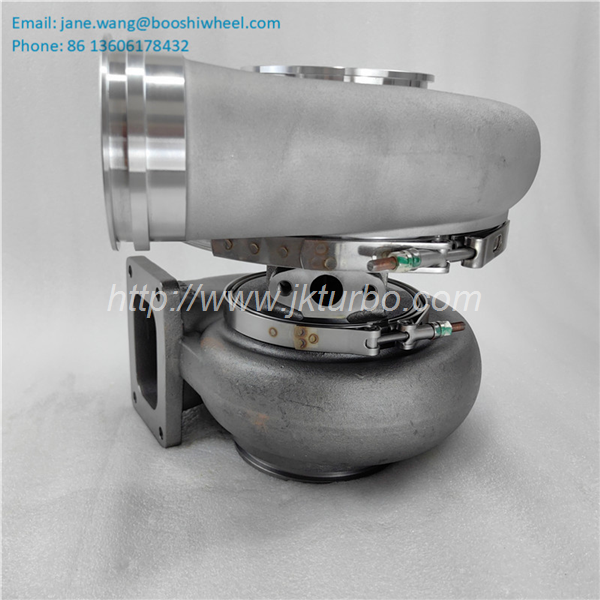

UTV8133 Turbocharger 721853-5003S 721853-0003 7218530003 721853-3 Waukesha GUASCOR Industrial Engine VGF H24GLD

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	721853-5003S
Previous Version	721853-0003, 7218530003, 721853-3
OE number	305866A, 305865A
CHRA	449530-0041 (449530-5041S) $1,739.90 NEW IN STOCK
Turbo Model	UTV8133
Fuel	CNG
Angle α (compressor housing)	238º
Angle β (turbine housing)	15º
Bearing Housing	449072-0016 (Oil Cooled) $277.42 NEW IN STOCK
Turbine Wheel	449587-0001 (Ind. 97.10 mm, Exd. 111.45 mm, Trm 16.59, 11 Blades) $544.41 NEW IN STOCK
Comp. Wheel	449587-0001 (443121-0003)(6I0849)(Ind. 80.6 mm, Exd. 117.6 mm, Trm 8, 7+7 Blades) $242.30 NEW IN STOCK
Back plate	442732-0005 $194.39 NEW IN STOCK
Heat Plate	407657-0009 $76.06 NEW IN STOCK
Repair Kit	468267-0010 (1101085750) $88.40 NEW IN STOCK
Turbine Housing	408499-0044 (1W6553) $528.33 NEW IN STOCK
Compressor Cover	446824-0002 $529.22 NEW IN STOCK
Turbine Housing AR	1.23
Gasket (turbine inlet)	409038-0001
Gasket oil inlet	129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900) $8.40
Gasket (oil outlet)	210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38
Replaced By	721853-0001
Manufacturer	Honeywell-Garrett

Applications

Waukesha, GUASCOR Industrial Engine VGF H24GLD
