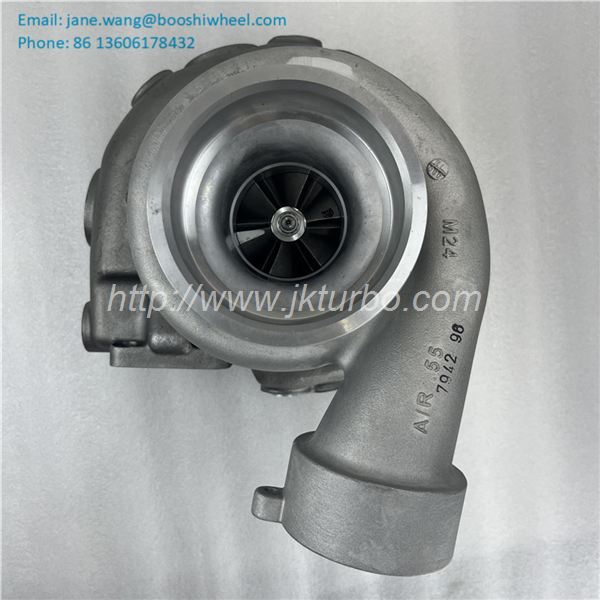

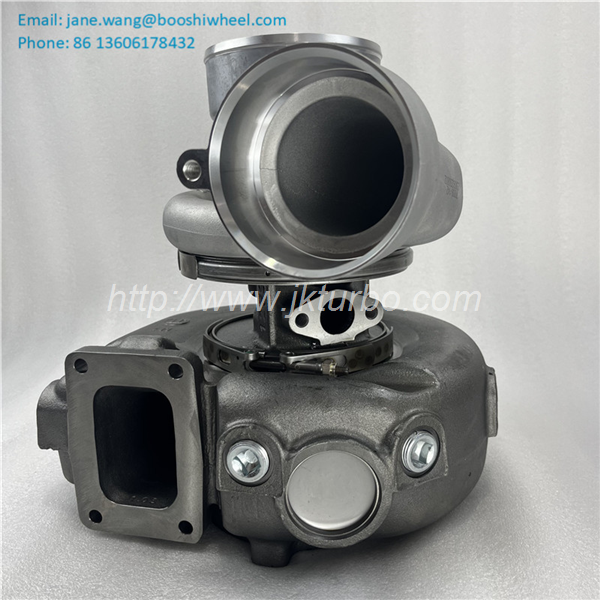

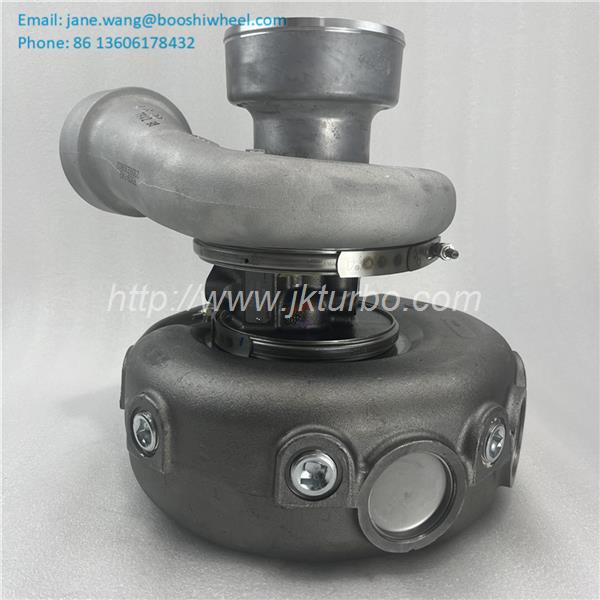

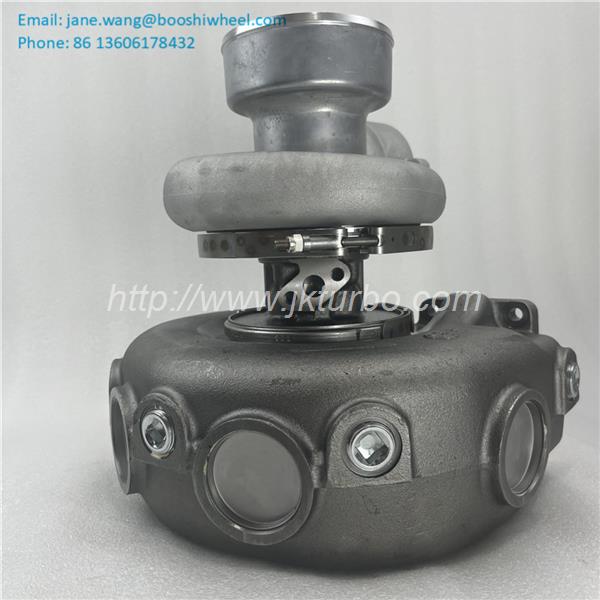

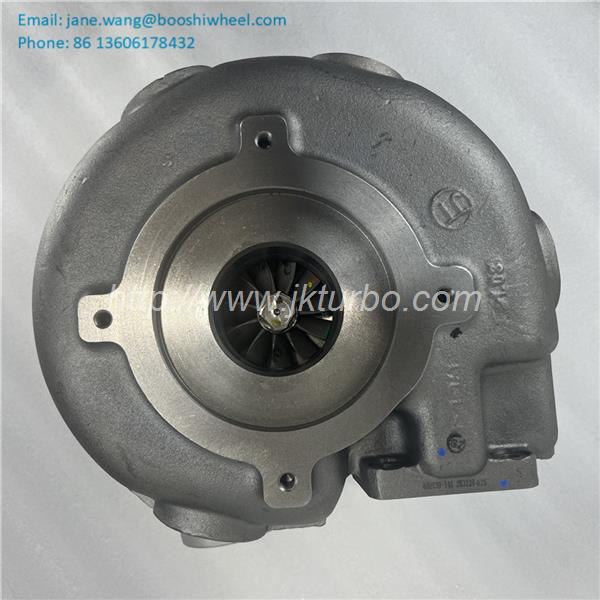

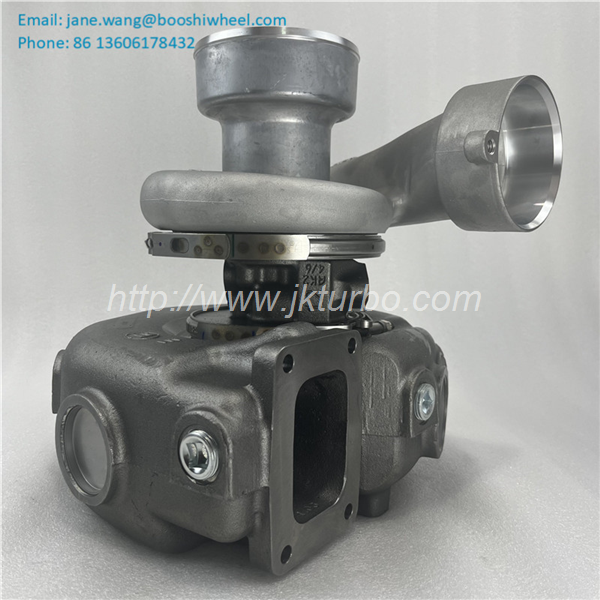

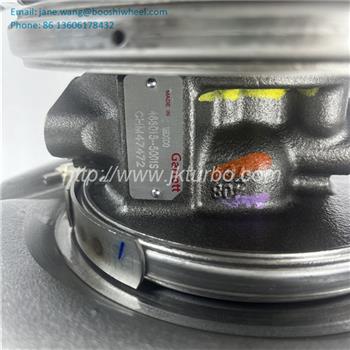

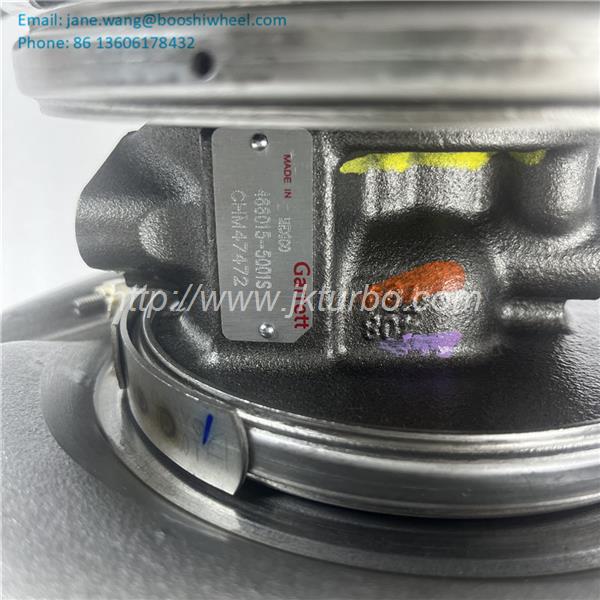

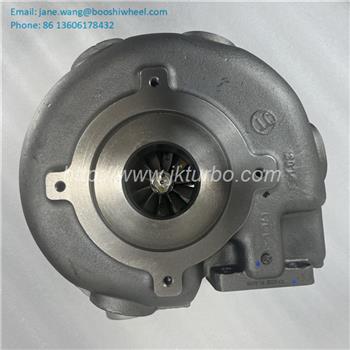

TW6156 Turbocharger 466015-5001S 466015-0001 466015-9001 466015-1 20R-7014 20R7014 9Y-9810 9Y9810 turbo for Caterpillar Marine with 3304 Engine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	466015-5001S
Previous Version	466015-0001, 466015-9001, 466015-1
OE number	20R-7014, 20R7014, 9Y-9810, 9Y9810
Description	Marine, Generator
CHRA	409043-0102 (409043-5102S)(10R8221, 7C2286) $1,700.11 IN STOCK
Turbo Model	TW6156
Engine	G3406
Displacement	14.60L, 14600 ccm, 6 Cylinders
Fuel	Diesel
Generator Set Engine	G3406
Generator Engine	SR4
Industrial Engine	G3406
S/N	4FD1-UP, 1RK1-UP, KAR1-UP, R7E1-UP
Bearing Housing	408495-0028 (9N2035)(408495-0009, 408495-0010)(Oil-Cooled)(1101672450) $116.83 NEW IN STOCK
Turbine Wheel	408493-0015 (6N8486)(408493-0008)(Ind. 79. mm, Exd. 86.04 mm, 11 Blades) $393.76 NEW IN STOCK
Comp. Wheel	410913-0001 (1W1603)(Ind. 65.2 mm, Exd. 94. mm, Trm 48, 6+6 Blades, Billet) $186.90 NEW IN STOCK
Back plate	408487-0017 (408487-0021)(1W1610, 8N0819, 331640848721) $205.82 NEW IN STOCK
Heat shield Number	407657-0004 (409794-0000, 409794-0001, 9N2037, 9N3701, 8925757)(1101680340, 2030016145) $22.00 NEW IN STOCK
Repair Kit	468103-0000 (312325, 468173-0000, 3545824, 2W0715)(1101280750, 5000010008) $97.20 NEW IN STOCK
Turbine Housing (Water Cooled)	409133-0141 (6N9906) $1650.97
Compressor Cover	407009-0142 (1W1602) $389.52
Turbine Housing AR	1.03
Gasket oil inlet	210023 $4.48
Gasket (oil outlet)	210021 (148062, 311496) $4.48
Manufacturer	Honeywell-Garrett

Applications

Caterpillar Marine with 3304 Engine

Caterpillar Earth Mover with with 3406 SITASCAC GS Engine
