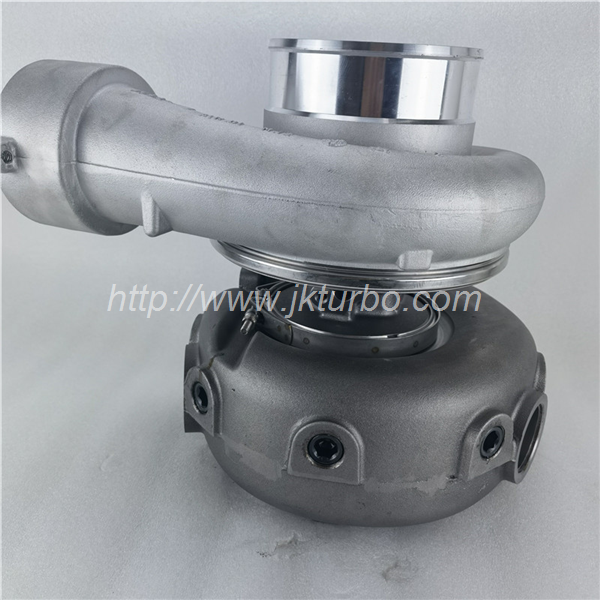

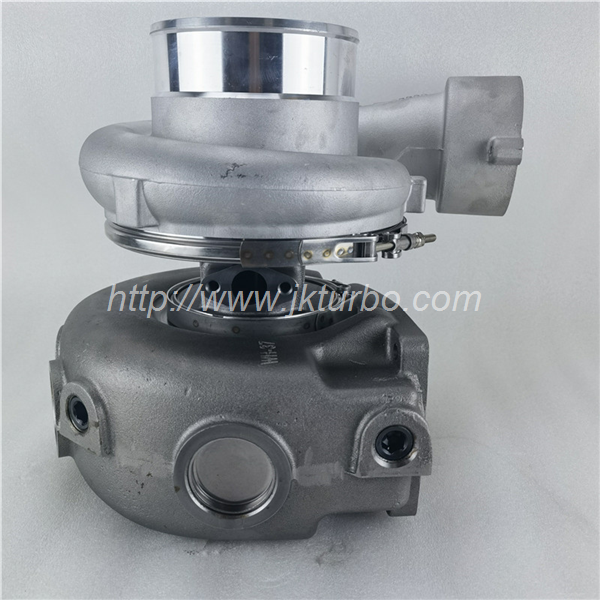

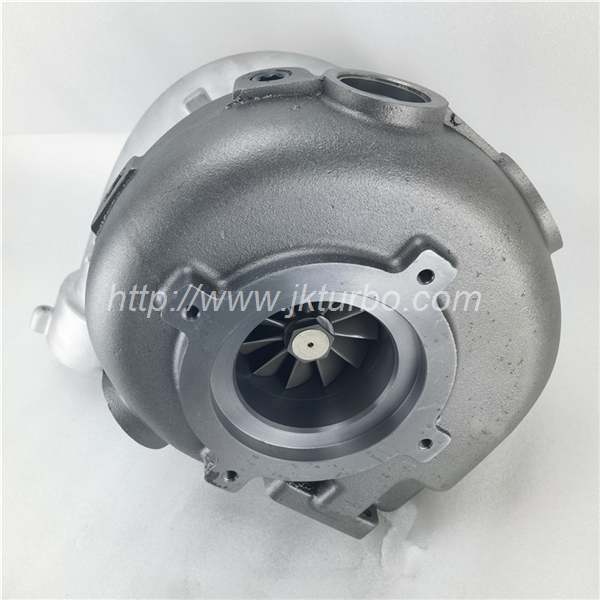

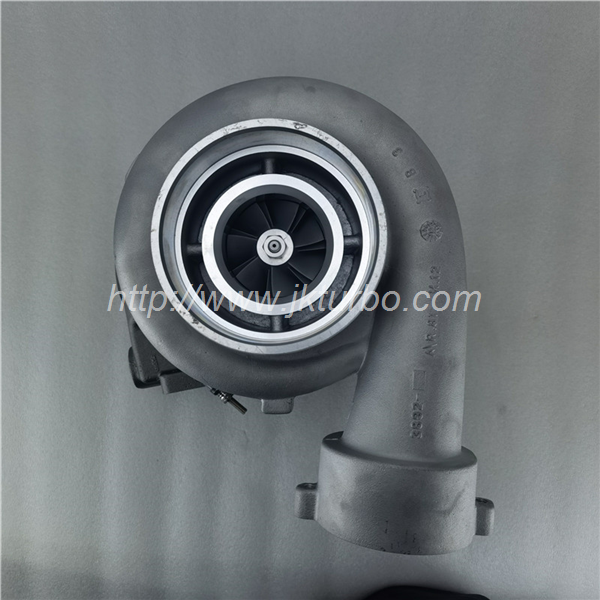

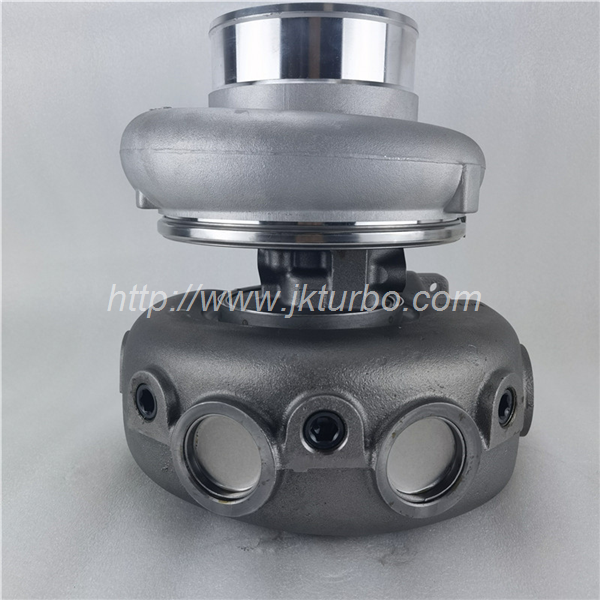

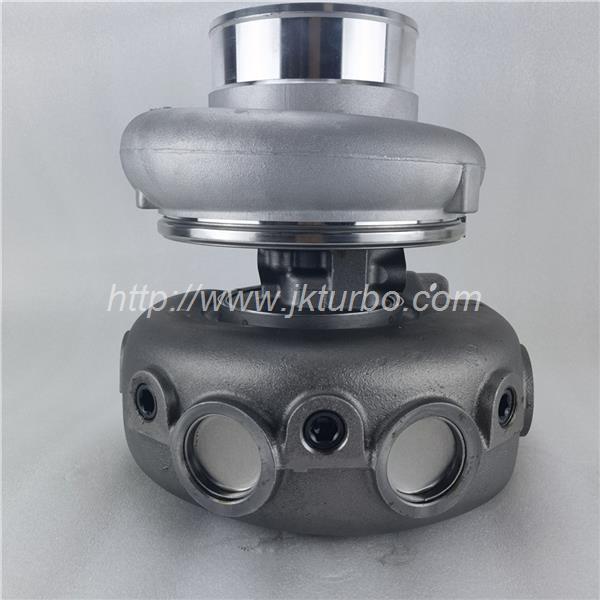

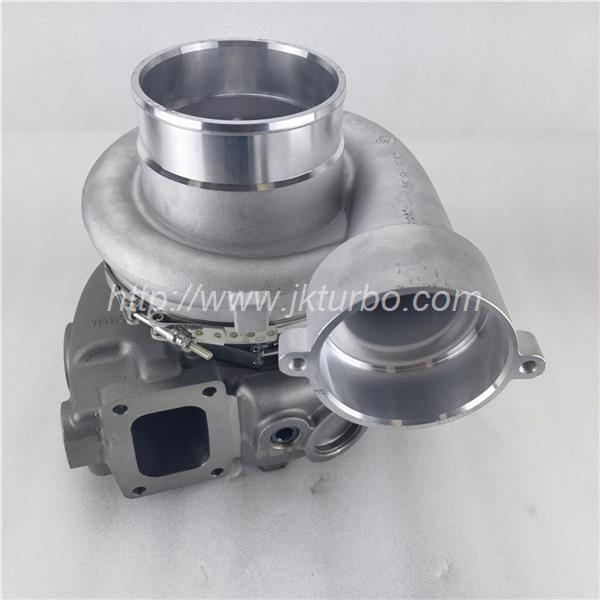

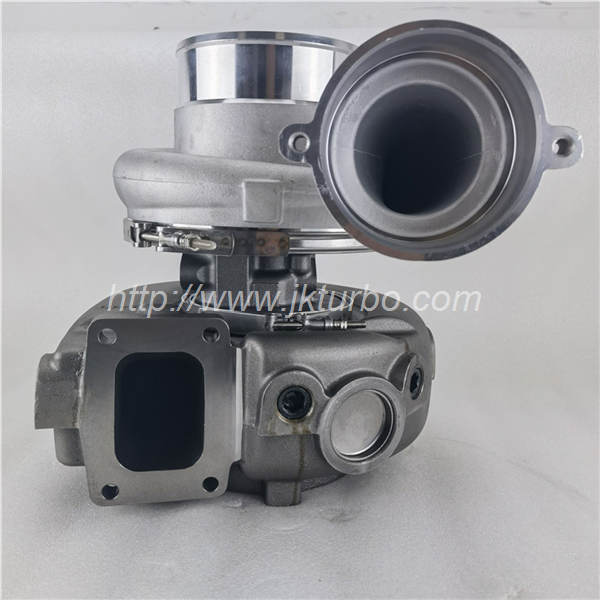

Turbo charger 290-1638 2901638 332-3935 3323935 for Ship with 3406E C30 C32 Engine

UTW8336 Turbo 471095-0001 471095-5001S 471095-0001 471095-1 471095-0006 471095-0008 471095-0010 for Caterpillar Ship with 3406E C30 C32 Engine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	471095-5001S
Previous Version	471095-0001, 471095-1, 471095-0006, 471095-0008, 471095-0010
OE number	10R8236, 130-9725, 1309725, 223-4345, 2234345, 290-1638, 2901638, 332-3935, 3323935
Description	Ship, Marine
CHRA	449530-0015 (449530-5015S, 770926-0001, 770926-0014)(0R7083, 10R-8230, 10R8230, 130-9726, 1309726, 287-7211, 2877211, 322-9539, 3229539) $1828.40 NEW IN STOCK
Turbo Model	UTW8336
Prefix	B2C, RNC, RND, RNE, RNF, RNR, RNX, RNY, RNZ, RSD, RTK, RXB, SDN, SLT, T3T, CLX, RLA, 9WR
Engine	3408E, C15, C30, C32
Engine Marine	3406E, C30, C32
Engine Manufacturer	Caterpillar
Displacement	14600 ccm, 6 Cylinders
KW	588/800 HP
Fuel	Diesel
RPM	2300
S/N	RXB1-UP, RNC1-UP, RNC1-2203
Angle β (turbine housing)	170°
Angle β (turbine housing)	31°
Bearing Housing	449072-0001 (Oil Cooled) $252.10 NEW IN STOCK
Turbine Wheel	449587-0001 (Ind. 111.45 mm, Exd. 97.1 mm, 11 Blades) $242.30 NEW IN STOCK
Comp. Wheel	441831-0016 $254.15 NEW IN STOCK
Back plate	442732-0005 (442752-0001) $48.00 NEW IN STOCK
Heat shield Number	409794-0002 (407657-0008)(4P6527) $49.72 NEW IN STOCK
Repair Kit	711494-0001 (468267-0010)(176-4259, 125-5375)(1101085750) $188.40 NEW IN STOCK
Turbine Housing (Water Cooled)	409339-0105 (6N9908, 23501604) $2001.20 NEW IN STOCK
Compressor Cover	447992-0052 (223-4293) $773.31
Turbine Housing AR	1.19
Plug-Cup (Standard)	3B0645 $3.87
Plug-Cup (Standard)	4N0932 $5.96
PLUG-CUP (Optional)	3P1896 $4.89
Plug-Cup	1006816 $5.43
Gasket (turbine inlet)	409038-0001 (210835-0000, 9749, 7M7273, 7H1558, 8N2835) $13.20
Gasket oil inlet	129119 (201049, 210019-0000, 409266-0003, 409266-0004) $4.22
Gasket (oil outlet)	210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
LISTED	$5963.21
Manufacturer	Honeywell-Garrett

Applications

Caterpillar Ship with 3406E, C30, C32 Engine
