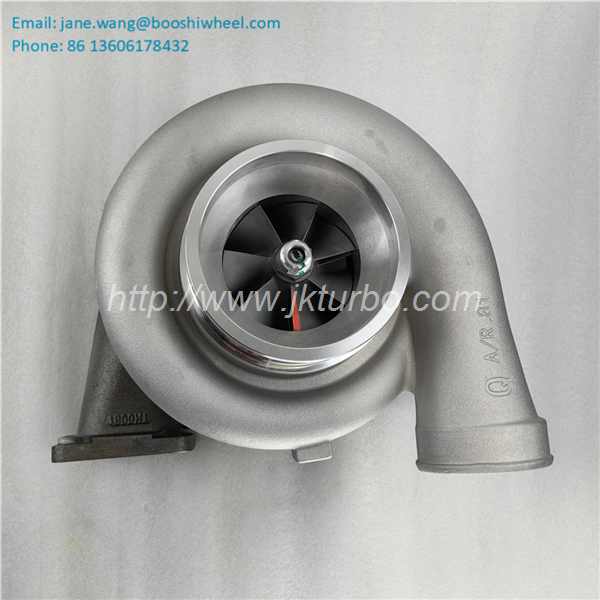

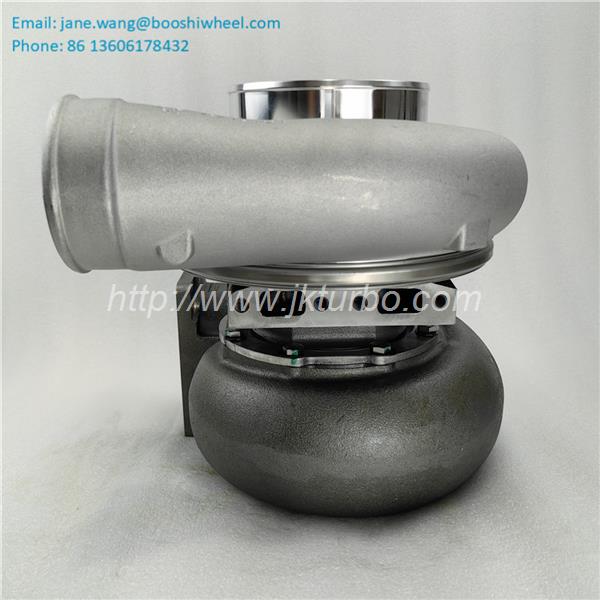

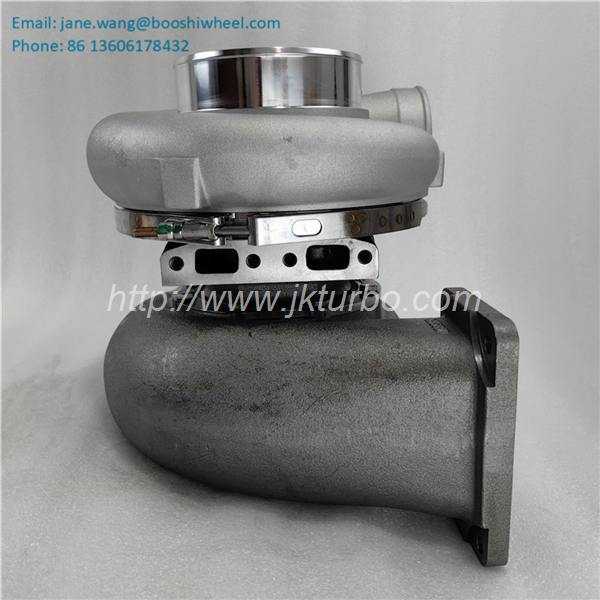

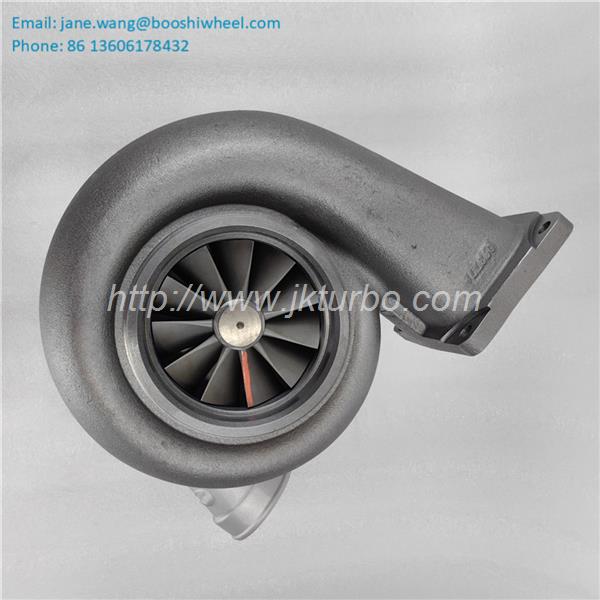

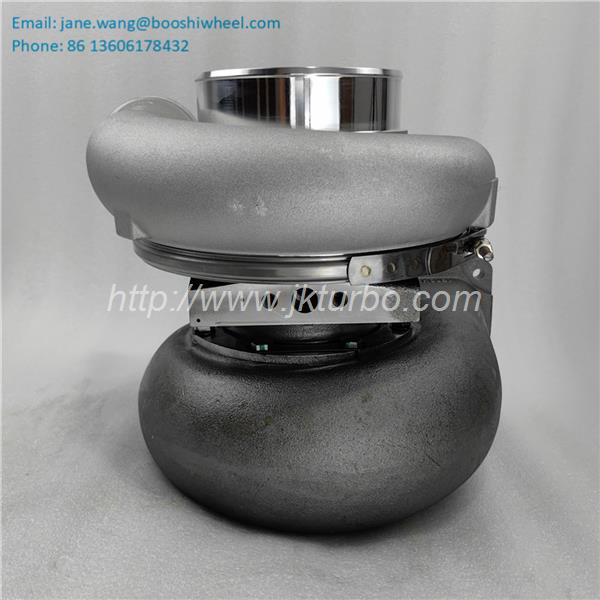

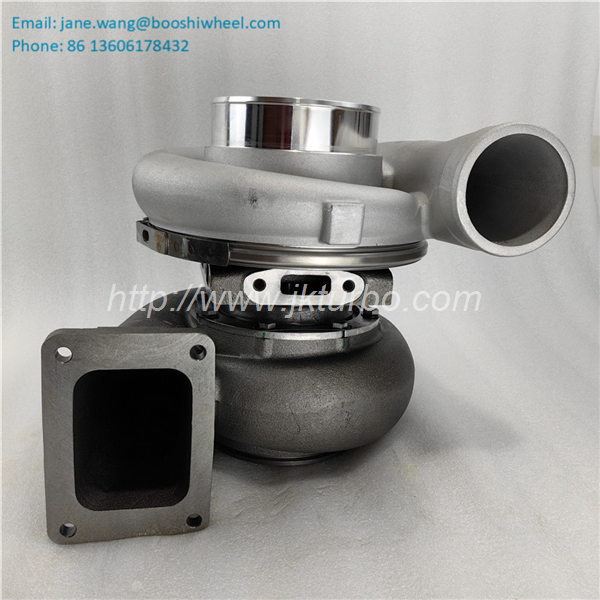

ULT9406 Turbocharger 704837-0006 704837-5006S 704837-0005 704837-5 211896B for Waukesha Industrial Gen Set With F3524GSI Engine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	704837-5006S
Previous Version	704837-0005, 704837-5
OE Number	211896B
Description	Industrial Gen Set
CHRA	452669-0007 (452669-9007S, 452669-5007S) $1,315.00 NEW IN STOCK, MADE IN USA
Turbo Model	UTL9406
Fuel	Diesel
Bearing Housing	451861-0002 (Water-Cooled) $528.24 NEW IN STOCK
Turbine Wheel	451882-0004 (Ind. 129. mm, Exd. 111.6 mm, 11 Blades) $831.84 NEW IN STOCK
Comp. Wheel	451883-0010 (Ind. 88.6 mm, Exd. 140.45 mm, 7+7 Blades, Superback) $429.26 NEW IN STOCK
Back plate	452668-0001 $147.33 NEW IN STOCK, MADE IN USA
Repair Kit	705731-0001 $189.00 NEW IN STOCK
Turbine Housing	409688-0031 NEW IN STOCK
Compressor Cover	443568-0028 $398.06 NEW IN STOCK
Gasket (turbine inlet)	409038-0001 (409038-0000, 1S4295, 210835-0000, 9749, 132040, 202873, 205396, 3500683, 210017-0000)(1900000003) $14.02
Gasket (oil outlet)	210172 (Paper)
Gasket oil inlet	210161 (Paper)
Gasket (water inlet and outlet)	210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(1900000027) $4.32
Replaced by	704837-0008
Manufacturer	Honeywell-Garrett

Applications

Waukesha Industrial Gen Set With F3524GSI Engine
