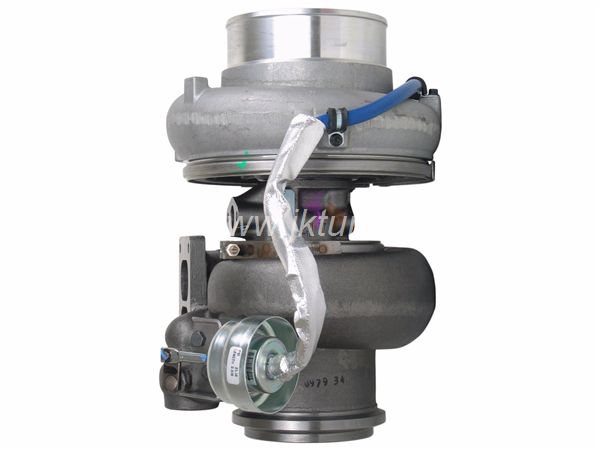

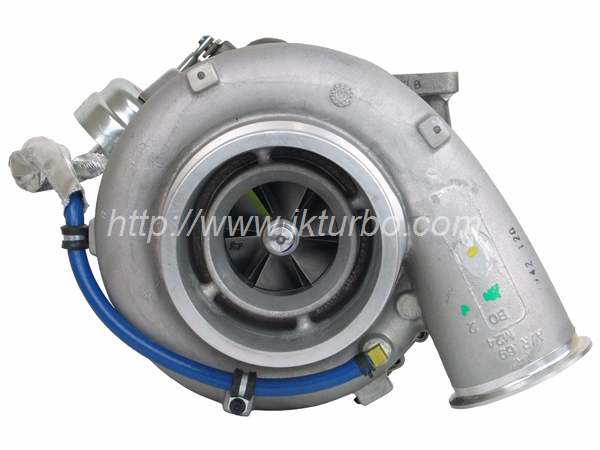

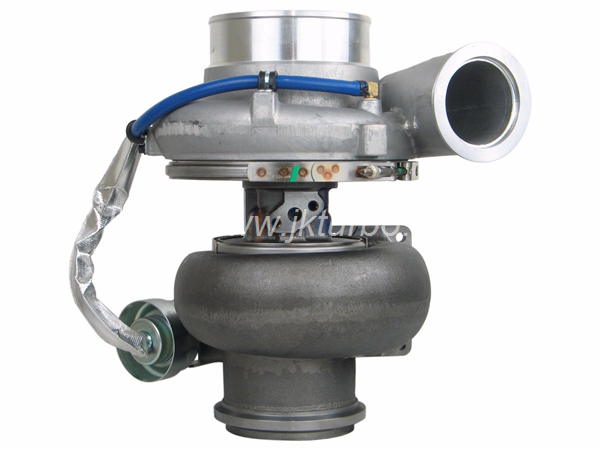

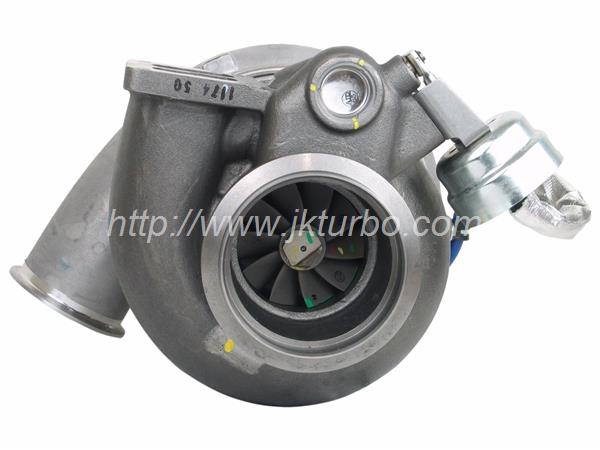

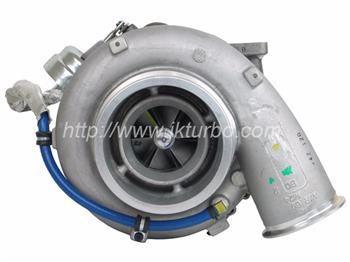

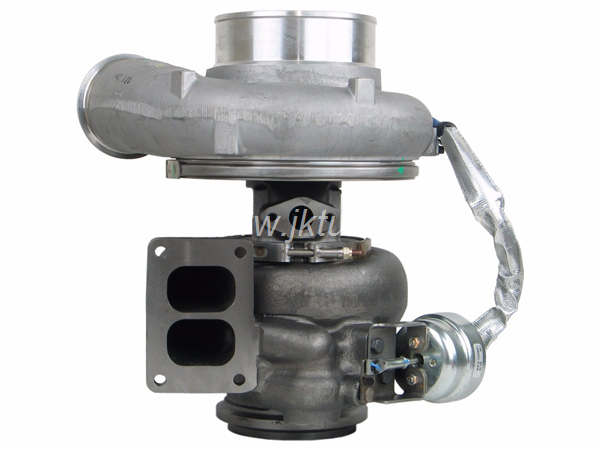

GTA5008BS turbo 739558-0002, 739558-5002S, 750525-0010 for cat c15 engine

GTA5008BS TURBO C15 Engine 750058-5001S 750058-5001 239-9988 2399988 362085 2514880

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	750058-5001S
Previous Version	750058-0001, 750058-9001, 750058-1,732430-5003S, 739558-0002, 739558-5002S, 750525-0010
OE Number	239-9988, 2399988, CH1-1946, CH11946, 284-2711, 2842711, 2399988, 10R2301, 252-0633, 2520633, 274-6295, 2746295, 274-6296, 2746296
Description	Industrial RM-500 Reclaimer Mixer
Turbo Model	GTA5008, GTA5008BS
CHRA	712371-0204 (712371-0019, 712371-5117S, 712371-0117, 712371-117, 0R-7856, 0R7856, 10R-2623, 10R2623, 194-7919, 1947919, 255-5477, 2555477) $1,281.78 NEW IN STOCK
Engine	Caterpillar C15, ASW00001-UP
Engine Manufacturer	Caterpillar
Displacement	15.0L, 15000 ccm, 6 CYL
Prefix	05A, 19G, 47M, 53K, BZZ, DBB, DXB, MSE, DBC ,DBD, DBZ, 24W, 25W, 26W, 27W, 71W, 6PR, 7KR, 86Z, 87Z, GER, W1B, W1C, W1E, W1F, JDK, JDY, JRE, MCW, ASW, 99Z, MGC, PBN, PDM, TZM,
KW	505
RPM Max	1500
Torque	3207 Nm
Fuel	Diesel
Machine Engine	C15
Industrial Engine	C15
Petroleum Products	C15, TH35-C15I, TH35-E81
Road Reclaimer	RM-500
S/N	LHX1-UP, JRE1-UP, CYY00001-UP, C5H00001-UP, C5L00001-UP, C5E00001-UP, X4R00001-UP
Bearing Housing	706666-0004 (Oil Cooled) $108.00 NEW IN STOCK
Turbine Wheel	451938-0001 (Ind. 90.67 mm, Exd. 99.2 mm, Trm 67, 10 Blades, Boreless) $530.66 NEW IN STOCK
Comp. Wheel	704746-0009 (705319-0002)(Ind. 78.6 mm, Exd. 108.0 mm, Trm 2.7, 6+6 Blades, Superback) $257.70 NEW IN STOCK
Back plate	706668-0019 $126.39 NEW IN STOCK
Heat shield Number	707843-0001 $22.59 NEW IN STOCK
Repair Kit	468267-0011 (1102050750) $180.98 NEW IN STOCK
Turbine Housing AR	1.41
Gasket Kit	468190-0000 (1900120791, 118099-0000) $59.07
Gasket (turbine inlet)	132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003) $14.21
Gasket oil inlet	129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900) $8.40
Gasket (turbine inlet)	129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38 $8.22
NOTE	Partially restricted
Manufacturer	Honeywell-Garrett

Applications

Caterpillar Industrial Engine with C15 Engine
