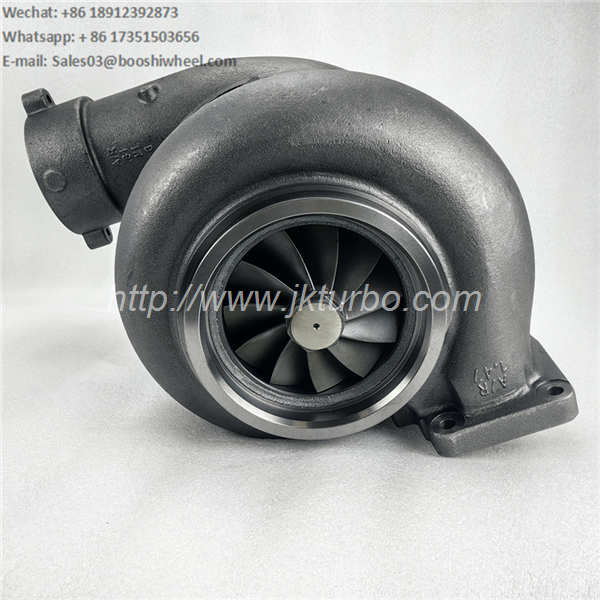

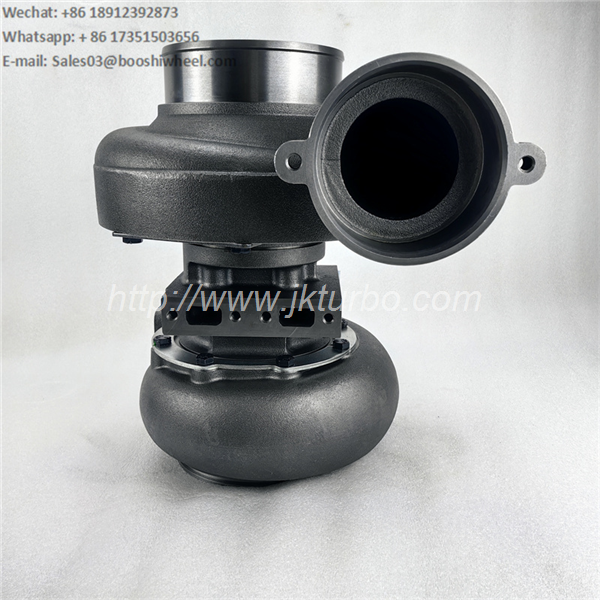

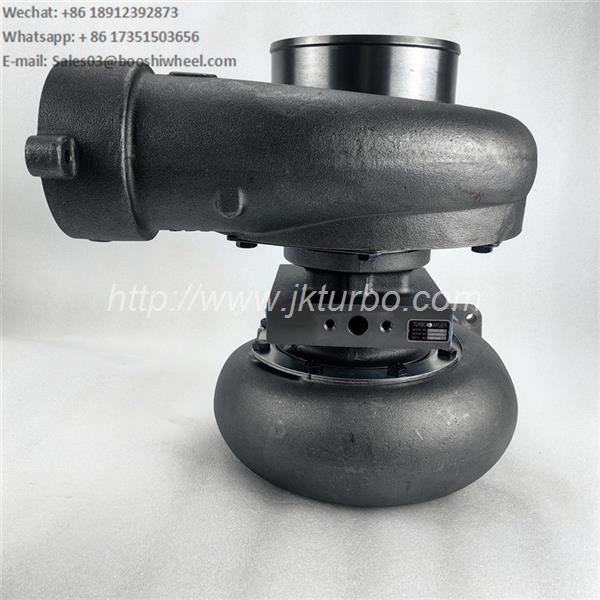

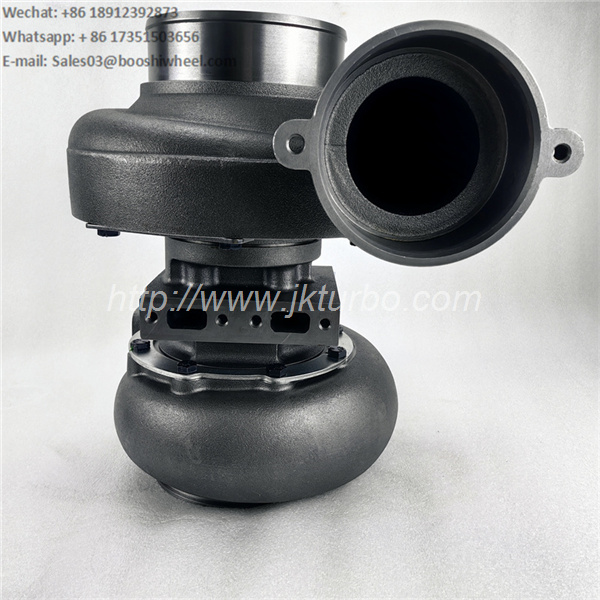

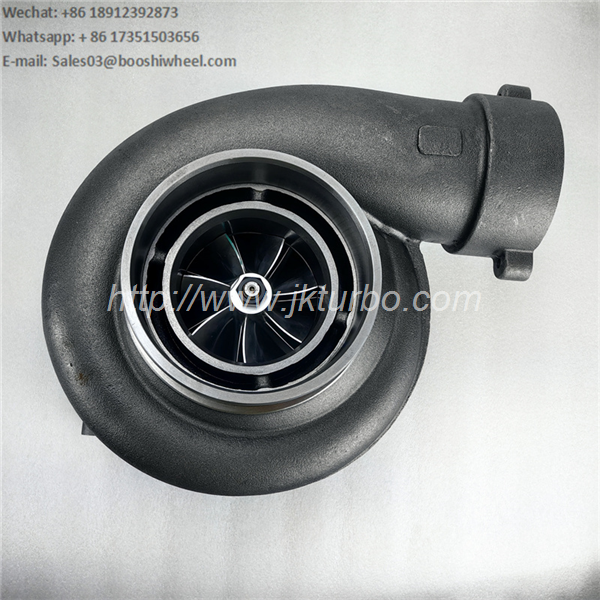

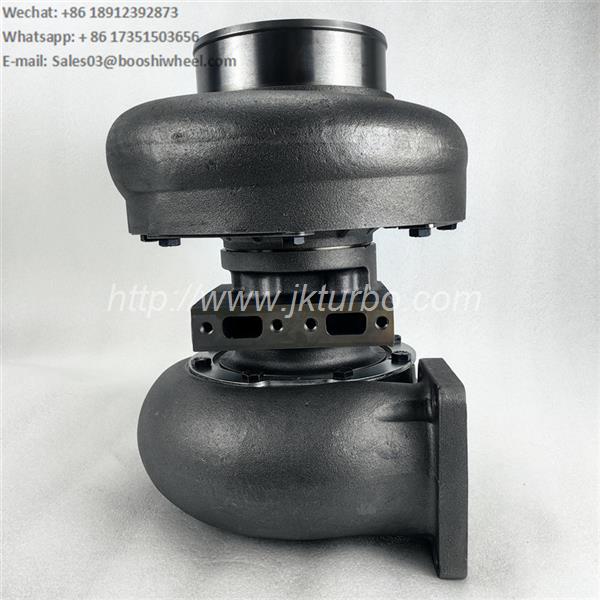

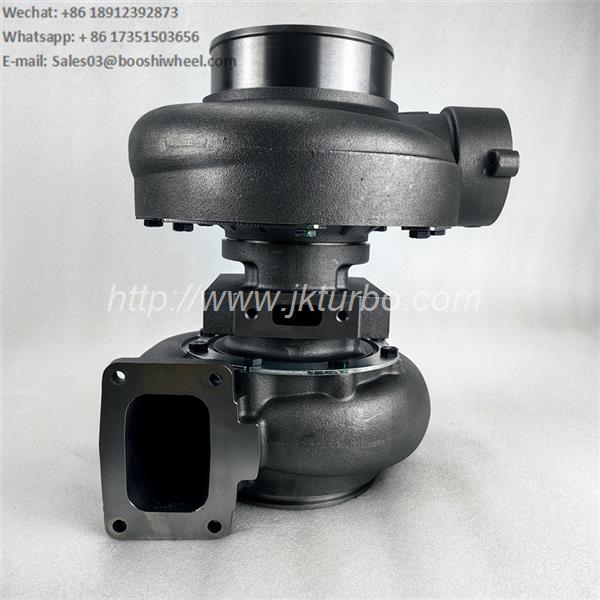

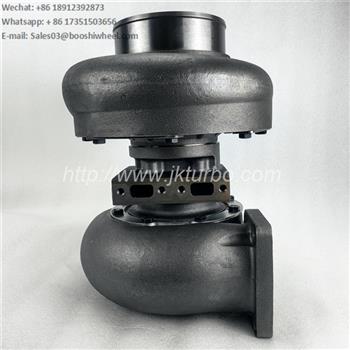

GT6041BL turbocharger OR7430 703224-5012S 703224-0012 703224-12 1884630 turbo for Marine 3512B engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	703224-5012S
Previous Version	703224-0012, 703224-12
OE number	188-4630, 1884630
Description	Marine Auxiliary Engine
CHRA	452705-0026 (452705-5026S, 10R2342, 10R-2342, 1855863, 919-2438, 9192438) $5795.29 IN STOCK
Turbo Model	GT6041BL
Engine	3512B
Displacement	51.8L, 51800 ccm, 12V Cylinders
Marine Engine	3512B, 3512B
Fuel	Diesel
S/N	S2L1-680, S2H1-314, 8EM336-561, 4TN307-867, 4TN00001-UP, 8EM00001-UP, S2H00001-UP, S2L00001-UP
Angle α (compressor housing)	278°
Angle β (turbine housing)	248°
Bearing Housing	451488-0001 (Water Cooled) $1291.74 NEW IN STOCK
Turbine Wheel	452700-0001 (Ind. 113. mm, Exd. 129.50 mm, 10 Blades, Trm 84, A/R 1.25) $1,500.00 NEW IN STOCK

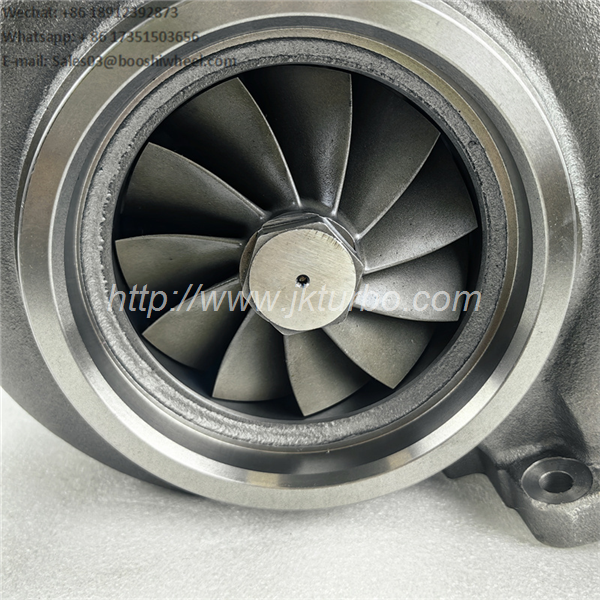

Comp. Wheel	712853-0005 (Ind. 97.80 mm, Exd. 141.27 mm, Trm 8.75, 6+6, Boreless-1/2-13G-LHT) $598.61 NEW IN STOCK
Back plate	452903-0001 $441.04 NEW IN STOCK
Repair Kit	705731-0001 $189.00 NEW IN STOCK
Turbine Housing	701872-0112 (1747081, 2947492) $2142.61
Compressor Cover	451784-0070 (1805438) $1412.95
Gasket (turbine inlet)	409038-0001 (1215736, 210835-0000, 9749, 7M7273) $13.20
Gasket (turbine Outlet)	2071382 $17.61
NOTE	Partially Restricted
Manufacturer	Honeywell-Garrett

Applications：

Caterpillar Marine With 3512B Engine
