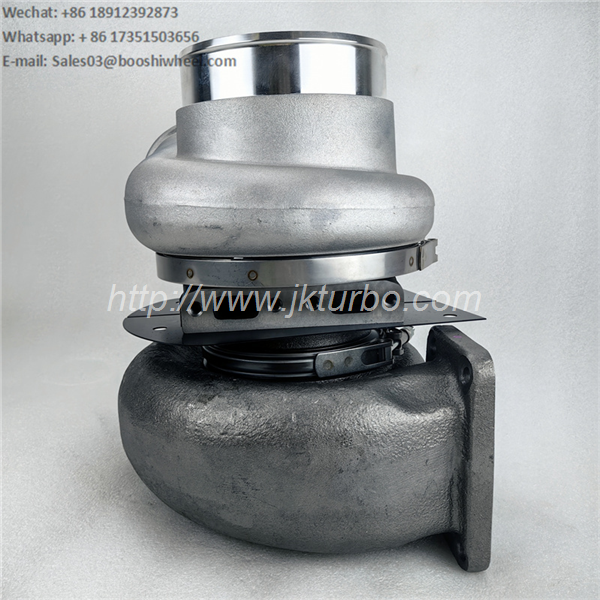

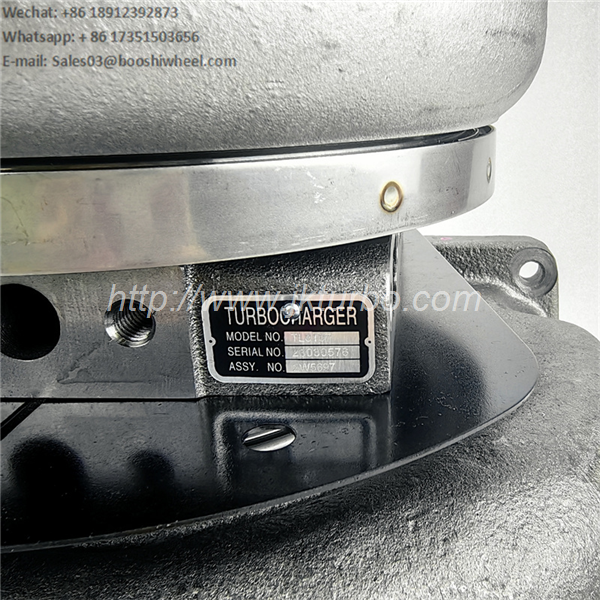

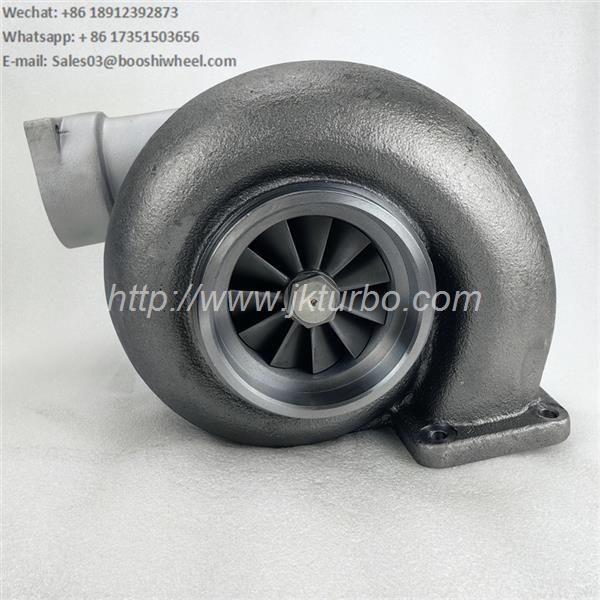

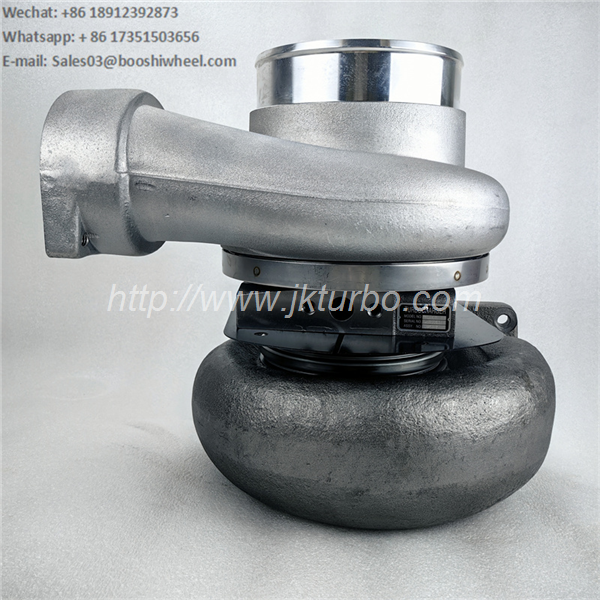

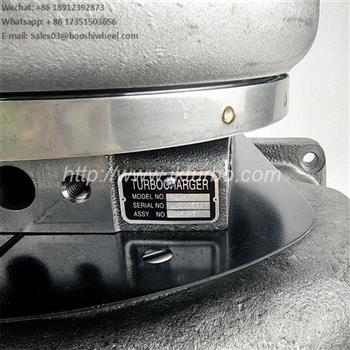

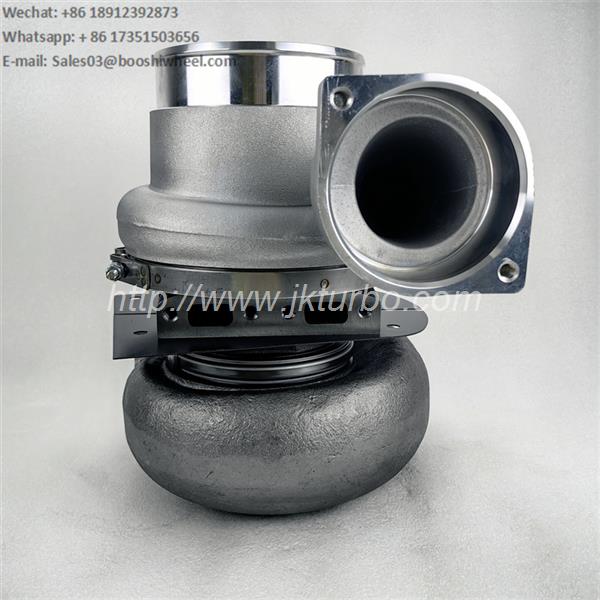

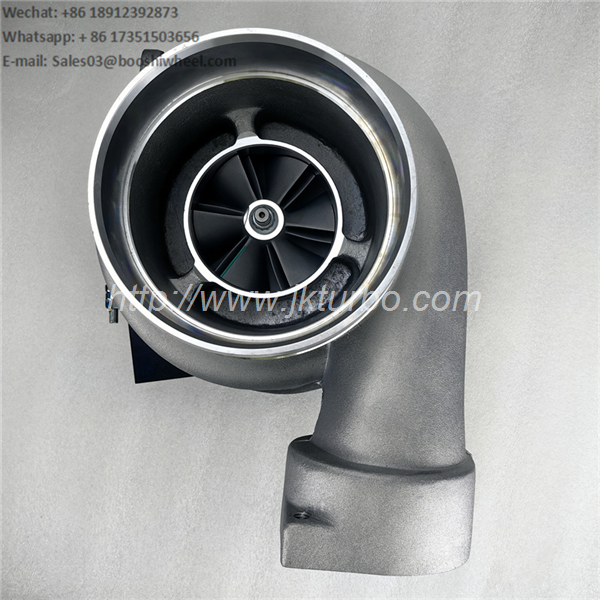

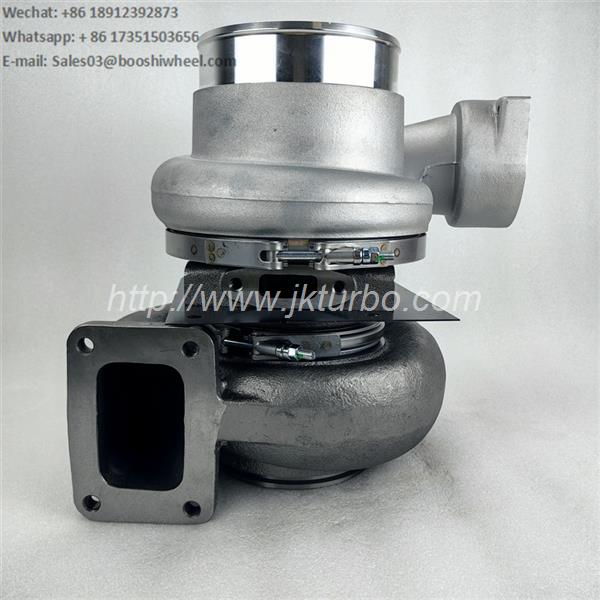

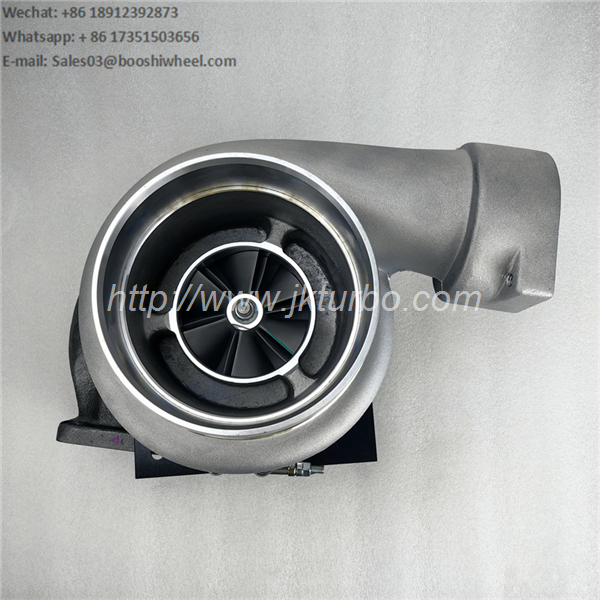

TL8107 turbocharger 0R5751 465502-5004S 465502-0004 465502-0003 turbo for Earth Moving 3412 engine D10N

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	465502-5004S
Previous Version	465502-0004, 465502-0003
OE number	2W5697, 0R5751
Description	Earth Moving
CHRA	447112-0004 (409844-0009, 409844-0003, 447112-5004S, 7N9399, 2619367, 0R5916) $1246.86 NEW IN STOCK
Turbo Model	TL8107
Prefix	2YD, 3SK, BGE, 14Y
Engine	3412
Displacement	27.0L, 27000 ccm, 12V Cylinders
Fuel	Diesel
Machine Engine	3412
Track Type Tractor	10SU, 10U, 9C, 9S, 9U, 10, 9, D10N, D9L, 58L, 59, 59L, 59N
S/N	73W4956-UP, 73W14800-UP
Bearing Housing	447159-0001 (0R5775, 7E9493, 7N8188)(Water Cooled) $283.41 NEW IN STOCK
Turbine Wheel	408492-0021 (408492-0014, 408492-0017, 408492-0028, 180011-0000)(Ind. 111.8 mm, Exd. 97.15 mm, Trm 16., 11 Blades)(9N2043, OR5395)(1101081435, 1100020188) $240.30 NEW IN STOCK
Comp. Wheel	409132-0002 (444827-0002, 180017-0000)(Ind. 85.4 mm, Exd. 106. mm, Trm 8.00, 6+6 Blades, Superback)(1101881400) $92.00 NEW IN STOCK
Back plate	408487-0013 (6N7962)(180043-0000)(1101680360, 1300016142) $182.76 NEW IN STOCK
Heat shield Number	407657-0004 (409794-0000)(9N2037, 9N3701, 8925757)(1101680340, 2030016145) $22.00 NEW IN STOCK
Repair Kit	468103-0000 (3545824)(2W0715)(1101678750, 5000010008) $97.20 NEW IN STOCK
Turbine Housing	441122-0047 (2W5698) $813.80
Compressor Cover	409168-0074 (6N7964) $386.61
Turbine Housing AR	1.84
Gasket (turbine inlet)	409038-0000 (9749, 1S4295, 202873, 205396, 3500683, 132040, 210017-0000)(1900000003) $13.20
Gasket (oil outlet)	210172 (Gasket paper) $2.00
Gasket (oil Inlet)	210161 (Gasket paper) $2.00
Listed	$3549.54
Manufacturer	Honeywell-Garrett

Applications：

Caterpillar Earth Moving 3412
