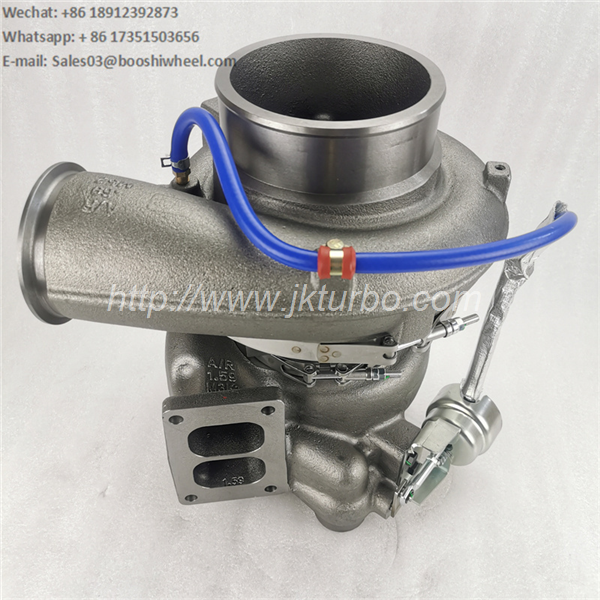

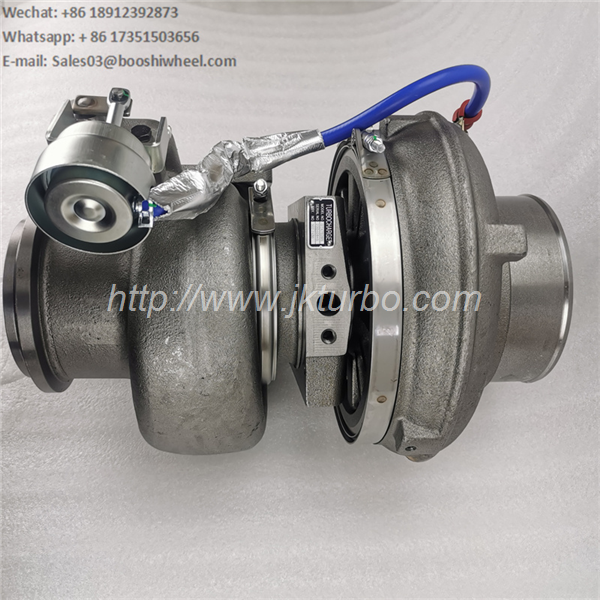

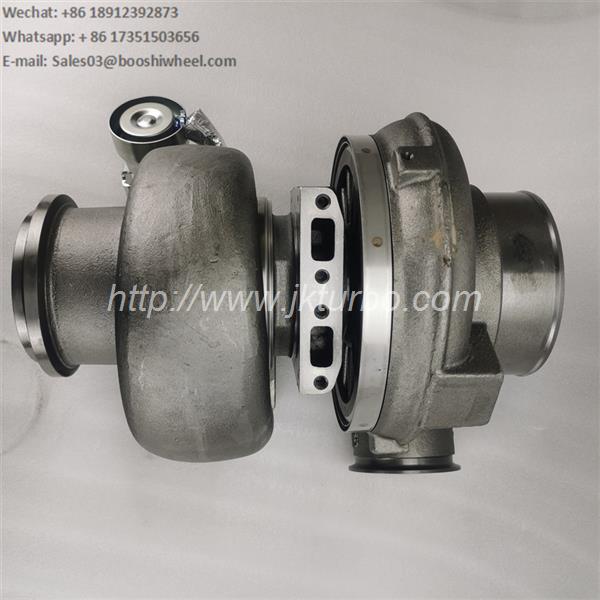

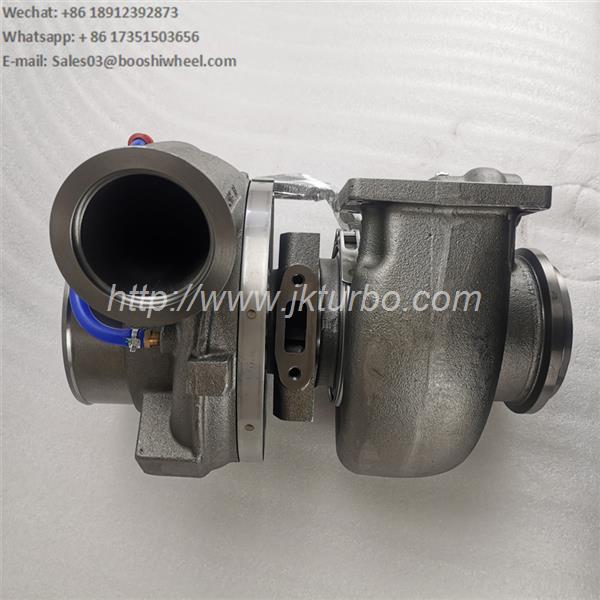

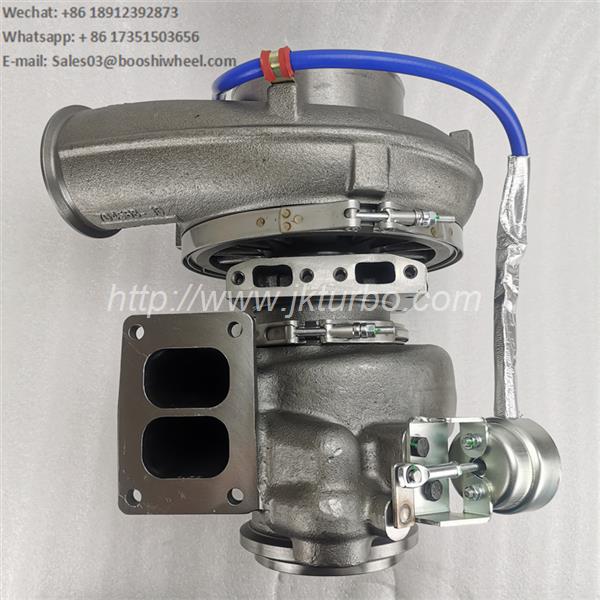

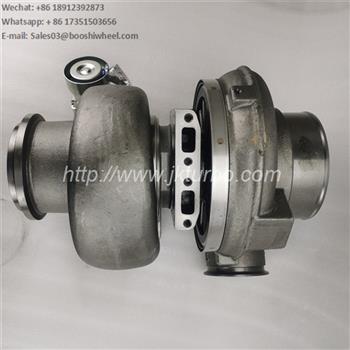

GT4702BS 302-7435 743002-0002 10R1927 262-7096 285-3253 turbocharger for Earth Moving 980H C15 Engine

GT4702BS 302-7435 743002-0002 10R1927 262-7096 285-3253 turbocharger for Earth Moving 980H C15 Engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	743002-5002S
Previous Version	743002-0002, 743002-2, 743002-0007
OE number	10R1927, 10R3199,170-025-0395, 262-7096, 2627096, 285-3253, 2853253
Description	Earth Moving Compactor, Engines and Power Units, Wheel Dozer
CHRA Garrett	710270-0072 (710270-5072S, 267-8584, 2678584)

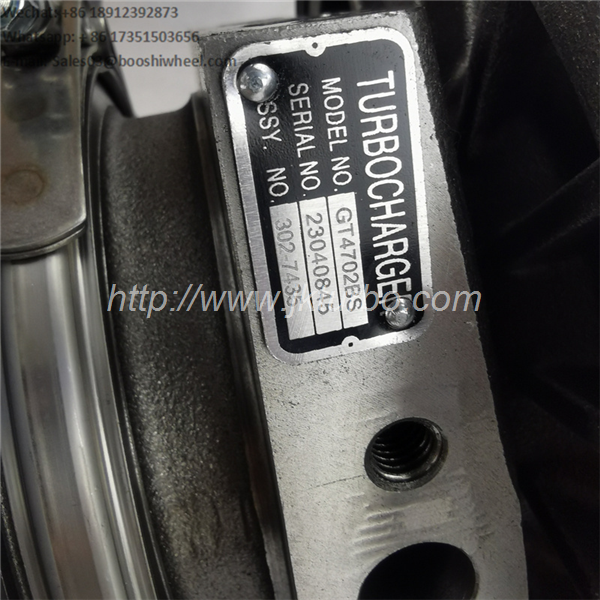

Turbo Model	GTA4702BL, GTA4702BLS
Earth Moving Compactor	826C, 825C
Machine Engine	C15
Wheel -Type Loader	980H
Wheel Dozer	824C
S/N	LHX1-UP, LHX15363-UP, CLAM 28253, NLK00001-UP, RCY00001-UP, ZLK00001-UP, DXR00001-UP, JLK00001-UP, JMS00001-UP, MHG00001-UP, 85X00001-UP, 2KR00001-UP, RCM00001-UP, TXG1-UP
Fuel	Diesel
Prefix	85X, 86X, 87X, 2KR, 2SR, A8J, JMS, KZL, MHG, MKP, P8B, 99Z, MGC
Engine	824C, 825C, 826C, 980G, 980H
Angle α (compressor housing)	15º
Angle β (turbine housing)	65º
Bearing Housing	708605-0001 (Oil Cooled)
Turbine Wheel	702892-0001 (Ind. 83.87 mm, Exd. 92.8 mm, 10 Blades, Boreless)

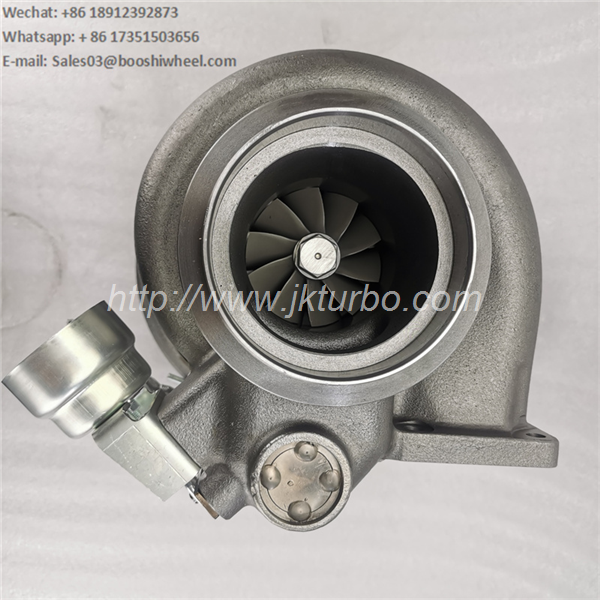

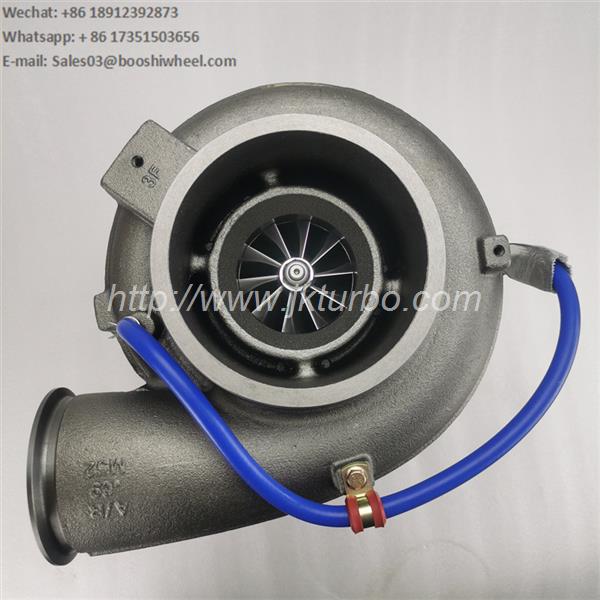

Comp. Wheel	726400-0003 (Ind. 76.45 mm, Exd. 102.26 mm, 6+6 Blades, Boreless, Superback)
Back plate	706668-0018 (408487-0003)
Heat shield Number	407778-0001 NEW IN STOCK
Repair Kit	709153-0001 (468267-0010)
Turbine Housing	740976-0002 (302-7435, 10R-8968)
Turbine Housing & W/G	740979-0006
Compressor Cover	447992-0086 (70569-0094)
Turbine Housing A/R	1.59
Actuator	452603-0051 (452603-0045)
Gasket ( turbine inlet)	409038-0000 (409038-0001, 210835-0000, 9749, 210017-0000)(7M7273, 305726, 1900000003, 3316409038, 1S4295, 8A0943)
Gasket oil inlet	210161 (Paper)
Gasket ( oil outlet	210172 (Paper)
Gasket water	210021 (409037-0000, 210021-0000, 311496, 413671-0000)(Paper)
Gasket Kit	215124
NOTE	Intercooler, Magnetic Shaft Nut

Applications：

turbocharger for Caterpillar Earth Moving with 980H, C15 Engine
