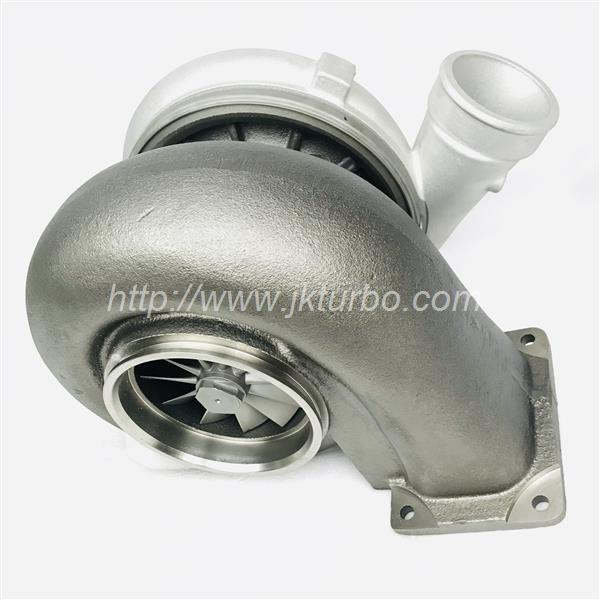

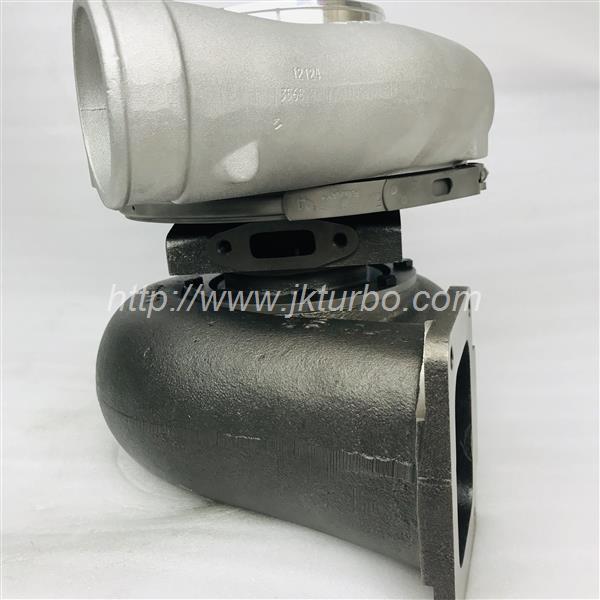

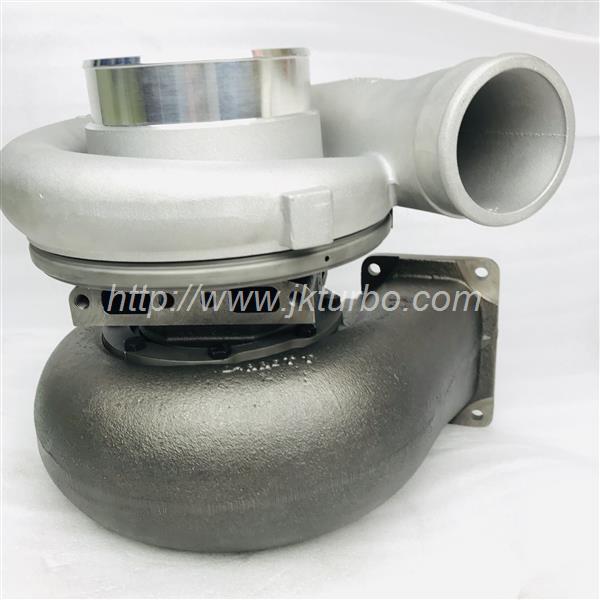

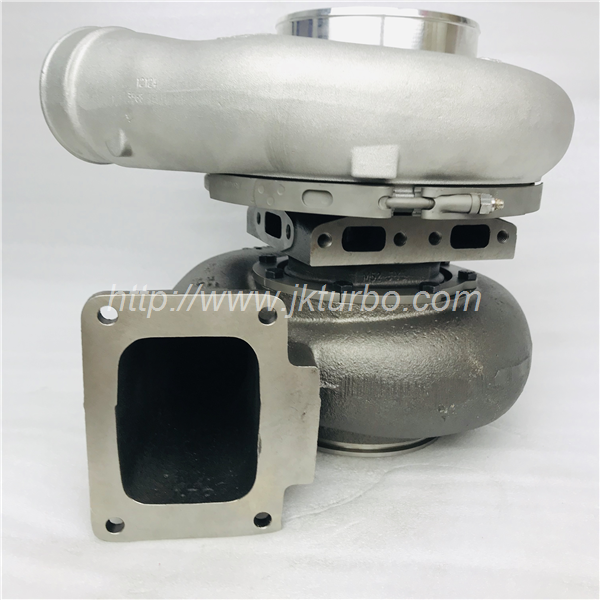

卡特Caterpillar TL9406 704837-0002 211896A 214007 704837-0004 涡轮增压器

Part Number 704837-5002S

Previous versions 704837-0002, 704837-0004

OE Number 211896.0, 211896, 214007

Description Industrial Caterpillar CV Off Highway

CHRA 452669-0006 (452669-5006)

Turbo Model UTL9406

Engine Model F3524GSI, L7044GSI, F3524, L7044GSI Engines Draw Thru

Fuel CNG (Compressed Natural Gas)

Bearing Housing (Water-Cooled) 451861-0002 (Water-Cooled)

Turbine Wheel 451882-0004 (Ind. 129. mm, Exd. 111.6 mm, 11 Blades)

Comp. Wheel 451883-0008 (Ind. 97.9 mm, Exd. 141.3 mm, 7+7 Blades, Superback)

Back plate 452668-0001

Repair Kit 705731-0001

Turbine Housing 409688-0033

Compressor Cover 432078-0001/432078-0004 NEW IN STOCK

Gasket (water inlet and outlet) 210021 (148062, 311496)

Replaced By 701100-0009

Manufacturer Honeywell-Garrett, USA

Applications

1999- Waukesha, Caterpillar Industrial Engine F3524GSI
