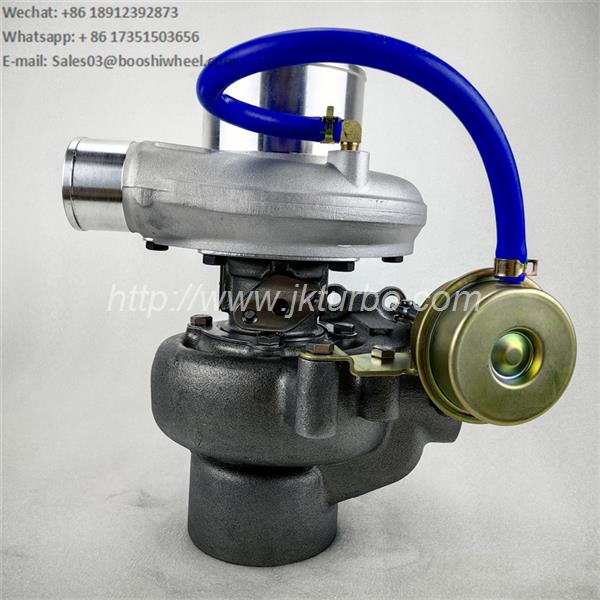

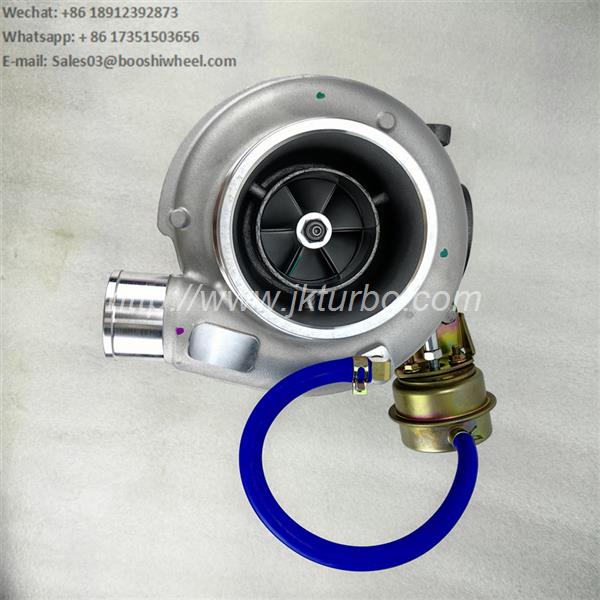

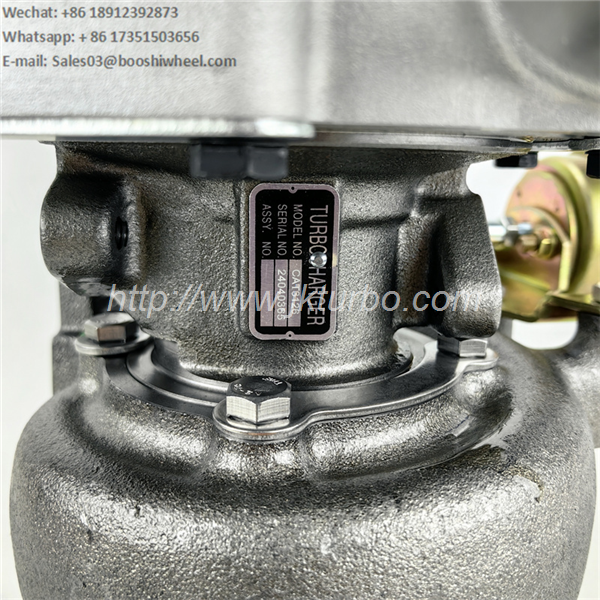

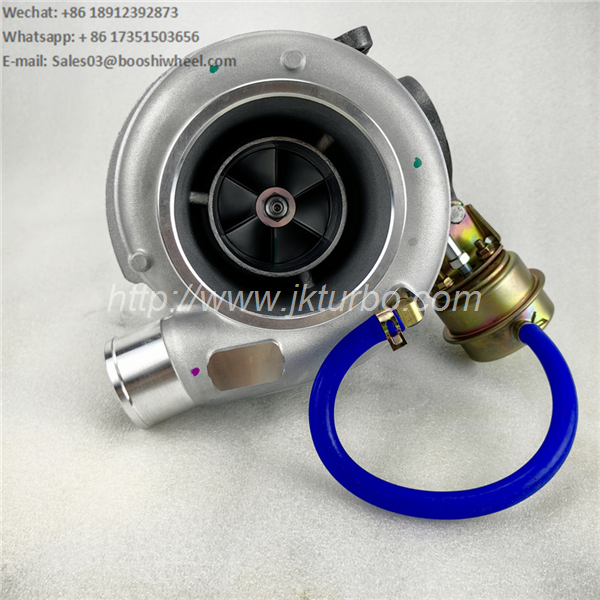

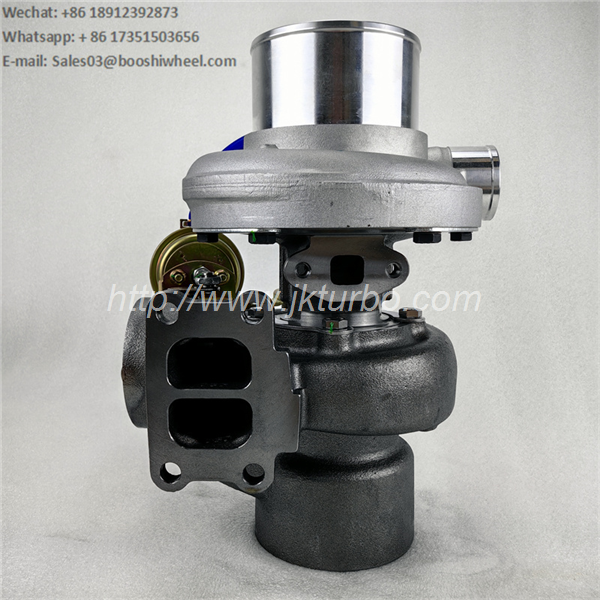

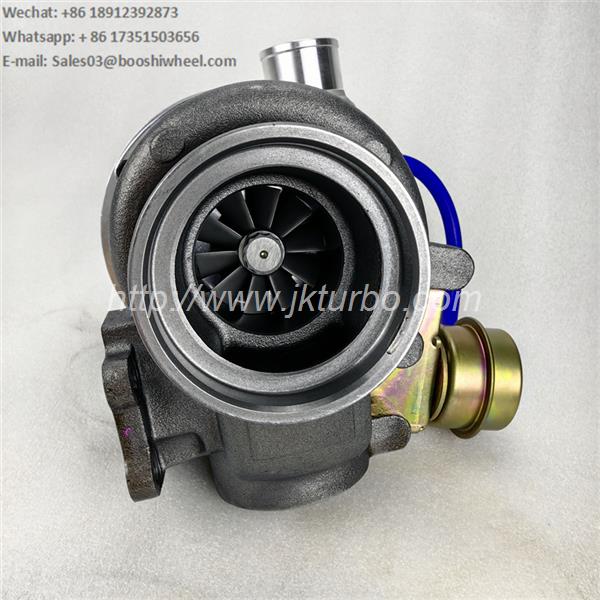

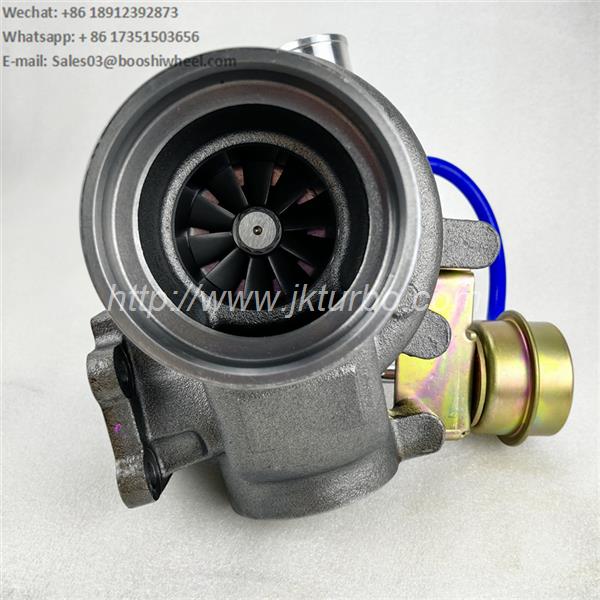

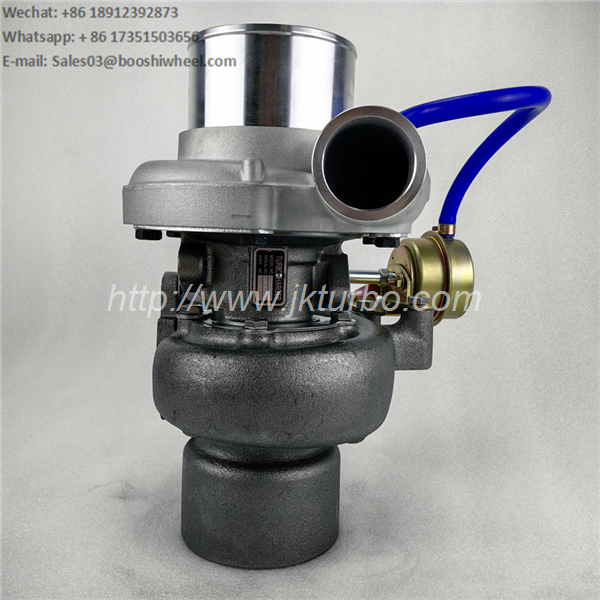

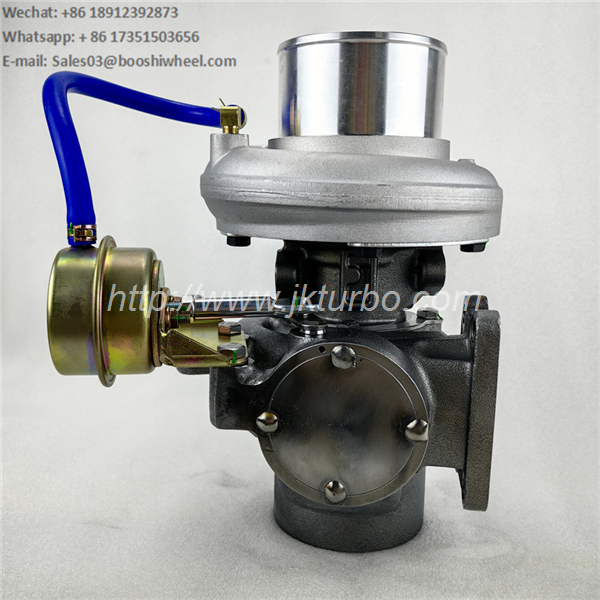

CAT3126 turbocharger S300W049 S200G062 173106 170001 157-4386 178478 173107 167864 198-1945 turbo for HEUI Engine

CAT3126 turbocharger S300W049 S200G062 173106 170001 157-4386 7c6342 Or6973 195-6029 10r9769 178478 173107 167864 198-1945 10r0364 turbo for HEUI Engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	170001
OE number	0R7122, 0R7212, 10R9769, 127-7077, 1277077, 143-1209, 1431209, 145-8884, 1458884, 157-4386, 1574386
Previous Version	168465, 168465R, 169489, 169489R, 169603, 169603R, 170001, 170001R, 179588, 179588R, 468465, 469489, 469603, 470001, 479588
Description	Genset, Marine, Searay Superabundance
Turbo Model	S300W049
Prefix	1SK, 2WG, 4KG, 4PG, 9ZR, CKK, 4FM, 9BM
KW	300 HP
RPM	2000
Fuel	Diesel
Engine Marine, industrial	3116, 3126 HEUI
S/N	1SK2248-UP, 1SK00001-UP, 2WG6416-UP, 4KG8041-9870, 1SK2248-UP, 4PG784-1890, 4PG1891-3047, 4PG3048-3492, 4PG3048-3492, 4PG4527-UP, 2WG1660-3182, 2WG3183-4162, 2WG4163-5871, 2WG5872-6114, 2WG6115-6229
Angle α (compressor housing)	307°
Angle β (turbine housing)	132°
Bearing Housing	169207 (169233)(Oil Cooled)
Turbine Wheel	169039 (156-0514, 1560514)(Ind. 74.24 mm, Exd. 64.59 mm, Trm 10.7, 11 Blades)
Comp. Wheel	170030 (169205)
Back plate	167543 (1253300300)
Heat shield Number	167550 (3519302)(1649415)(1152301340, 2030016087)
Repair Kit	318394 (169636, 169032)(1253300750, 5000030018)
Turbine Housing (Water Cooled)	169451 (135-2648)
Comp. Housing	170029 (171604)(1920953)
Turbine Housing AR	0.70
Gasket Kit	318418
Plug-Cup	4K0149
Manufacturer	Borg Warner - 3K - Schwitzer, BWTS USA

Applications

1996-12 Caterpillar Genset, Marine, Searay Sundancer With 3116, 3126 HEUI Engine
