cartridge for cummins ISC engine 3797542 379754200 3797542HX 4039980 4040648

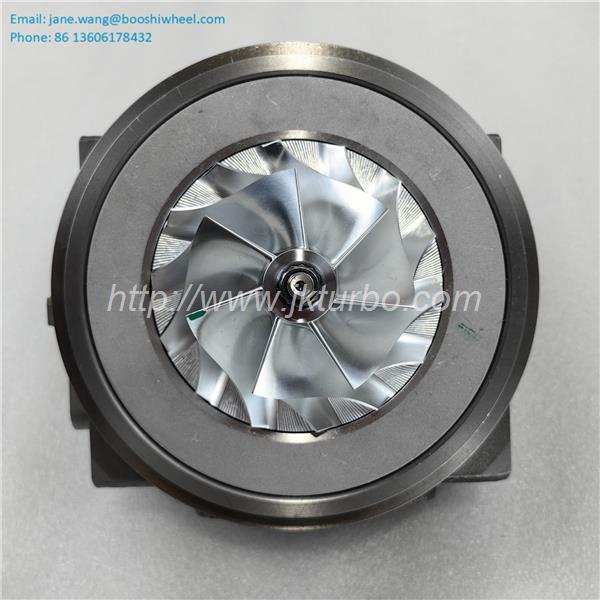

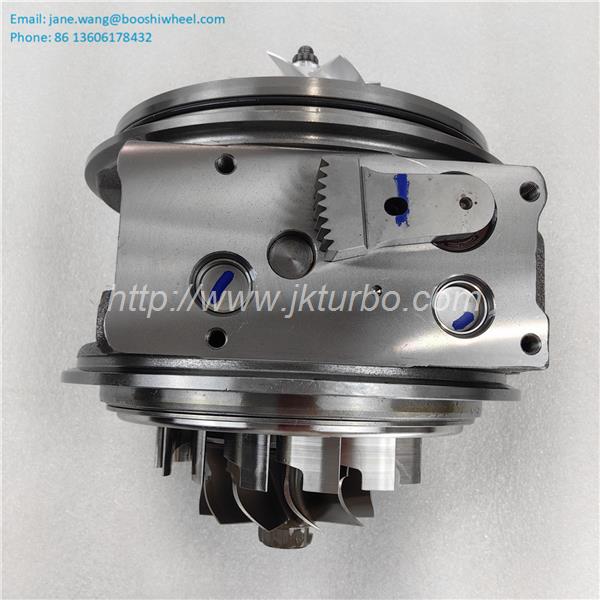

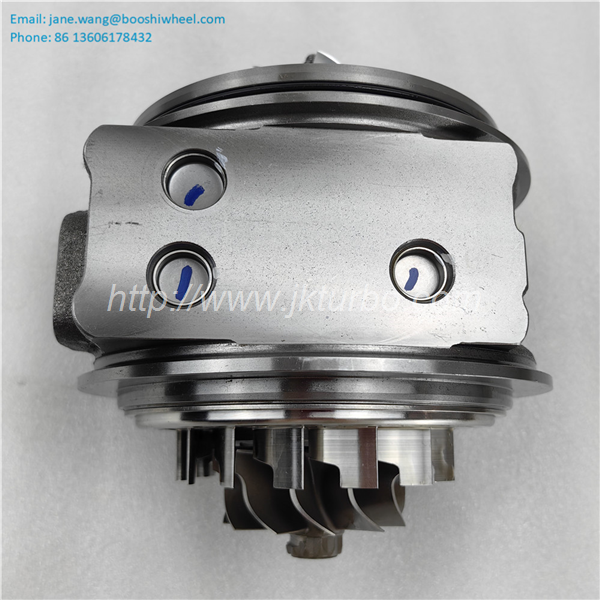

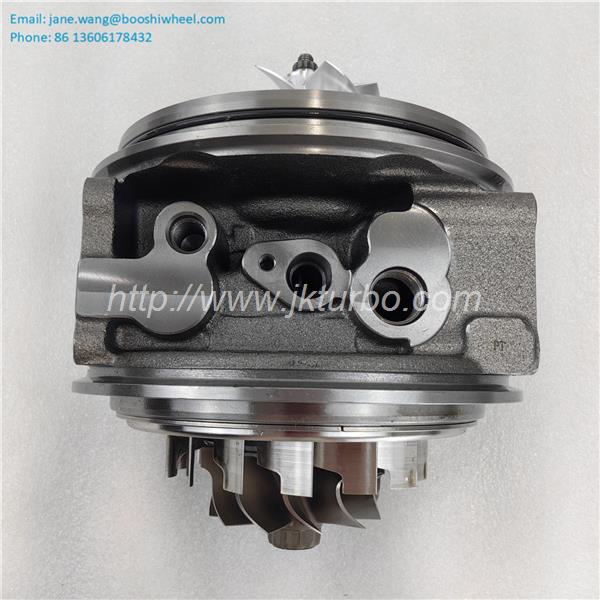

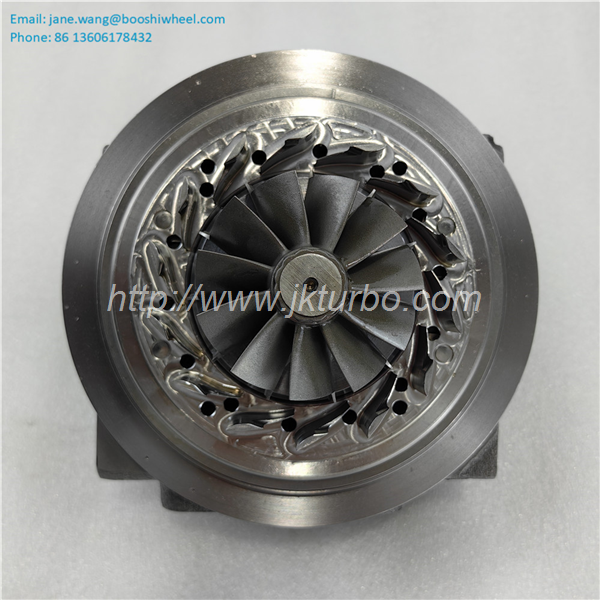

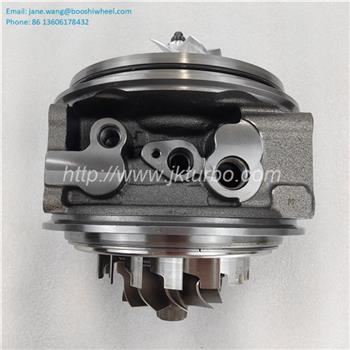

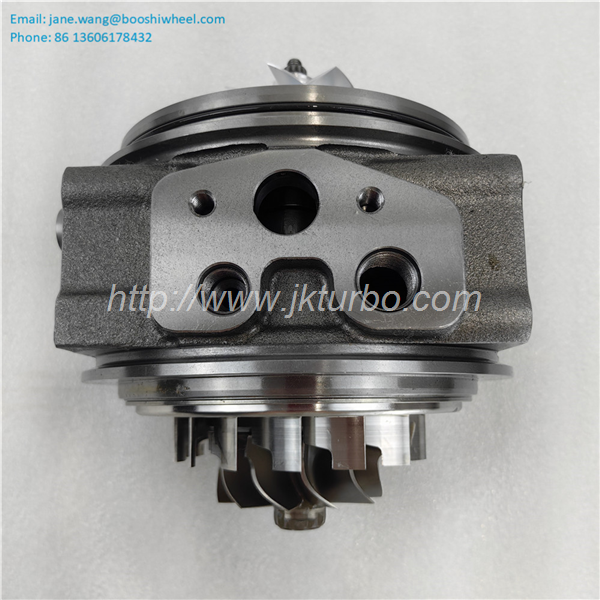

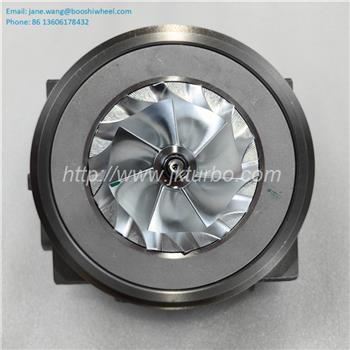

HE400VG Turbocharger cartridge 3776837 3776838 3776839 3792242 3792244 3792246 3792247 3792247NX

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	5350607
Previous Version	19700523D, 2836368, 2836369, 2836373, 2838786, 2838787, 2838788, 2838791, 2840539, 2840540, 2840541, 2840544, 2840545, 2840548, 2840549, 2840550, 2881791, 2881791NX, 2881791RX, 2881792, 2881792NX, 2881792RX, 2881793, 2881793NX, 3774353, 3774354, 3774355, 3774356, 3774358, 3774623, 3774624, 3774637, 3774638, 3774650, 3775131, 3775132, 3775141, 3775650, 3776837, 3776838, 3776839, 3792242, 3792244, 3792246, 3792247, 3792247NX, 3792247RX, 3792248, 3792250, 379225000HX, 3792250H, 3792250HX, 3792251, 3795128, 3795150, 3795151, 3795152, 3797541, 3797542, 379754200, 3797542HX, 4039980, 4040648, 4040649, 4040650, 4040651, 4042426, 4042428, 4042430, 4042432, 4044519, 4044520, 4045268, 4045269, 4046226, 4046227, 4309083, 4309083NX, 4309083RX, 4309124, 430912400, 4309124NX, 4309124RX, 4955428, 4955428NX, 4955429, 4955429NX, 4955582, 4956026, 4956026NX, 4956027, 4956027NX, 4956028
OE Number	4956C26, 4955428
Year	2006-14
Description	Industrial Crane
Manufacturer Part Number	5350526, 5350607, 5350627, 5350627NX, 5350627RX, 5350629, 5355262, 5355263, 5355264, 5355981NX, 5359981, 5359981RX, 5455669, 5456971, 545697100, 545697100H, 545697100HX, 5456971H, 5456971HX, 5457032, 5457032H, 5457032HX, 5457203, 5457203NX, 5457203RX, 5458510, 5458510NX, 5458510RX, 5458511, 5458511NX, 5458511RX
Turbo Model	HE451Ve, HE400VG
CHRA	N/A
Engine	ISC, ISL, B3, B4, ISM
Engine Manufacturer	Cummins
Displacement	320V
Fuel	Diesel
Angle α (compressor housing)	257º
Angle β (turbine housing)	158º
Turbine Wheel	2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades) NEW IN STOCK
Comp. Wheel	(Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback) NEW IN STOCK
Nozzle Ring Assemble	$340.00 NEW IN STOCK
Repair Kit	$124.00 NEW IN STOCK
Turbine Housing AR	VGT
Speed Sensor Kit	4034201H
Electronic Actuator	4034289H (12V) Reman $750.00 Exchange only
Electronic Actuator	4034290H (24V) Reman $750.00 Exchange only
Gasket (turbine inlet)	3088984 $14.02
Gasket Kit	3685535 $21.48
NOTE	Does not include actuator, Actuator it needs to be calibrated to the turbo
Manufacturer	Holset

Applications
2006-14 Cummins (CTT) Industrial Crane with ISC, ISL, B3, B4, ISM Engine
