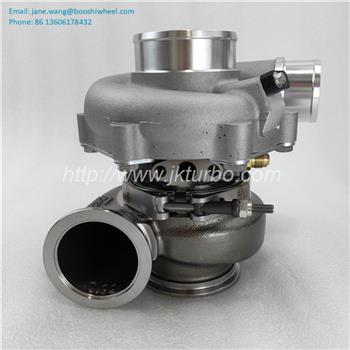

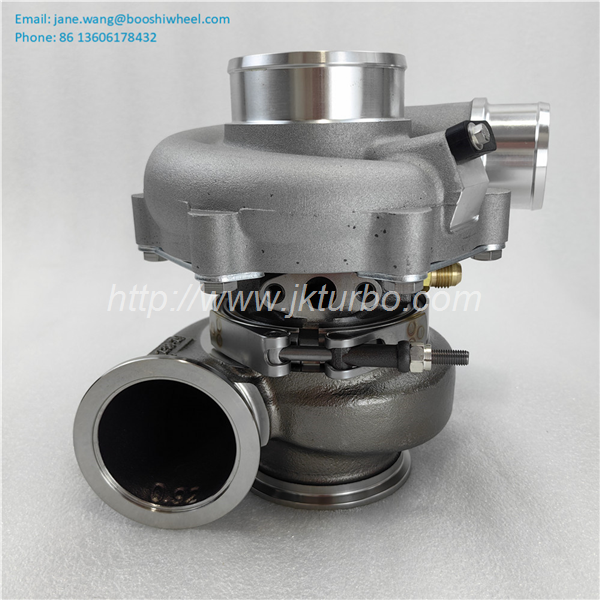

G25-550 858161-5002S Standard Rotation AR 0.92 Turbo 740902-0068 Ball Bearing

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Reference Data

G25-550	Compressor				Turbine
Inducer	Exducer	Trim	A/R	Inducer	Exducer	Trim
HP: 300-550 Disp: 1.4L-3.0L	48mm	60mm	65	.70	54mm	49mm	84
Turbo: Standard Rotation	PN		A/R	Inlet	Outlet	Wastegate	Divided
Assembled and calibrated with 0.5 bar actuator	877895-5001S		0.49	T25	V-Band	Internal	N
	877895-5003S		0.72	V-Band	V-Band	Internal	N
	877895-5004S		0.92	V-Band	V-Band	Internal	N
	Turbo: Reverse Rotation	PN		A/R	Inlet	Outlet	Wastegate	Divided
See note above	877895-5007S		0.72	V-Band	V-Band	Internal	N
	877895-5008S		0.92	V-Band	V-Band	Internal	N
	Turbine Kits Standard Rotation	PN		A/R	Inlet	Outlet	Wastegate	Divided
	Internal Wastegate Turbine Housing	740902-0076		0.72	V-Band	V-Band	Internal	N
740902-0077		0.92	V-Band	V-Band	Internal	N
740902-0080		0.49	T25	V-Band	Internal	N
Turbine Kits Reverse Rotation		PN		A/R	Inlet	Outlet	Wastegate	Divided
Internal Wastegate Turbine Housing		740902-0078		0.72	V-Band	V-Band	Internal	N
		740902-0079		0.92	V-Band	V-Band	Internal	N
	Supercore	PN
	Standard Rotation	858161-5002S
Reverse Rotation	871388-5001S
Turbine Kits Standard Rotation	PN		A/R	Inlet	Outlet	Wastegate	Divided
Free Float Turbine Housing	740902-0069		0.72	V-Band	V-Band	External	N
	740902-0068		0.92	V-Band	V-Band	External	N
	Turbine Kits Reverse Rotation	PN		A/R	Inlet	Outlet	Wastegate	Divided
	Free Float Turbine Housing	740902-0073		0.72	V-Band	V-Band	External	N
740902-0074		0.92	V-Band	V-Band	External	N
