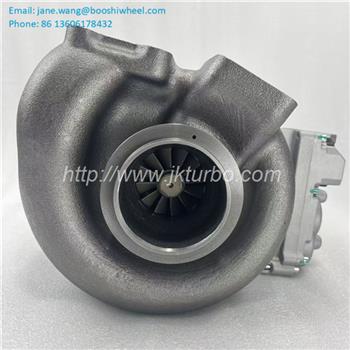

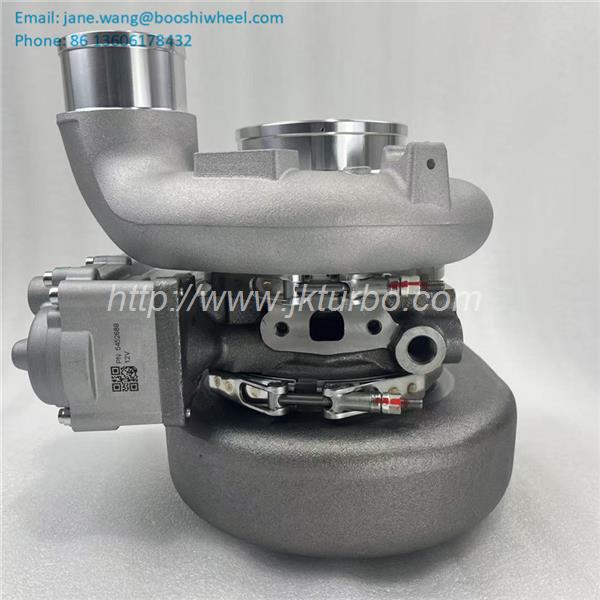

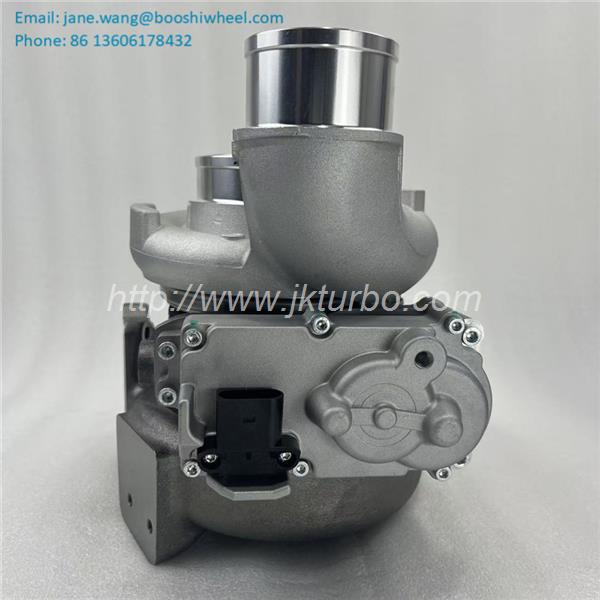

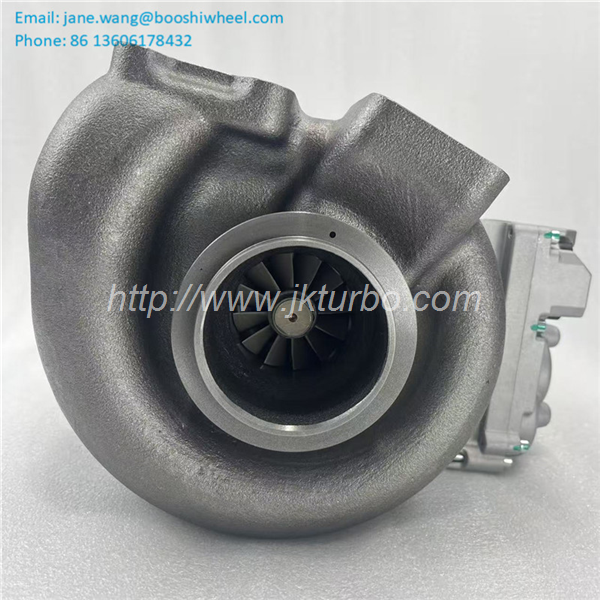

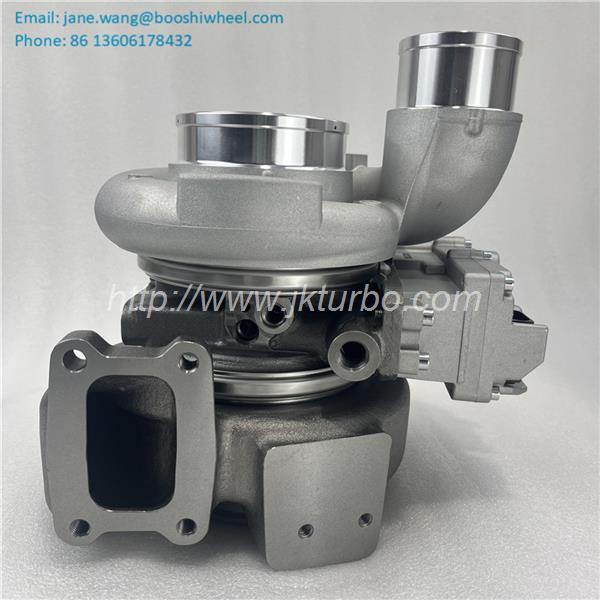

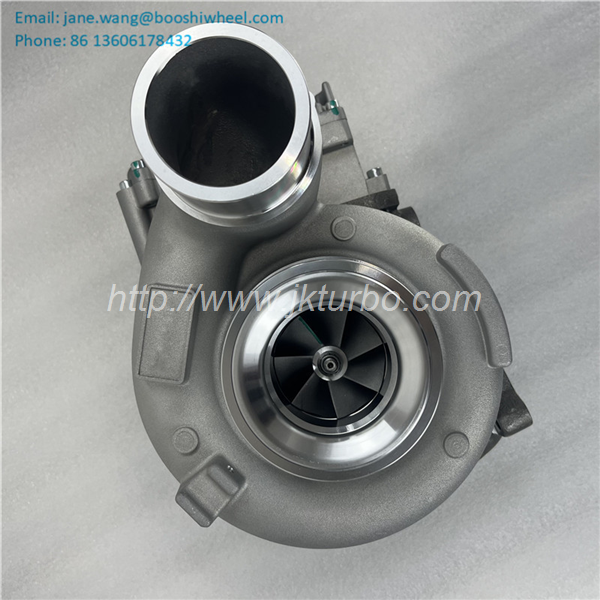

HE300VG Turbo 3775427 3787607 3781755 3779987 for cummins engine ISB13, ISB, 6BTA EURO 6

HE300VG Turbocharger 3794756 3798539 5326048 5326058 for Dodge Ram Cummins 6.7L

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	5326055
Previous Version	3775427, 3775439, 3779986, 3779987, 3781633, 3781755, 3787607, 3787608, 3794756, 3794758, 3798535, 3798539, 3798573, 3798573NX, 3798573RX
OE number	4309356, 4309356NX, 4309356RX, 4352218, 4352218NX, 4352218RX, 68212739AA, 68253984AA, 68319155AA, 68321378AA
Year	2013-20
Description	Dodge Ram Pickup Trucks 2500/3500 , Various
Manufacturer Part Number	5326048, 5326055, 5326058, 532605800, 532605800H, 532605800HX, 5326058H, 5326058HX, 5327045, 5327045NX, 5327045RX, 5501330
Turbo Model	H300VG, HE300VG, HE300
CHRA	N/A
Engine Manufacturer	Cummins
Engine	ISB13, ISB, 6BTA EURO 6
Displacement	6.7L, 6700 ccm
Fuel	Diesel
Angle α (compressor housing)	175°
Angle β (turbine housing)	189°
Bearing Housing	3791604 (Water Cooled)
Turbine Wheel	3768300 (Ind. 69.72 mm, Exd. 59.89 mm, Trm 8.05, 12 Blades) $138.00 NEW IN STOCK
Comp. Wheel	3599017 (Ind. 57.91 mm, Exd. 84.32 mm, Trm 5.71, 7+7 Blades, Superback) $79.44 NEW IN STOCK
Back plate	4046252 (4046253) $40.00 NEW IN STOCK
Heat shield Number	NEW IN STOCK
Repair Kit	(Major)(1154300755) $90.00 NEW IN STOCK
Nozzle Ring	3799839 $334.08 NEW IN STOCK
VNT kit	$160.00 NEW IN STOCK
Turbine Housing	3779769
Electronic Actuator	5498269 (5452689, 5494878, 5494878NX, 5494878RX, 5498269NX, 5498269RX, 5579127, 5579127HX, 68232771, 68232771AA, 68244609, 68244609AA, 68307025, 68307025AA, 68445522AA, 68481772, 68481772AA, R8481772AA) $808.86
Speed Sensor	5550060 (2839964, 4032806, 4034198, 4034198H, 4327174, 5550060, 5550060H, 5550060HX) $177.02
Gasket Kit	3786285 (33616, GS33616K, MAGGS33616K) $29.07K
Turbine Housing AR	VGT
Manufacturer	Holset

Applications

2013-20 Cummins Truck, Various with ISB, 6BTA EURO 6 Engines
