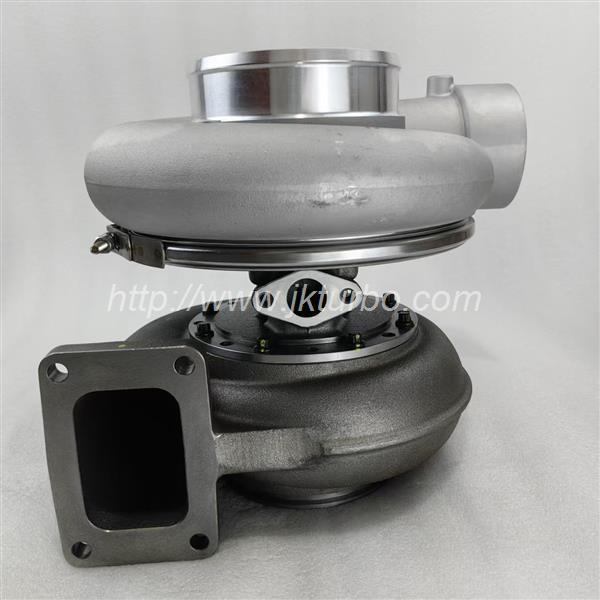

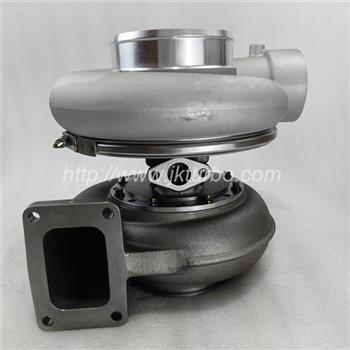

turbo for cummins 3594081 3004595 3033559 3033559RX 3525354 3525355 3594082 4033514 3801803

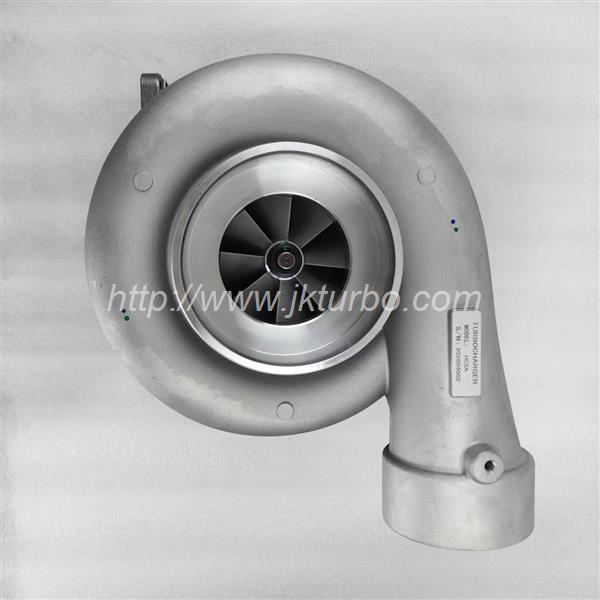

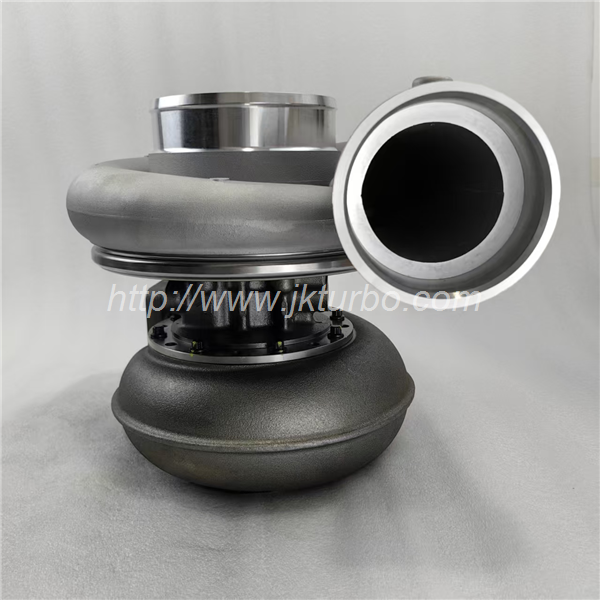

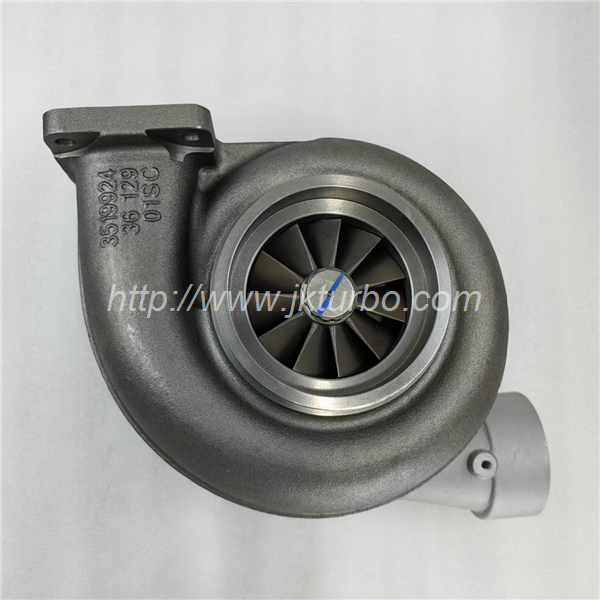

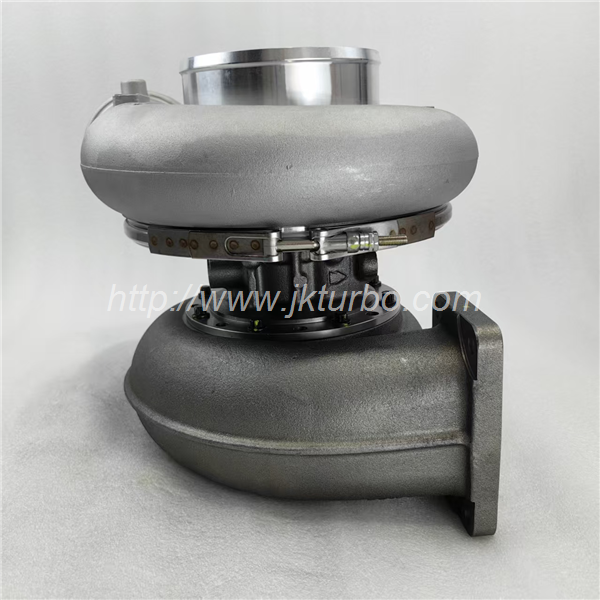

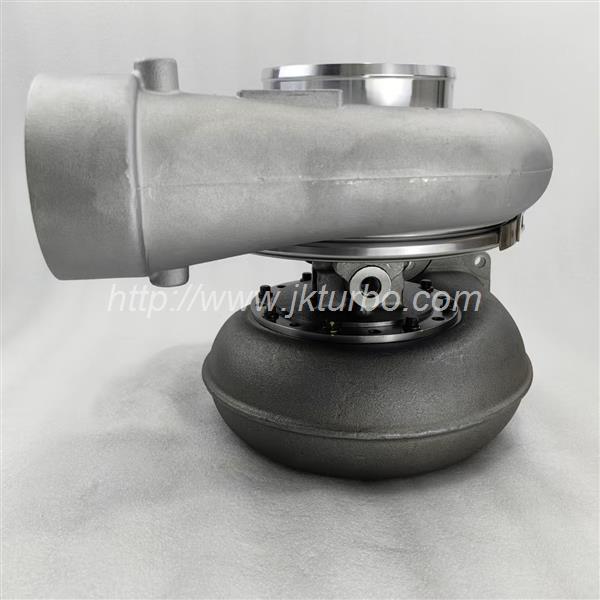

HC5A Turbocharger 3594081 3803119 3803119NX 3803119RX turbocharger for Cummins Various with KTA19 Engine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	3594081
Previous Part Number	3004595, 3033559, 3033559RX, 3525354, 3525355, 3594082, 4033514, 3801803
OE number	3803119, 3803119NX, 3803119RX
Description	Various
Manufacturer Part Number	3594082
CHRA	3545702 (4027084, 402708400)(1000020106) $895.00 NEW IN STOCK
Turbo Model	HC5A, HC5A-2741W/F36D3
Engine	KTA19, KTA1150, KTA2300
Engine Manufacturer	Cummins
Fuel	Diesel
Angle α (compressor housing)	0°
Angle β (turbine housing)	360°
Bearing housing	3523429 (352342900)(3022514, 5149403)(Oil Cooling)(1900011448) $461.96 NEW IN STOCK
Turbine Wheel	3521033 (3521033, 75124631)(Ind. 129. mm, Exd. 95.4 mm, Trm 19, 11 Blades)(1152105435, 1100016472) $230.00 NEW IN STOCK
Comp. Wheel	3521918 (Ind. 121.8 mm, Exd. 85.2 mm, Trm 47, 8+8 Blades)(1200030005) $145.00 NEW IN STOCK
Back plate	3524862 (352486200) $259.47 NEW IN STOCK
Heat Shield	3519783 (351978300) $104.11 NEW IN STOCK
Repair Kit	4027970 (4027974, 3575236, 3545647, 4027966)(1152105750, 1152105756, 5000020020) $127.40 NEW IN STOCK
Gasket (turbine inlet)	409038-0000 (132040, 52231083002, 1900000004) $17.21
Gasket (oil outlet)	129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
Manufacturer	HOLSET

Applications

1986-00 Cummins Various with KTA19 Engine

1986-00 J A Faguy Et Fils Ltd with KTA19 Engine
