S430V Turbo chra RE528374 RE535841 RE548269 for John Deere Agricultural Engines Combine

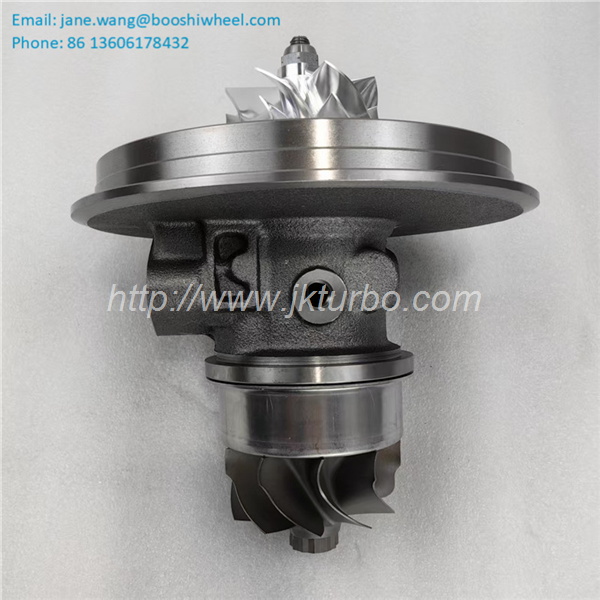

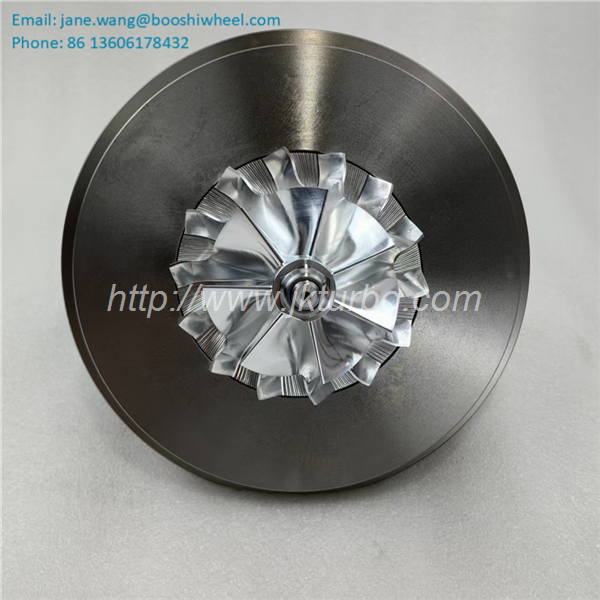

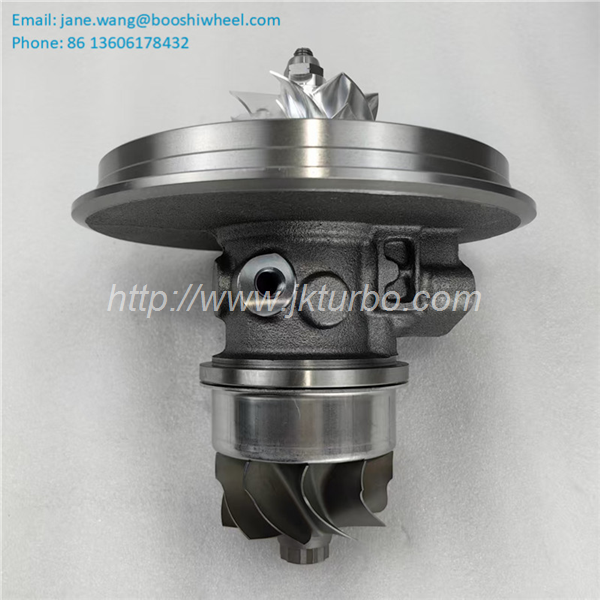

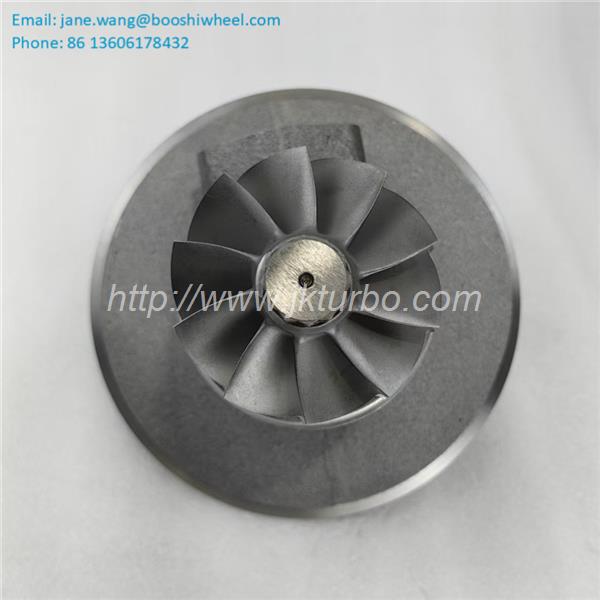

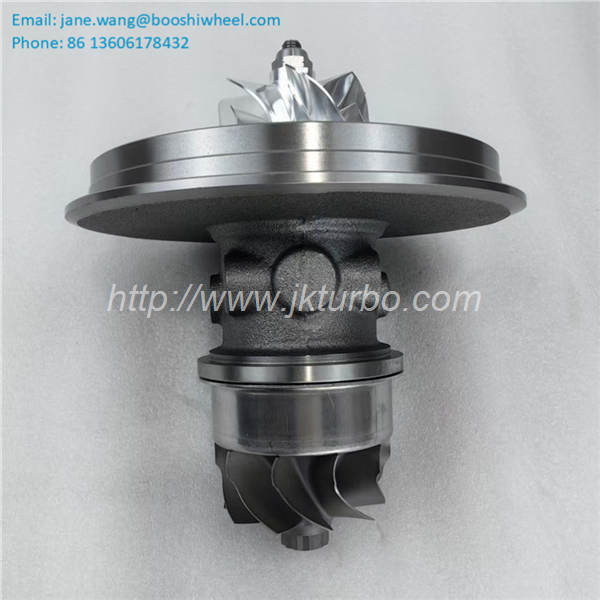

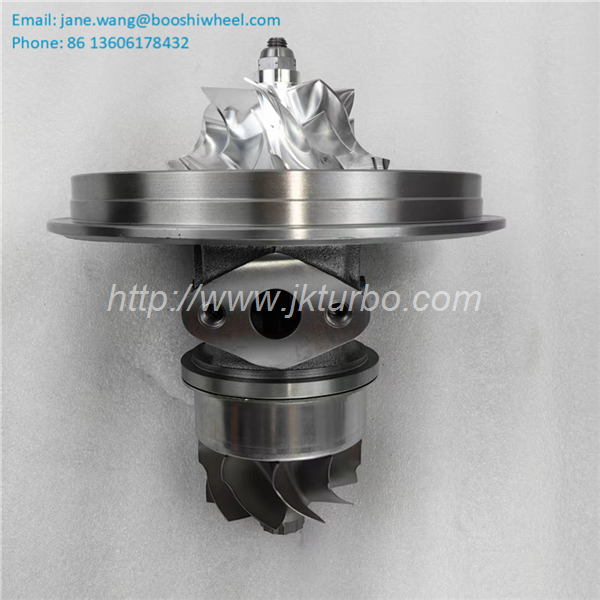

S430V Turbo Cartridge 177475 175859 175859R 177475R 475859 477475 14879880104 1487-970-0104 core for 6135H PowerTech Engine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Product Description

Part Number	177475
Previous Version	175859, 175859R, 177475R, 475859, 477475, 14879880104, 1487-970-0104
OEM Part Number	RE528374, RE535841, RE548269, DZ108113, SE502204
Description	Various John Deere Agricultural Engines Combine
Manufacturer Part Number	175859
Turbo Model	S430V-087PM5-10551ANAUM, S430V087PM5105/51AN-AUM
CHRA	N/A
Displacement	13.5L, 13500 ccm
Engine	6135H PowerTech Engine
Fuel	Diesel
Model	110 6135HRW01 9530/9630 4WD And Tracks Tractor, 6545 (Turbocharger), 115 6135HRW02 9330/9430 4WD And Tracks Tractor, 6545 (Turbocharger), 125 Engine 6135HZ006, 7350, 7450, 7550, 7750 SPFH, 6545 (Turbocharger), 126 Engine 6135HZ007, 7350, 7450, 7550, 7750 , 6545 (Turbocharger)[04E06], 9430 Tractor Engine 6135HRW02, 6135HZ006, 6545 Turbocharger
Tractor	9330, 9420R, 9430, 9430T, 9470R, 9470RT, 9470RX, 9520R, 9520RT, 9520RX, 9530, 9530T, 9570R, 9570RT, 9570RX, 9630, 9630T, 6135HRW01, 6135HRW02, 6135HRW04
PowerTech Engine	6135, 6135HRW01, 6135HZ006, 6135HZ007, 6135HZ008, 6135HZ009, 6135HRW02, 6135HRW04
Harvester, Ensilage And Forage (Self-Propelled)	7350, 7450, 7550, 7750
S/N	015000-, 906000- , 120100-, 623000 - 624999, 513822-515999, 516000 - 516999, 517000 - 517999, 619000 - 619999, 517000 - 517999, 619000 - 619999, 620000 - 620999, 621000 - 621999, 622000 - 622999, 623000 - 624999, 513822-515999, 516000 - 516999, 517000 - 517999, 619000 - 619999, 620000 - 620999, 621000 - 621999, 622000 - 622999, 623000 - 624999, 513822-515999, 516000 - 516999, 517000 - 517999, 619000 - 619999, 620000 - 620999, 621000 - 621999, 622000 - 622999, 623000 - 624999, 513822-515999, 516000 - 516999, 517000 - 517999, 620000 - 620999, 623000 - 624999
Angle α (compressor housing)	255°
Angle β (turbine housing)	28°
Bearing Housing	(Oil Cooled) NEW IN STOCK
Turbine Wheel	(Ind. 80.37 mm, Exd. 87.36 mm, 10 Blades)
Comp. Wheel	175763 (Ind. 72.42 mm, Exd. 110.08 mm, 7+7 Blades, Superback) NEW IN STOCK
Back plate	NEW IN STOCK
Heat shield Number	EW IN STOCK
Repair Kit	(1253430750) $193.24 NEW IN STOCK
Turbine Housing AR	VTG
Speed Sensor	175216 (RE523319, DSE121013PHZ) $192.88 $297.44
Electronic Actuator	174774 (174787, 59001107431)(RE523318)(12V)(Delphi) Includes E6354 also order (RE528219 12V) $762.90
Electronic Actuator Reman	RM100084 $585.02
Gasket (turbine inlet)	R528035 (R519305) $18.36
Gasket (oil outlet)	R521349 $2.11
LISTED	$4,361.45
Manufacturer	Borg Warner - 3K - Schwitzer, BWTS USA
Condition	Rebuilt

Applications

2007-11 John Deere Agricultural Engines Combine 13.5L PowerTech Engine
