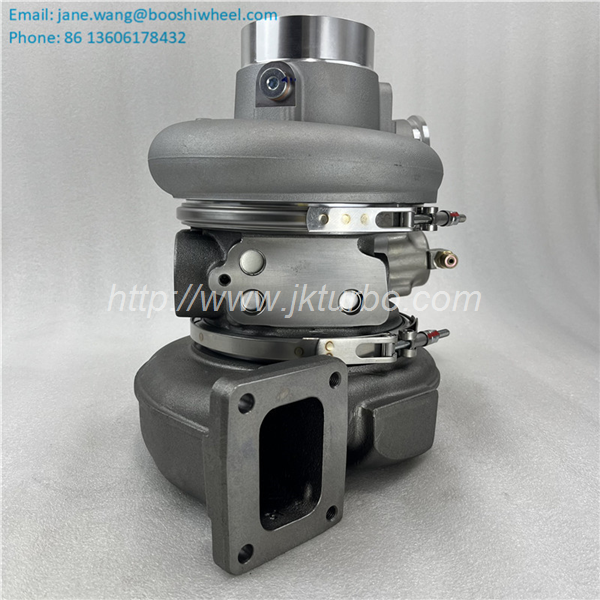

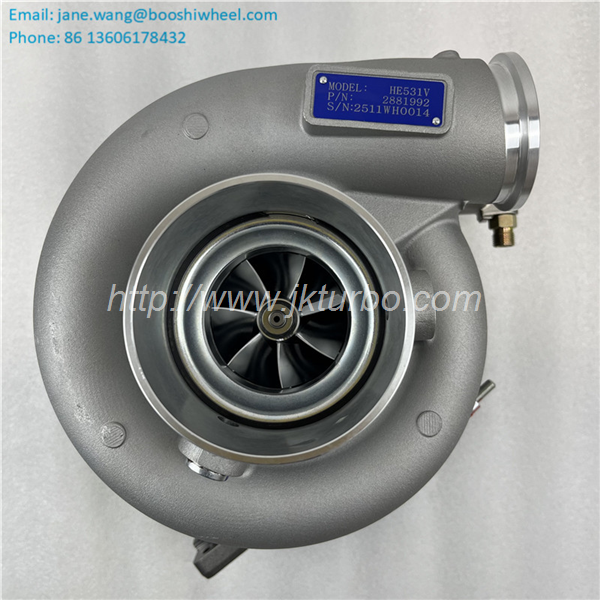

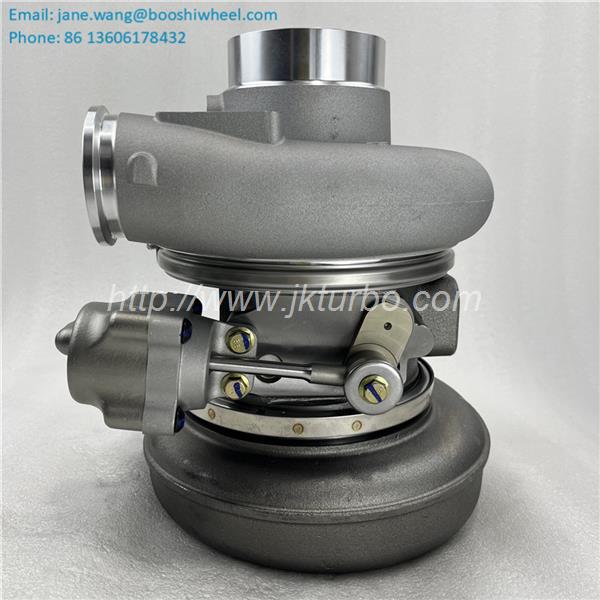

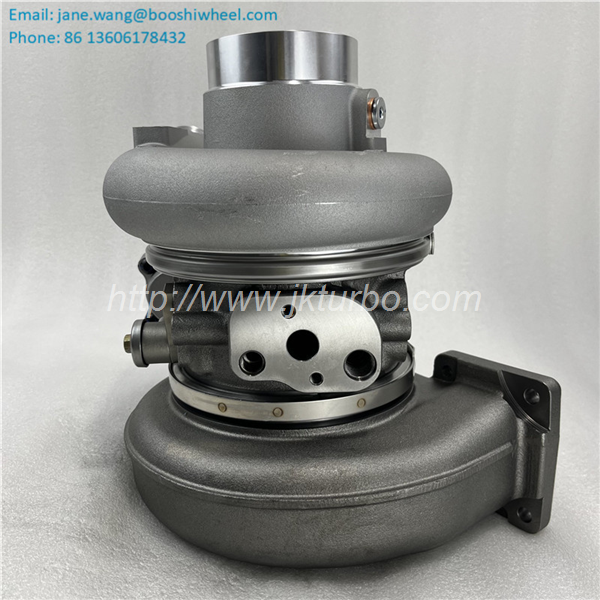

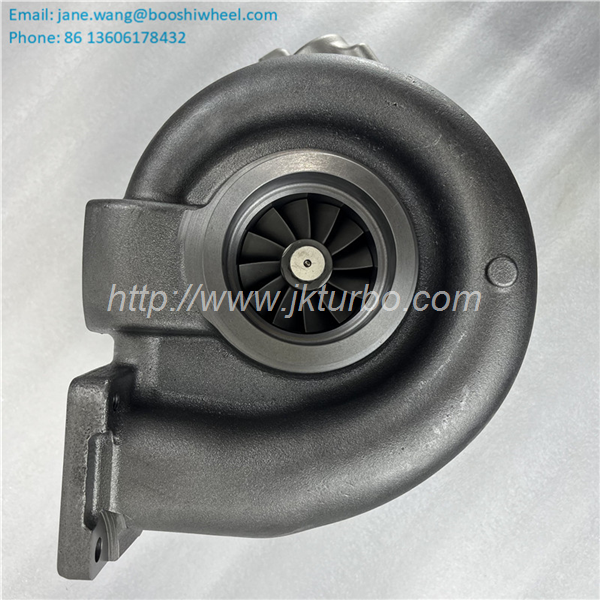

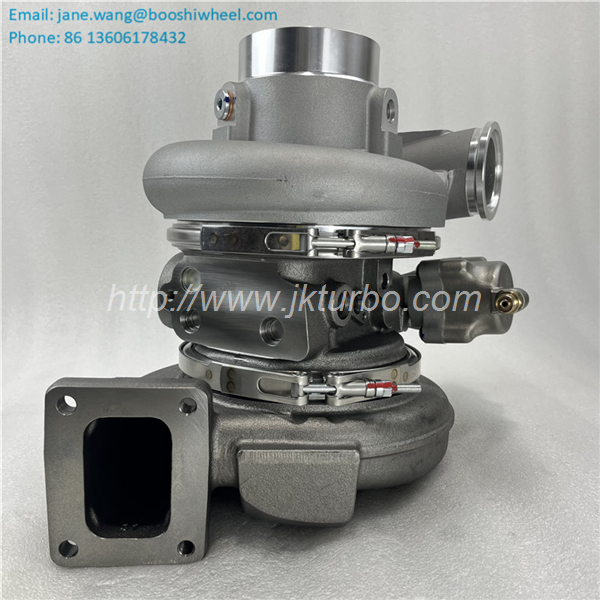

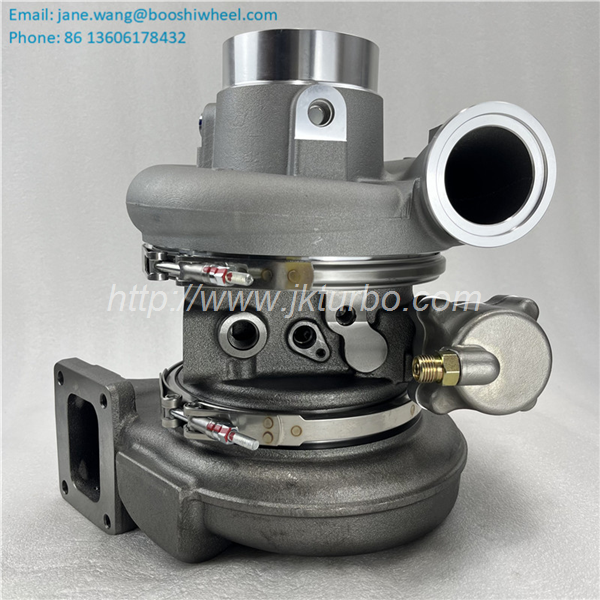

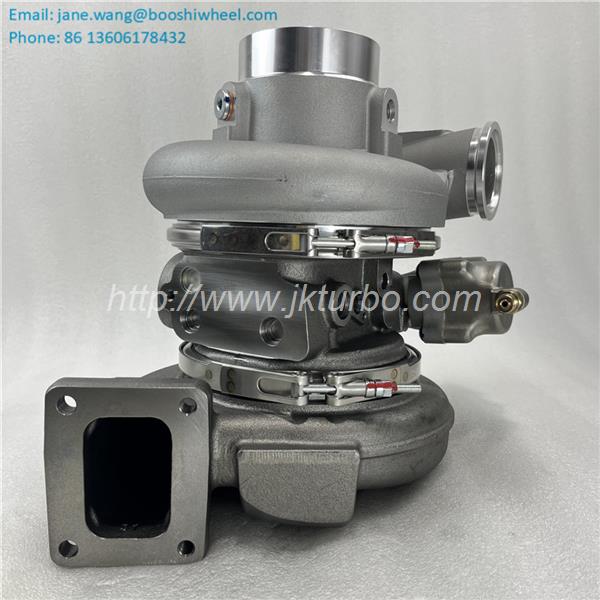

HE531V Turbocharger 4037260 4037261 4038756 4038757 4043223 4043224 4045922 4045923 4955303

HE500VG Turbo 5353159 4089820 2881992 288199200 4043212 4041048 3768262 4038983 for Cummins Various with ISM Engine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	5353159
Previous Version	4043212, 4041048, 3768262, 4038983, 3781166, 4038756, 2843881, 4041046, 4045923, 2843881, 3768262, 3768266, 376826600HX, 3768266HX, 3781166, 3768266H
OE Number	4089820, 2881992, , 288199200, 288199200HX, 2881992HX, 2881992NX, 2881992RX, 4955304, 4089578, 4089578NX, 4089820, 4089820NX
Year	2004-
Description	RV, Fire Truck, Coach, Various ID21
Manufacturer Part Number	4035854, 4035855, 4037260, 4037261, 4038756, 4038757, 4038983, 4038984, 4038985, 4038986, 4041046, 4041048, 4043211, 4043212, 4043223, 4043224, 4045922, 4045923, 4955303, 4955303NX, 4955303RX, 4955304, 4955304NX, 4955304RX, TS3768262, TS3768262R
CHRA	N/A
Turbo Model	HE500VG, HE531V
Engine Model	ISM, ISM02, QSM11
Displacement	11.0L, 1100 ccm
Engine Manufacturer	Cummins
KW	400 HP
Fuel	Diesel
Angle α (compressor housing)	270º
Angle β (turbine housing)	130º
Turbine Wheel	4042581 (Ind. 83.99 mm, Exd. 69.97 mm, 12 Blades)(1154055438, 1100016492) $235.90 NEW IN STOCK
Repair Kit	4032255 (1154055750, 5000020036) $138.70 NEW IN STOCK
Turbine Housing AR	VGT
Air Control Valve	3770743 (2836555, 3770743H, 4035014, 4036783, 4040341, 4046305) $607.42
Gasket (turbine inlet)	3755843 $15.80
Gasket (oil outlet)	3101268 (Paper)
Gasket (Kit)	(3755843, 3101268, 3102802, 3627695, 3678786, 3678912, 3922794)
Manufacturer	Holset

Applications

2004-10 Cummins RV, Fire Truck, Coach with ISM02 Engine

2010- Cummins Various with ISM Engine
