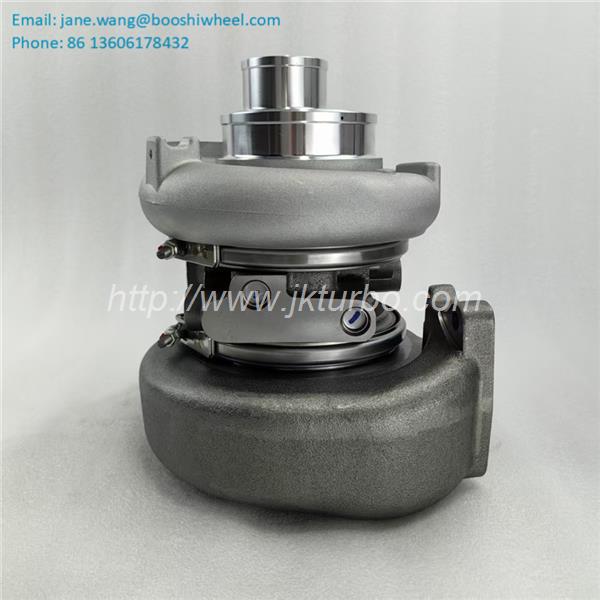

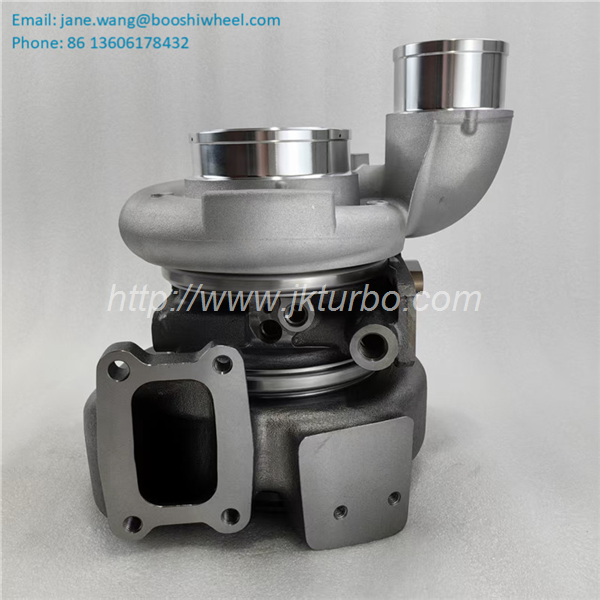

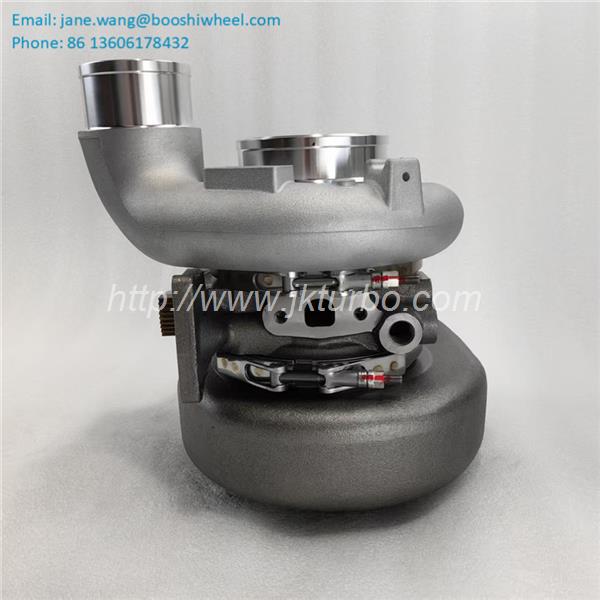

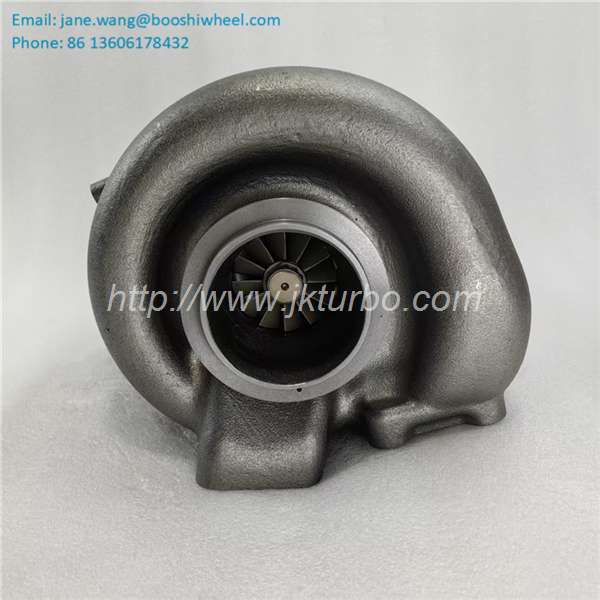

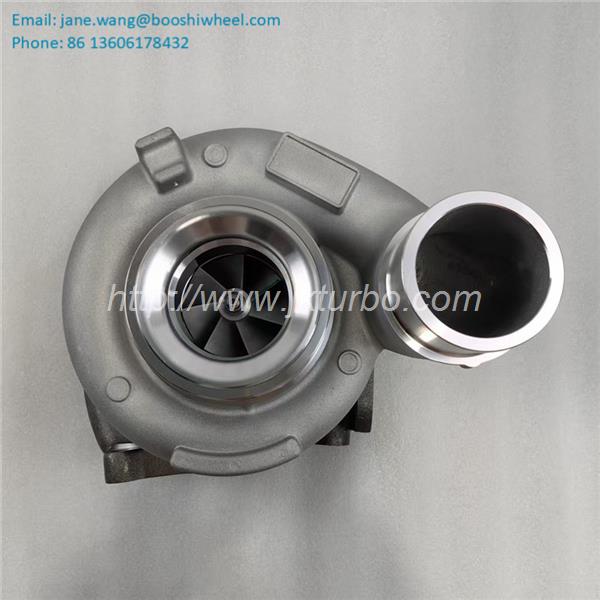

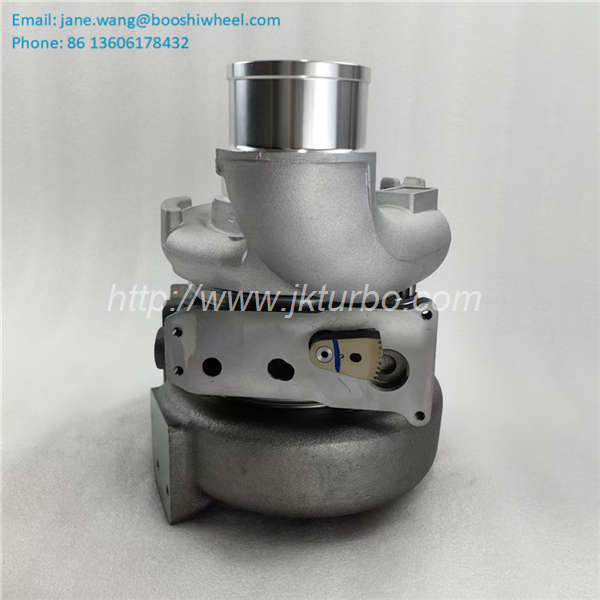

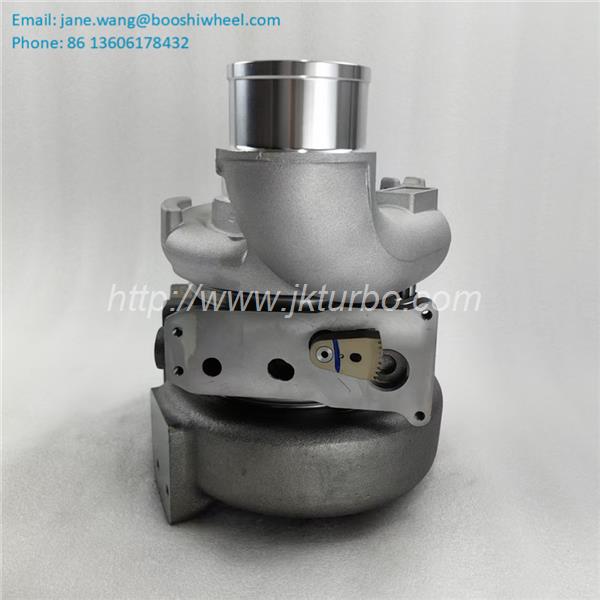

HE300VG Turbocharger 3784573 3784574 3787604 3787605 3791531 3791533 3794755 3794757 3795329 3795330 3795331 3795332

HE300VG Turbo 3787604 5326054 2T-318 2T318 3775426 3775438 3779988 3779989 3781632 3781754 Dodge Cummins ISB 6.7

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	5326054
Previous Version	2T-318, 2T318, 3775426, 3775438, 3779988, 3779989, 3781632, 3781754, 3784573, 3784574, 3787604, 3787605, 3791531, 3791533, 3794755, 3794757, 3795329, 3795330, 3795331, 3795332, 3798534, 3798536, 3798537, 3798538, 3798540, 3798541, 3798575, 3798575NX, 3798575RX, 3798579, 3798579NX, 3798579RX, 3798580, 3798580NX, 4309355, 4309355NX, 4309355RX, 4352344, 4352344NX, 4352344RX, 4352345, 4352345NX, 4352345RX, 5326057, 532605700, 532605700H, 532605700HX, 5326057H, 5326057HX, 5327046, 532704600, 532704600H, 532704600HX, 5327046H, 5327046HX, 5327046NX, 5327046RX, 5352344, 5352344NX, 5352344RX, 5501329
OE number	68210648AA, 68212738AA, 68240477AA, 68240478AA, 68245792AA, 68253983AA, 68295438AA, 68297874AA, 68321377AA, R8210648AA, R8212738AA, R8240477AA, R8240478AA, R8245792AA, R8253983AA, R8295438AA, R8297874AA, R8321377AA
Year	2012-18
Description	Pick Up Truck, Mining, Underground Mining, Dodge Ram 3500/4500/5500 Cab & Chassis, Various
Manufacturer Part Number	3775426, 3779989, 3781754, 3784573, 3784574, 3787604, 3794757, 3795331, 3795332, 3798538, 3798540, 3798541, 5326057
Turbo Model	H300VG, HE300VG, HE300
CHRA	(1000020204) $1,300.00 NEW IN STOCK
Engine Manufacturer	Cummins
Engine	ISB, 6BTA EURO 5, EURO 6
Displacement	6.7L, 6700 cm
Fuel	Diesel
Angle α (compressor housing)	175°
Angle β (turbine housing)	189°
Bearing Housing	3791604 (Water Cooled)(1900011227B) NEW IN STOCK
Turbine Wheel	3768300 (Ind. 69.72 mm, Exd. 59.89 mm, Trm 8.05, 12 Blades)(1100016231B) $138.00 NEW IN STOCK
Comp. Wheel	3599017 (Ind. 57.91 mm, Exd. 84.32 mm, Trm 5.71, 7+7 Blades, Superback)(1200016618) $79.44 NEW IN STOCK
Back plate	4046252 (4046253) $40.00 NEW IN STOCK
Heat shield Number	NEW IN STOCK
Repair Kit	5451880 (5451880H)(Major)(1154300755) $90.00 NEW IN STOCK
Nozzle Ring	3799839 $334.08 NEW IN STOCK
VNT kit	$160.00 NEW IN STOCK
Turbine Housing	3779769 $394.49
Compressor Cover	3772638
Turbine Housing AR	VGT
Actuator Kit	5496045RX (3778620, 3778624, 3784301, 3785181, 3788934, 3788938, 3788938H, 4034091, 4034091NX, 4034091RX, 4034176, 4034176H, 4034176NX, 4034176RX, 4034310, 403431000, 403431000H, 403431000HX, 4034310H, 4034310HX, 4034310NX, 4034310RX, 4034397, 4034397NX, 4034397RX, 5452687, 549604500, 549604500H, 549604500HX, 5496045H, 5496045HX, 5496045NX, 5496045RX) $1,150.00 NEW IN STOCK

Manufacturer	Holset

Applications

2012-18 Cummins Truck, Various with ISC, ISL EURO 5, EURO 6 Engines

2012-18 Dodge Ram 3500/4500/5500 Cab & Chassis Truck, Various with ISC, ISL EURO 5, EURO 6 Engines
