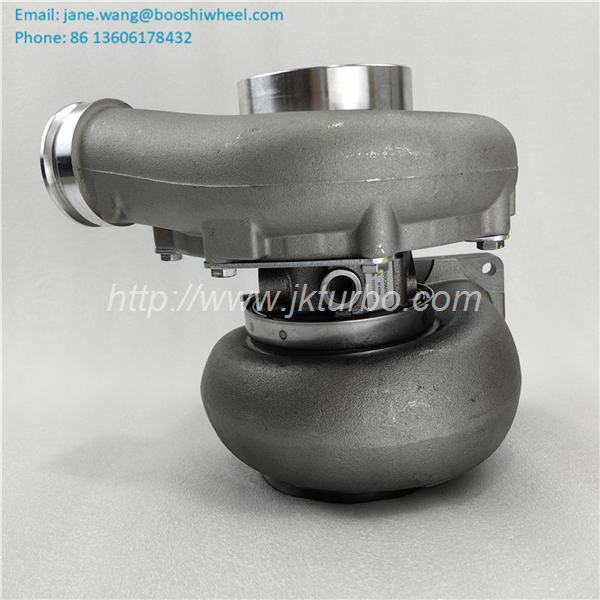

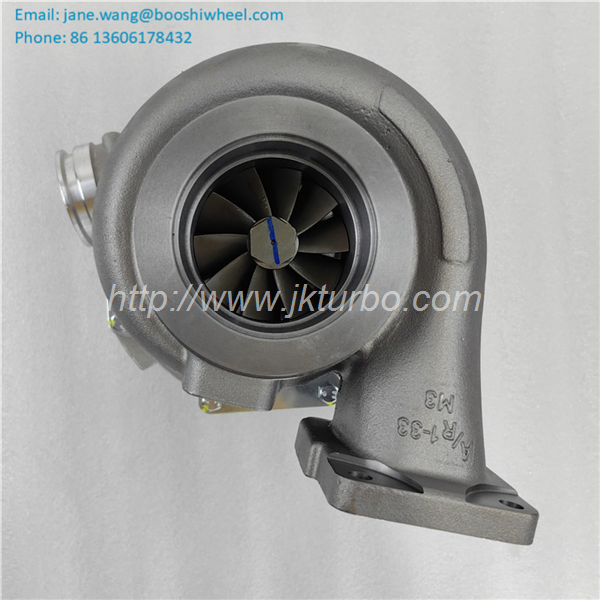

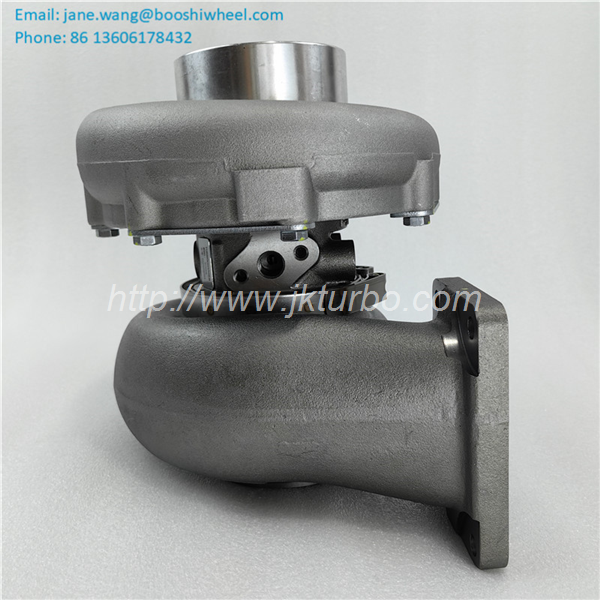

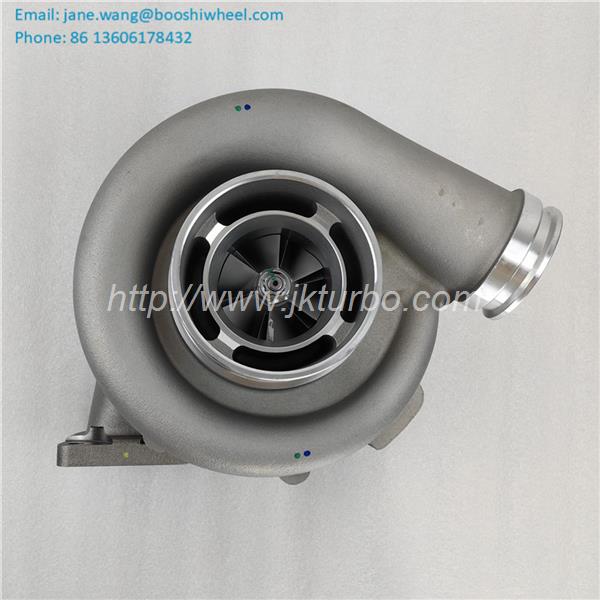

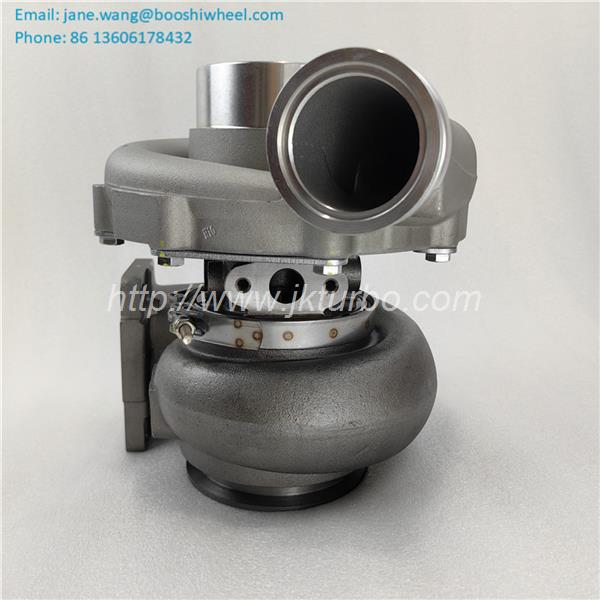

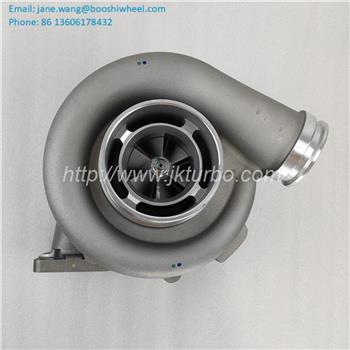

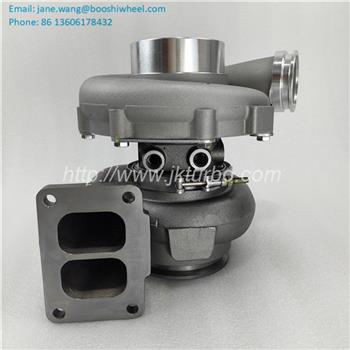

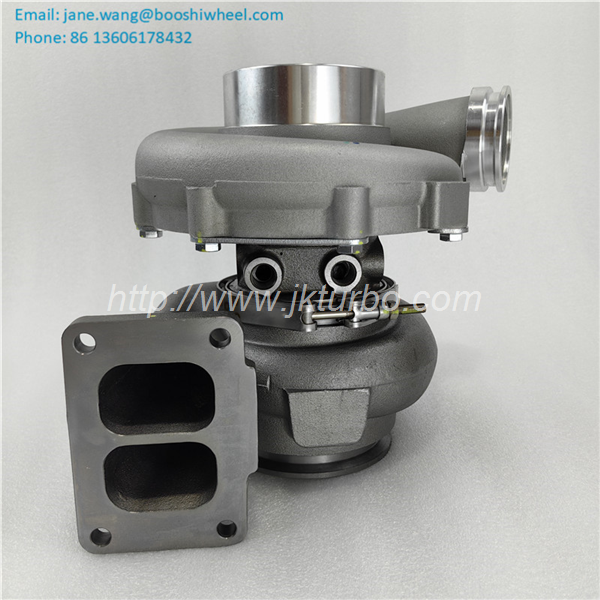

GT4594BL Turbo 1549450 20440364 21031697 20741949 for truck with DH12D Engine

GT4594L Turbocharger 709197-0009 709197-5009S 709197-0009 709197-0001 709197-0003 709197-0005 for Volvo B12B/B12M Bus with DH12D Engine709197-5005S 709197-9

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	709197-5009S
Previous Version	709197-0009, 709197-0001, 709197-0003, 709197-0005, 709197-5005S, 709197-9
OE number	1549450, 20440364, 21031697, 20741949
Year	1999-07
Description	Volvo Truck, B12B/B12M Bus
Model	B12B/B12M Bus. 340, 380 & 420 HP ratings
House Promotor	Volvo Power train
CHRA	712402-0092 (712402-5092S, 712402-0065) $450.00 NEW IN STOCK, MADE IN USA
Turbo Model	GT4594BL, GT4594L
Engine	DH12D, DH12D Horizontal,DH12C340, DH12C380, DH12C420, DH12D380, DH12D340, DH12D420, DH12E460
Model	7300, 7500, 8500, 8700, 9700, 9900
Displacement	12.14L, 12140 ccm, 6 Cylinders Horiz
KW	310/315
RPM Max	1800
Fuel	Diesel
Angle α (compressor housing)	323º
Angle β (turbine housing)	90º
Bearing Housing	720973-0004 (Water Cooled) $89.00 NEW IN STOCK
Turbine Wheel	763590-0003 (763590-0007)(Ind. 87.1 mm, Exd. 77.78 mm, Trm 14.27, 10 Blades) $165.00 NEW IN STOCK
Comp. Wheel	737714-0002 (720973-0004)(Ind. 62.3 mm, Exd. 94. mm, Trm 7.13, 6+6 Blades) $69.00 NEW IN STOCK
Back plate	725273-0004 (726992-0003) $63.68 NEW IN STOCK
Heat shield Number	410366-0007 (410366-0003, 410366-0004) $16.42 NEW IN STOCK
Repair Kit	709153-0005 (709153-0001, 709153-0002)(1102042750)(13***75) $90.80 NEW IN STOCK
Turbine Housing	449495-0019 $195.00
Compressor Cover	449858-0074
Gasket (turbine inlet)	409038-0000 (132040, 210017-0000, 52231083002) $15.49
Gasket (oil outlet)	210019 (129119, 55739, 147837, 210023-0000, 409036-0000) $4.40
Gasket (oil outlet)	210060 (311585, 2475013, 51914, 148062, 210060-0000, 409267-0002, 409267-0003)(Paper) $4.48
Manufacturer	Honeywell-Garrett

Applications

1999- Volvo Truck with DH12D Engine

1999- Volvo B12B/B12M Bus with DH12D Engine
