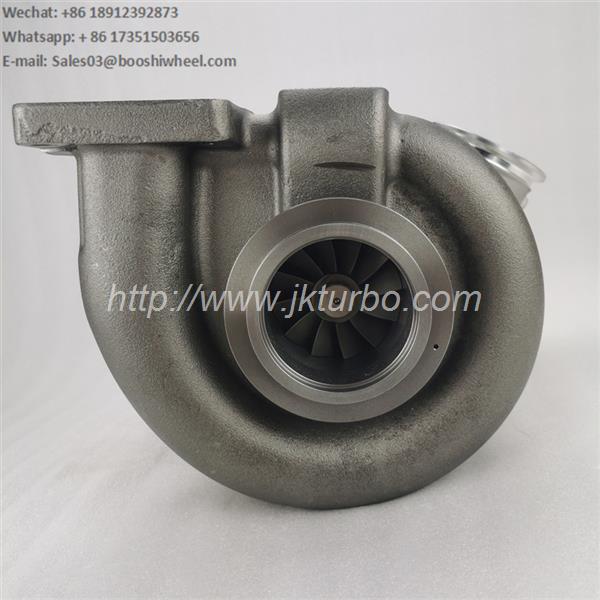

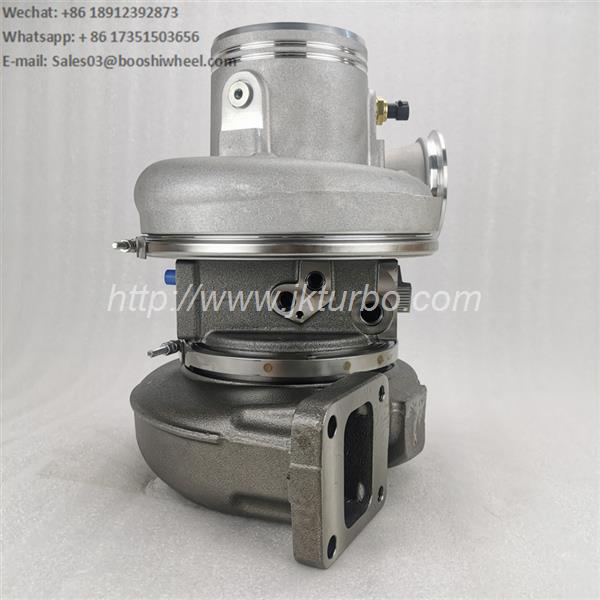

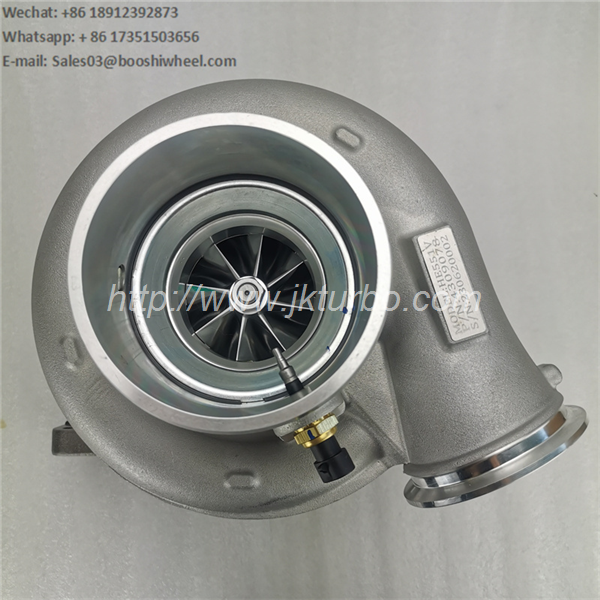

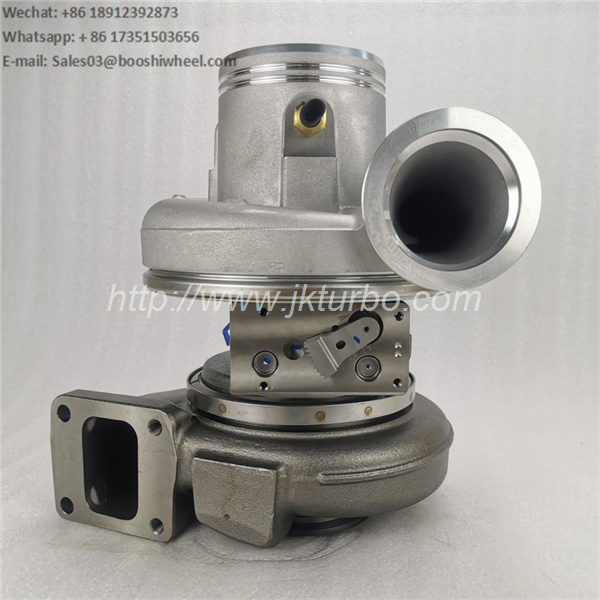

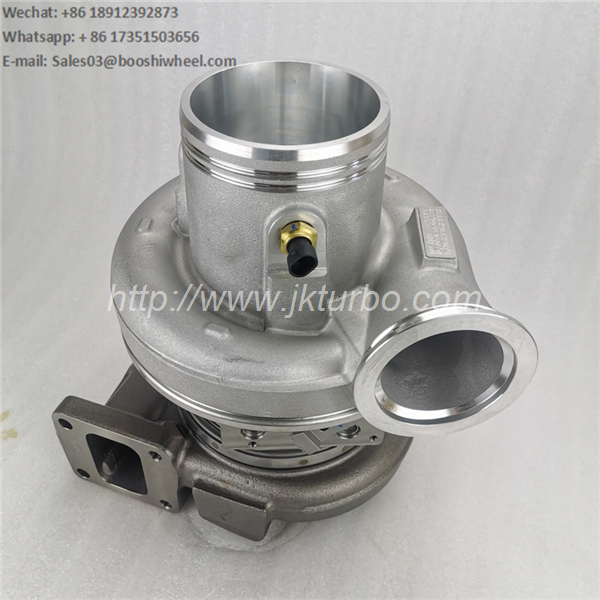

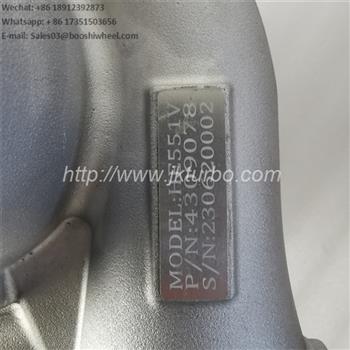

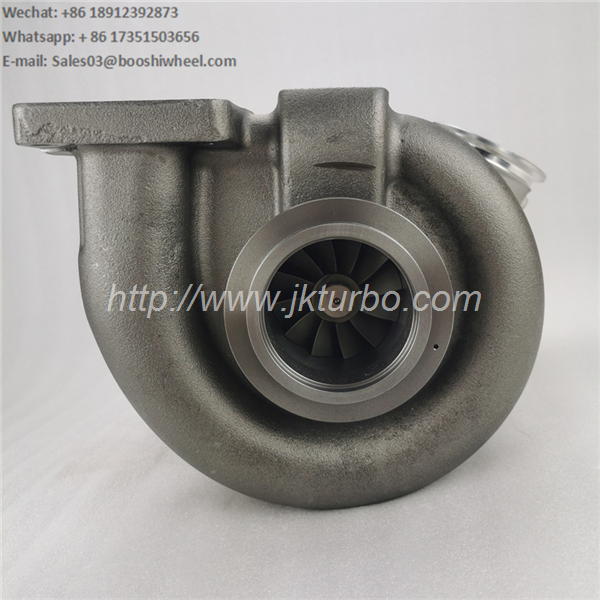

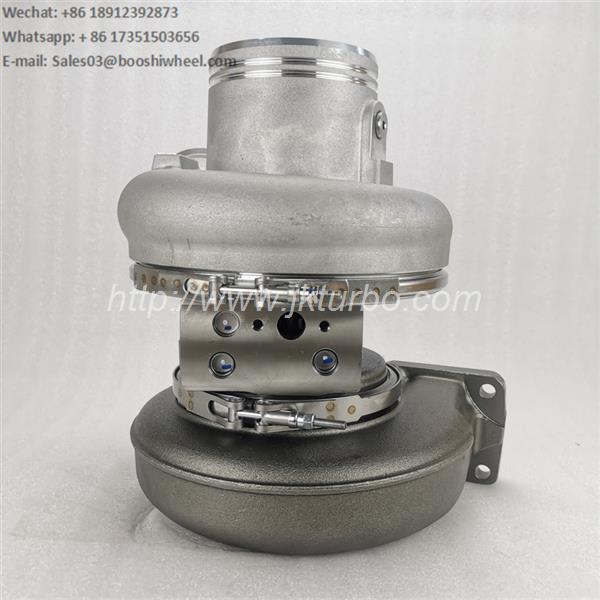

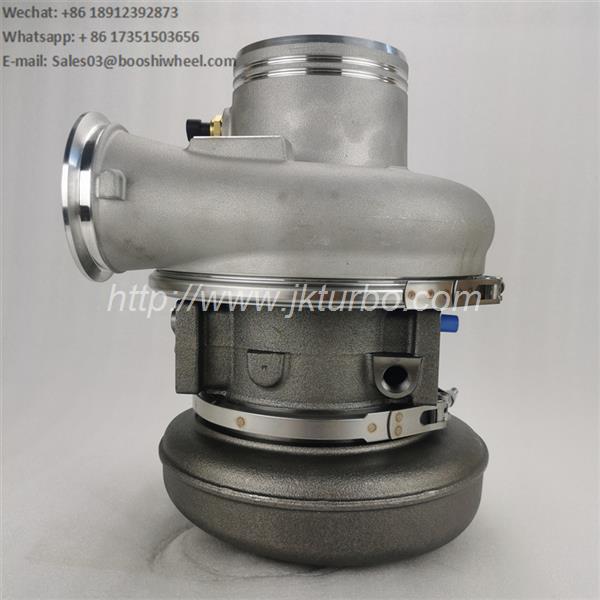

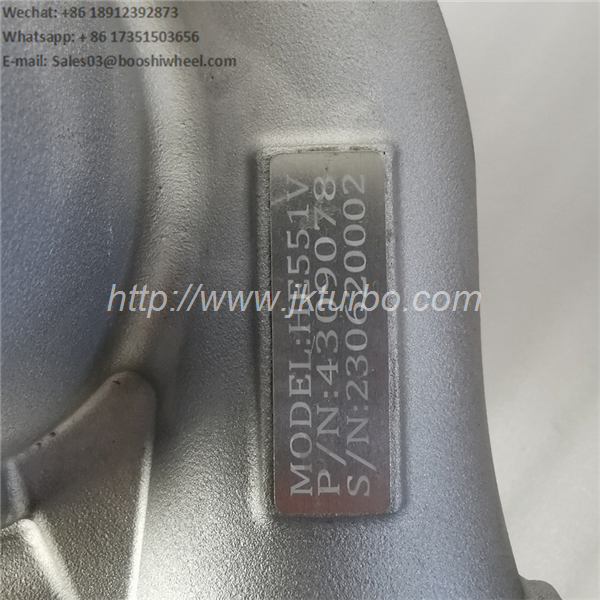

HE551V 5350518 4309078 4309078RX 2882000NX 3792795H turbocharger for Truck Bus Various With ISX ISX3 ISX 07 STA15 Engine

HE551V 5350518 4309078 4309078RX 2882000NX 3792795H turbocharger for Truck Bus Various With ISX ISX3 ISX 07 STA15 Engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	5350518
Previous Part Number	2836364, 2836365, 2838149, 2838150, 2840531, 2840532, 2881789, 2881789NX, 2881789RX, 2882000, 2882000NX, 2882000RX, 3767612, 3767618, 3767625, 3767633, 3774604, 3774614, 3774628, 3774642, 3792775, 3792785, 3792795, 379279500, 379279500H, 3792795H, 3792795HX, 3795165
OE number	4956014NX, 4956014, 4955801
Description	FITS FOR Cummins Various, Truck, Bus, VOLVO, PETERBILT, KENWORTH
CHRA	N/A
Turbo Model	HE500VG, HE551Ve
Manufacturer Part Number	2836365, 2838150, 2840532, 3767625, 3774628, 3792785, 4048097, 4048098, 4309078, 4309078NX, 4309078RX, 4955801, 4955801NX, 4955801RX, 4956014, 4956014NX, 4956014RX, 5350591, 5350951, 5355397, 5355403, 5495611, 5495611H, 5495611HX
Engine	ISX, ISX3, ISX 07, STA15
Displacement	15.L, 1500 ccm
KW	480/550
Fuel	Diesel
Angle α (compressor housing)	132°
Angle β (turbine housing)	155°
Bearing Housing	(Water Cool) IN STOCK
Turbine Wheel	3599629 (3590433, 359962900)(Ind. 86.1 mm, Exd. 80.03 mm, Trm 10.66, 12 Blades)
Rotor Assembly	4034236
Repair Kit	4032255 (4032255H)(1154055757)
Nozzle Ring Assy	ORDER ACCEPTABLE
Turbine Housing AR	VGT
NOTE	No Actuator

Applications

2007-10 turbocharger for Cummins Truck, Bus, Various With ISX, ISX3, ISX 07, STA15 Engine
