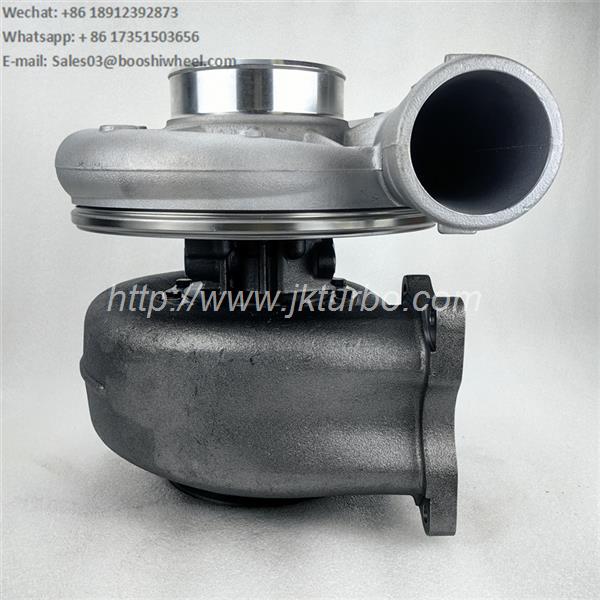

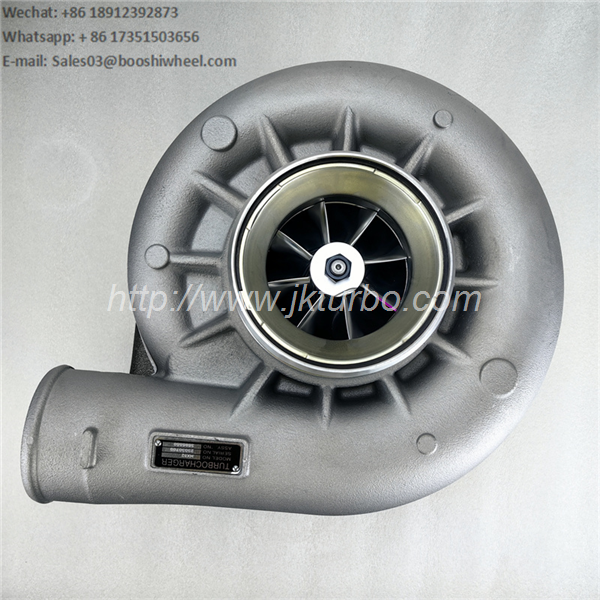

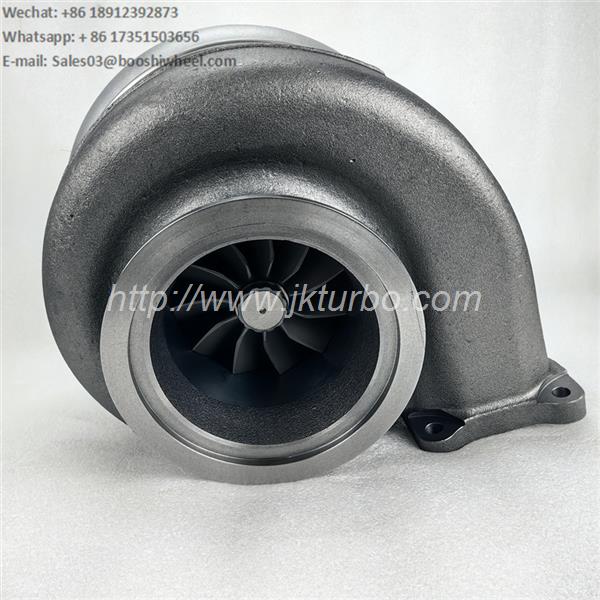

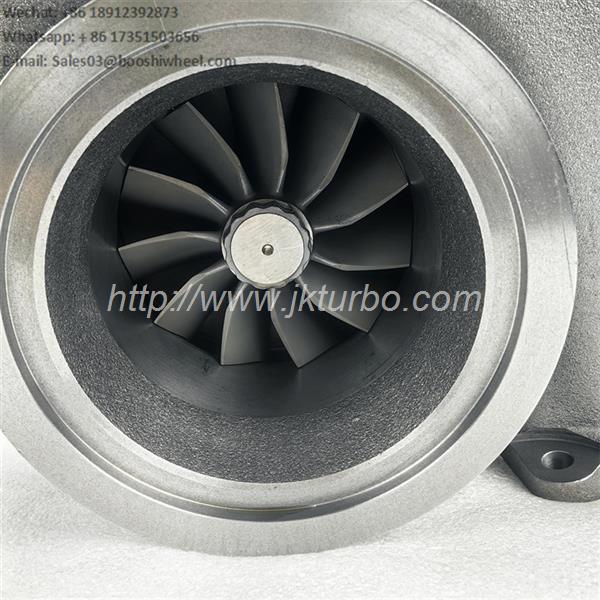

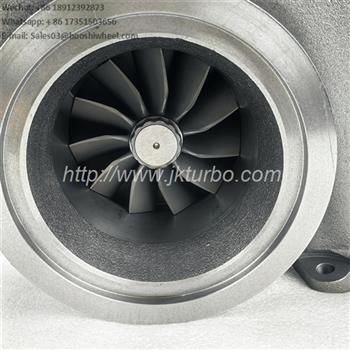

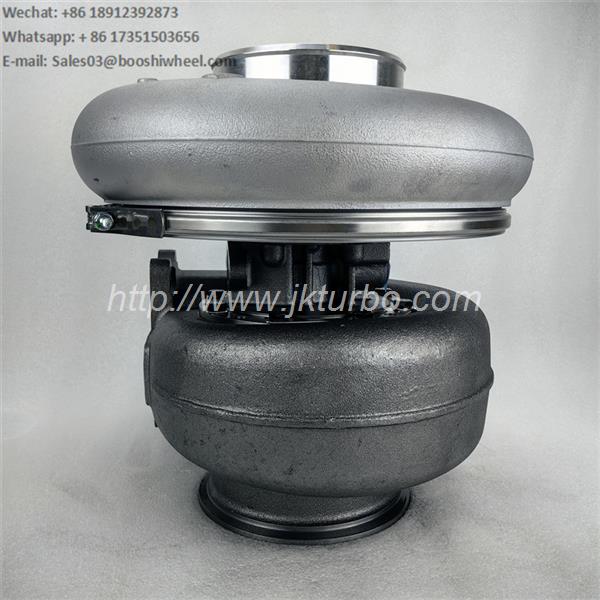

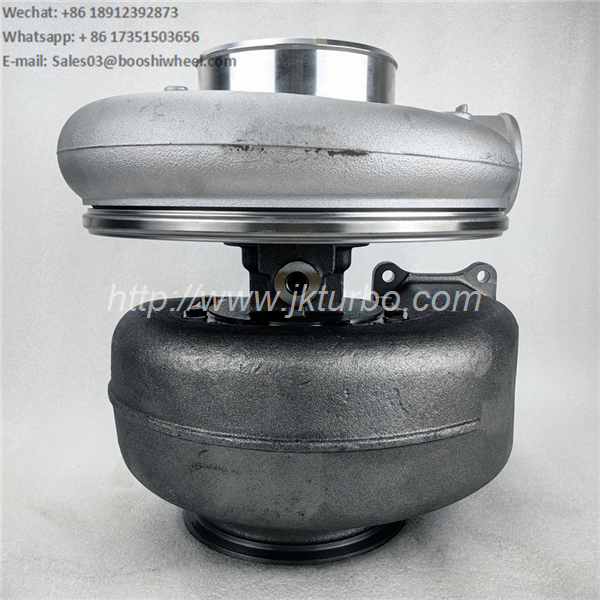

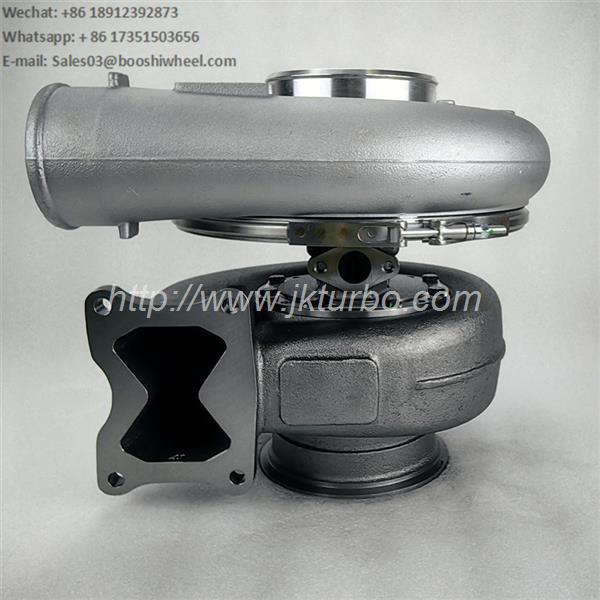

Turbocharger HX82 3774192 3595850 4033023 3595851 turbo for Cummins Komatsu Powergen with QSKV45 Engine

Turbocharger HX82 3774192 3595850 4033023 3595851 turbo for Cummins Komatsu Powergen with QSKV45 Engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	3774192
Previous Version	3595850
OE number	4025150, 6240-81-8900, 6240818900
Description	Cummins Komatsu Powergen
Manufacturer Part Number	3793507, 3595851, 3595852, 3599388
CHRA	3774248 (4027658) $2807.20
Turbo Model	HX82, HX82-H5153BC/AR37HA4
Engine	QSKV45, QSK23 G3
Engine Manufacturer	Cummins (CTT)
KW	1035/1200/1810 HP
Fuel	Diesel
Angle α (compressor housing)	16/195/202°
Angle β (turbine housing)	22.5/45/360°
Bearing Housing	3595037 (Water Cooled) $920.31
Turbine Wheel	3535977 (Ind. 129. mm, Exd. 111. mm, Trm G, 13 Blades) $1,150.00 NEW IN STOCK
Rotor Assembly	4017423
Comp. Wheel	3593926 (4048021)(B151N66, F151N66)(Ind. 100. mm, Exd. 152.04 mm, Trm 12.88, 8+8 Blades, Superback) $595.04 NEW IN STOCK
Back plate	3534703
Heat shield Number	3536588 (353658800) (1153080340) $48.74 NEW IN STOCK
Repair Kit	4027972 $262.62 NEW IN STOCK
Shim (0.010)	3524418 (316069) $6.88
Gasket Kit	4032525 (3575178) $38.40
Manufacturer	HOLSET

Applications：

2000- Cummins Komatsu Powergen with QSKV45 Engine
