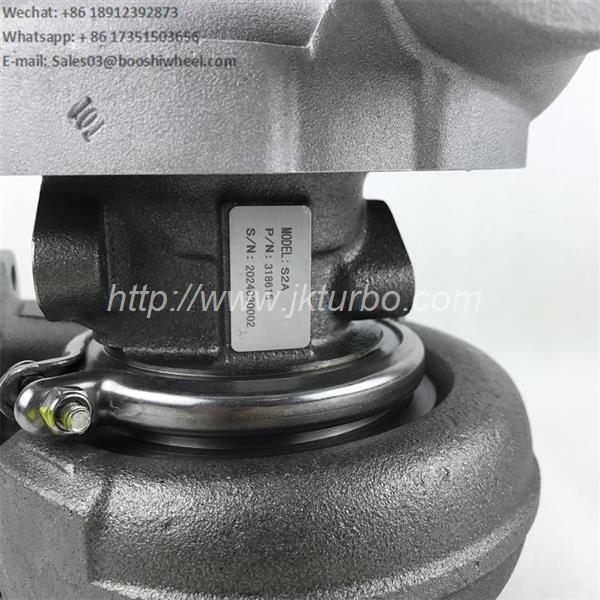

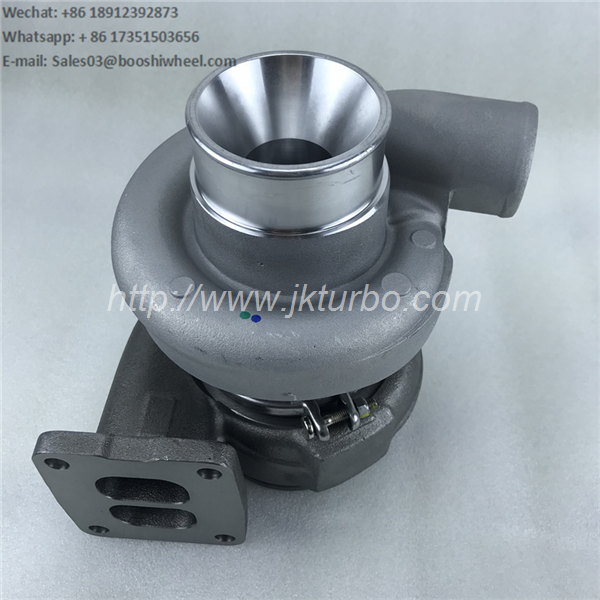

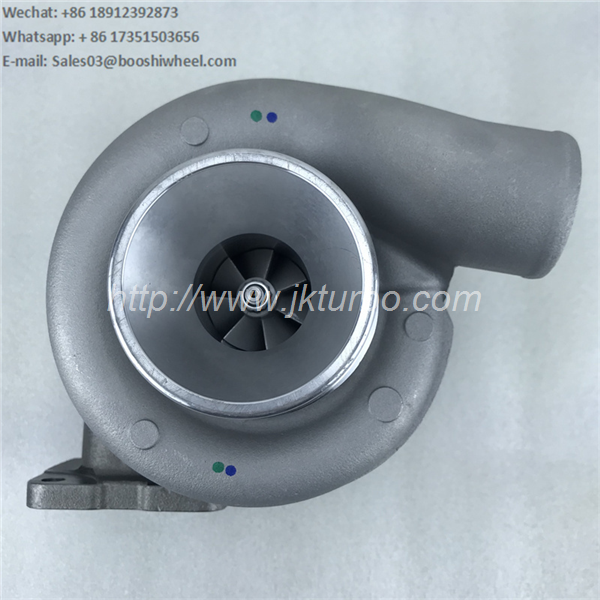

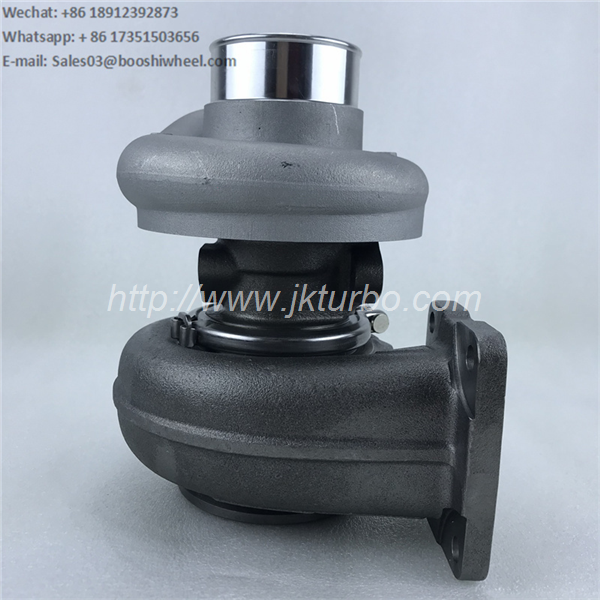

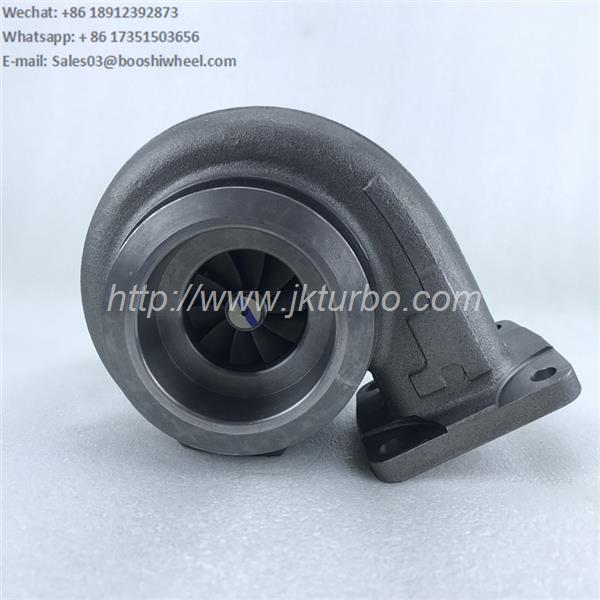

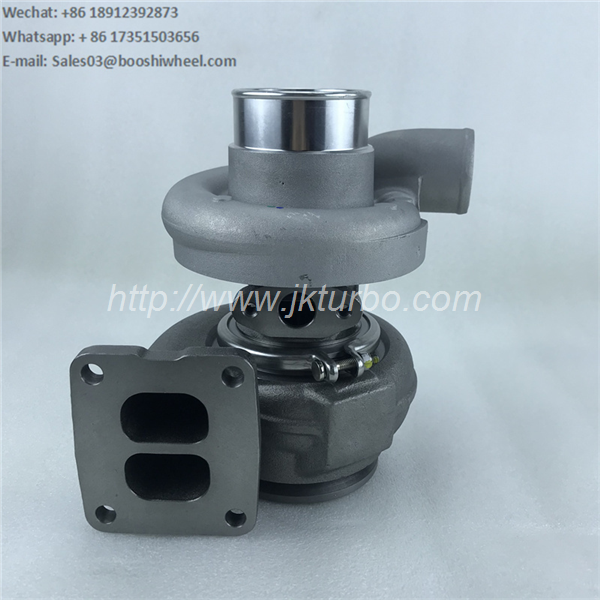

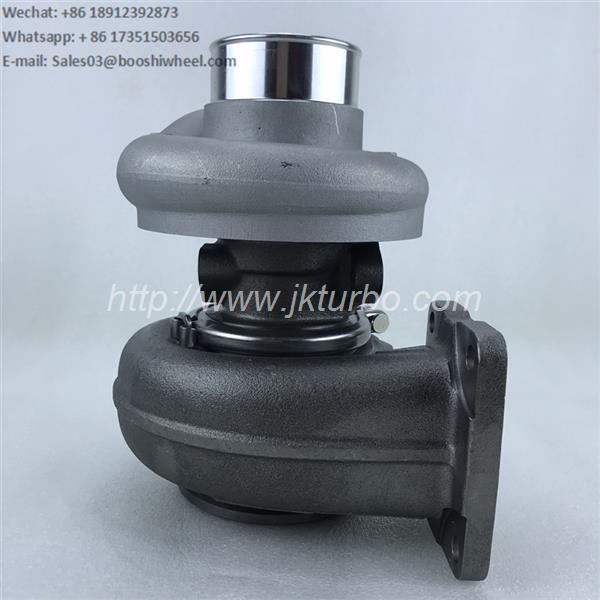

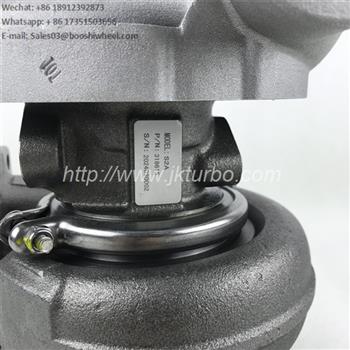

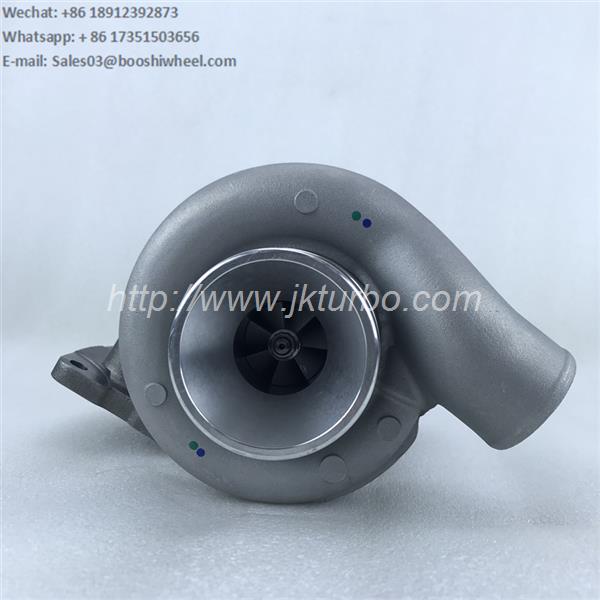

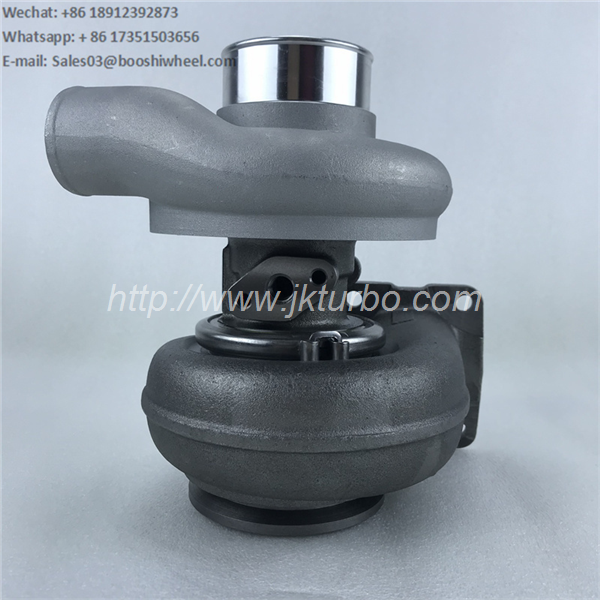

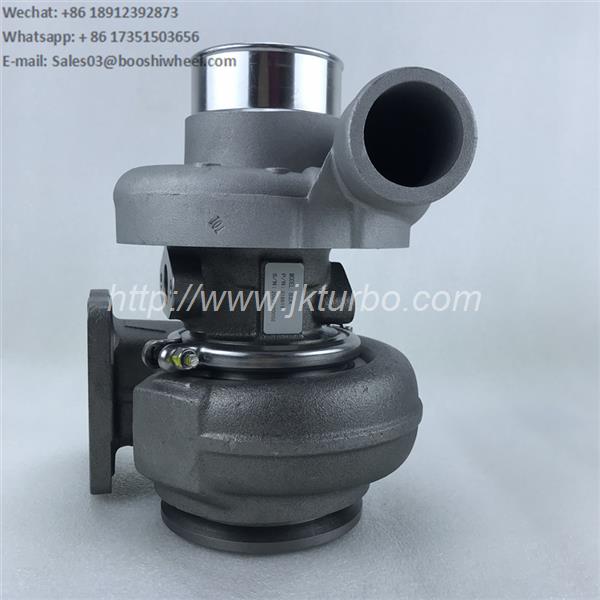

Turbocharger S2A 318615 318570 174735 RE508971 RE509818 RE523366 RE67647 471049-0001 3990023112 turbo for Gen Set 4045T Engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	318615
Previous Version	318570, 174735
Interchangeable	RE503097, RE508876, RE508877, RE508971, RE509818, RE59379, RE59997, RE59999, RE60069, RE60076, RE67647, RE70995
OE number	RE508971, RE509818, RE523366, RE508973, 3990023112
Interchangeable Turbo Part OE No	471049-0001, 471049-0002, 471049-0003, 471049-0006, 471049-0008, 471049-9001, 471049-9004
Year	2000-12
Description	Gen Set
Manufacturer Part Number	318570, 418570
CHRA	318613 $895.38 NEW IN STOCK
Interchangeable CHRA	446311-0006
Turbo Model	S2A, S2A090, K27-112
Engine Model	4045 & 4045T
Displacement	4.5L, 4500 ccm
KW	102/137
Fuel	Diesel
Angle α (compressor housing	24°
Angle β (turbine housing)	0°
Bearing Housing	318609 $225.44 NEW IN STOCK
Turbine Wheel	314653 (Ind. 52.8 mm, Exd. 61. mm, 10 Blades)(301030001, 1228000015) $333.57 NEW IN STOCK
Comp. Wheel	197611 (409096-0008)(Ind. 38.1 mm, Exd. 60.95 mm, Trm 8.48, 6+6 Blades, Billet) $49.40 NEW IN STOCK
Back plate	197340 (408045-0041) $16.76 NEW IN STOCK
Heat shield Number	193975 (49168-18900, 193975)(1352346) $18.50 NEW IN STOCK
Repair Kit	318477 (1252102750) $97.20 NEW IN STOCK
Turbine Housing	318567
Compressor Cover	317367
Gasket (turbine inlet)	407294-0001 (310694, 312617)(303031063) $8.20
Gasket (oil outlet)	210021 (148062, 210021-0000, , 311496, 3519807, 409037-0000, 413671-0000)(1900000027) $3.32
Gasket Kit	318418 $16.60
Replaced By	318614
