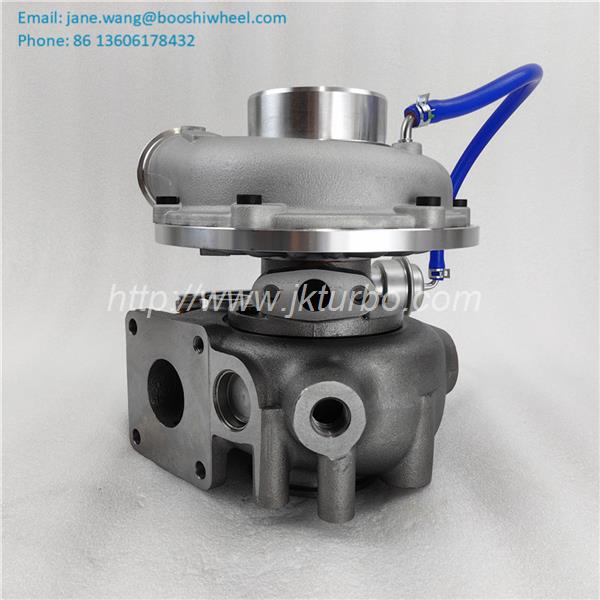

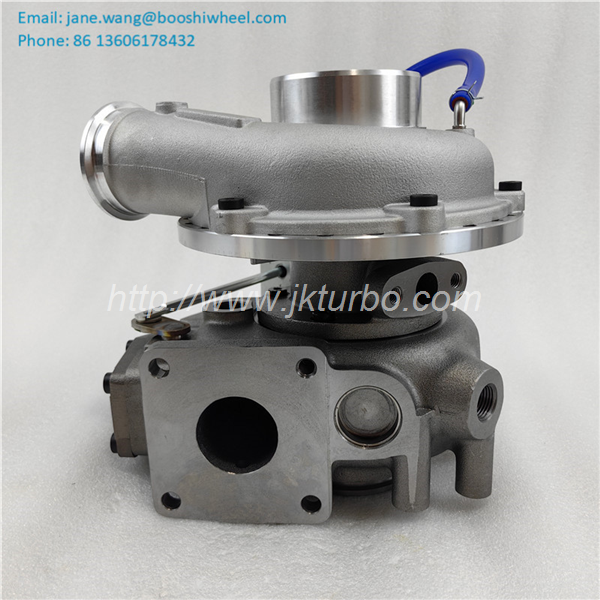

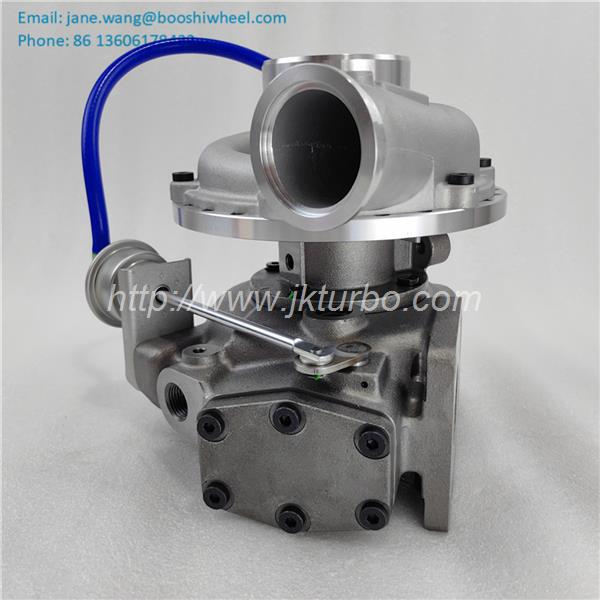

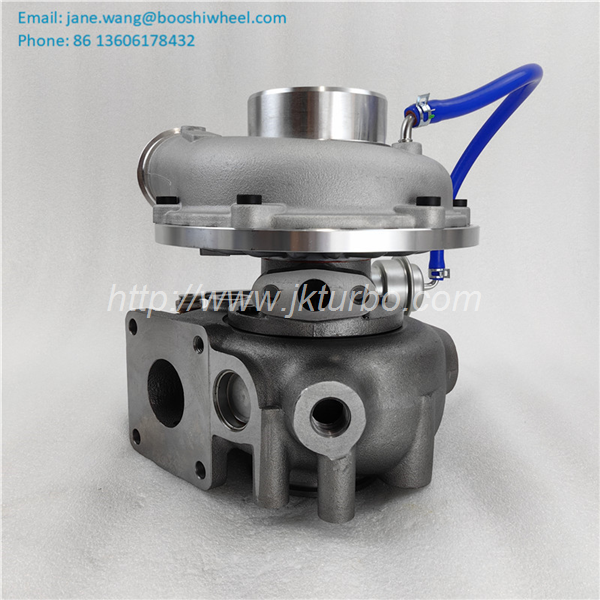

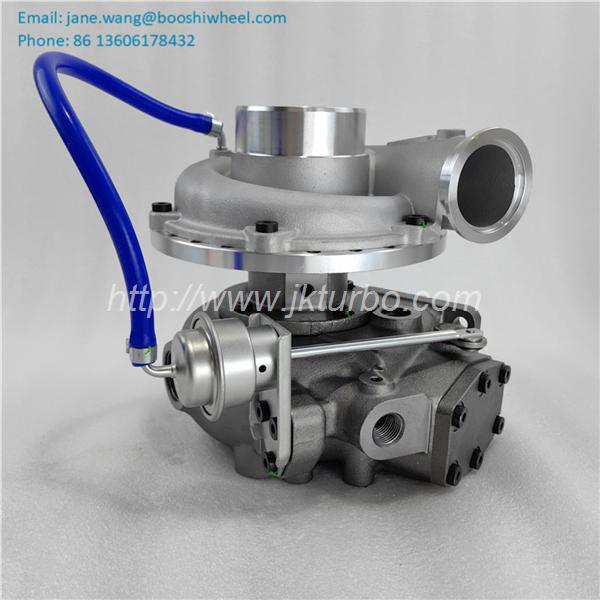

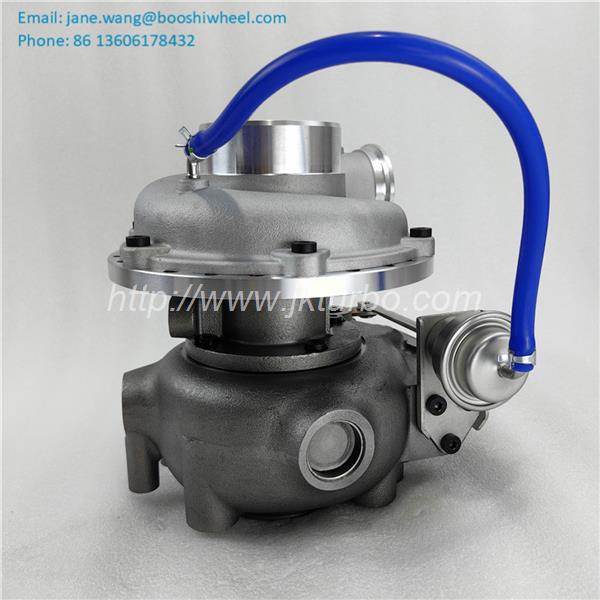

RHE62W turbocharger 119773-18010 VA720022 VB720022 VD720022 turbo for Yanmar Marine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	VC720022
Previous versions	VA720022, VB720022, VD720022
OE number	119773-18011, 11977318011, 119773-18010, 11977318010, 1-19773-18011, 1-19773-18010, E61CAD-S0022B, E61CADS0022B
V-SEPC.	MYAX
Description	Marine
CHRA	VAX10016 (E61CAD-S0033C, E61CADS0033C) $550.00 NEW IN STOCK, MADE IN USA
Turbo Model	RHE62W-118003P20NWBRB584CCZ
Engine	6LP-DTE, 6LP-DTZE, 6LPA-DTEP, 6LPA-DTZEP
Displacement	41.66L, 4166 ccm, 6 Cylinders
KW	254 HP
Fuel	Diesel
Angle α (compressor housing)	225°
Angle β (turbine housing)	340°
Bearing Housing	NH362709 (Oil Cooled) $203.92 NEW IN STOCK
Turbine Wheel	NH361206 (Ind. 64.2 mm, Exd. 69.5 mm, 11 Blades) $498.32 NEW IN STOCK
Comp. Wheel	NH364606 (Ind. 56.3 mm, Exd. 75.06 mm, 6+6 Blades, Superback) $149.00 NEW IN STOCK
Back plate	NH362112 $144.14 NEW IN STOCK
Heat shield Number	NH365303 (NB137143, NN137055)(38T-013)(129403-18720) $12.25 NEW IN STOCK
Repair Kit	NH369801 (NH369802)(2445200) $129.00 NEW IN STOCK
Bearing	NH363001
Thrust bearing	NH363051
Piston Ring (turbine side)	NH261604 (070T-018) $12.88
Piston Ring (compressor side)	NH261605 (070T-016, 115033-0000) $14.16
Turbine Housing (Water-Cooled)	NH365419 $1906.50
Compressor Cover	NH364405
Turbine Housing AR	20
Actuator	NH961260 (NH961180) $539.64
Gasket(turbine inlet)	119773-18250 $22.81
Gasket	23414-100000
Gasket	23414-080012
Gasket (turbine Outlet)	128300-13230 $29.50
Silencer	119773-18850 $313.49
Plug PF1/8	23893-010002
Manufacturer	IHI

Applications

1998- Yanmar Marine with 6LP-DTE, 6LP-DTZE Engine
