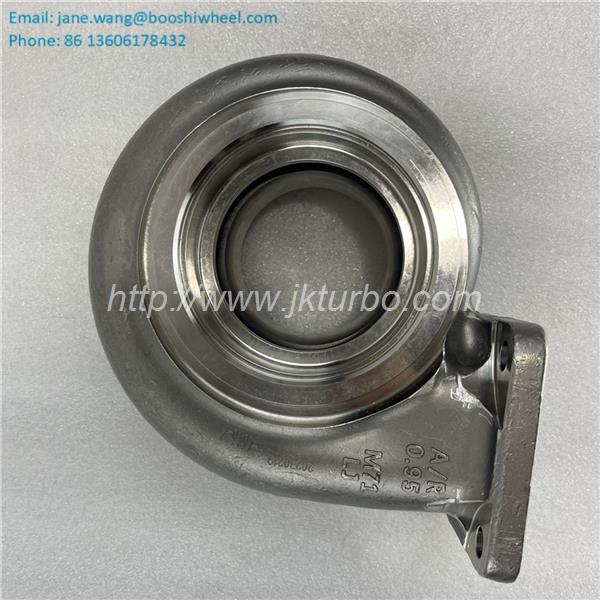

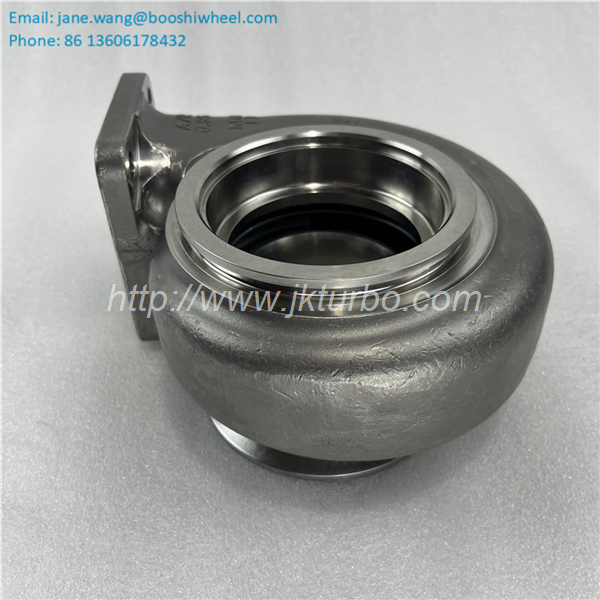

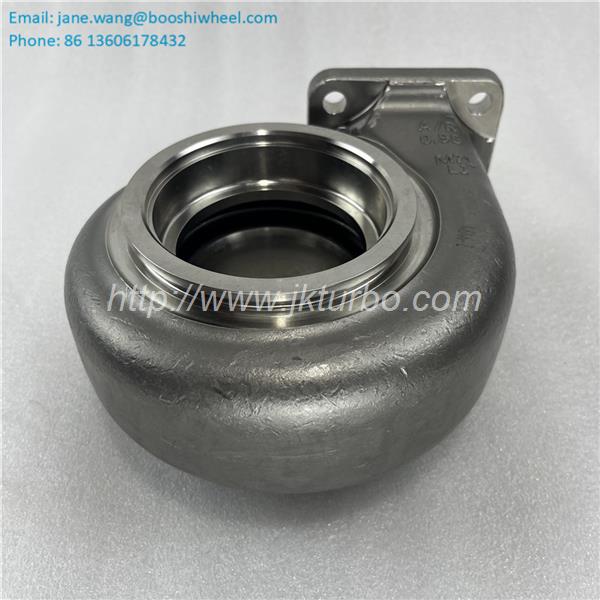

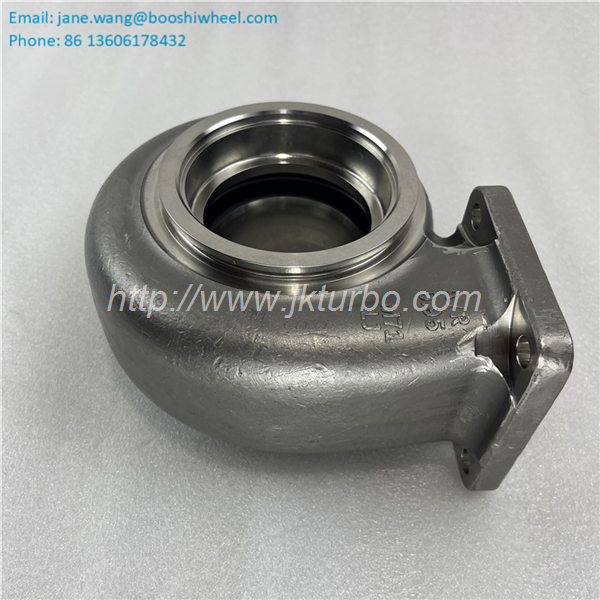

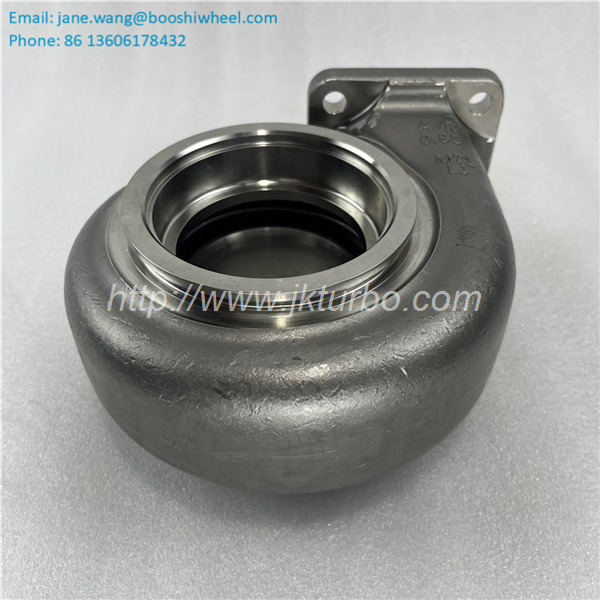

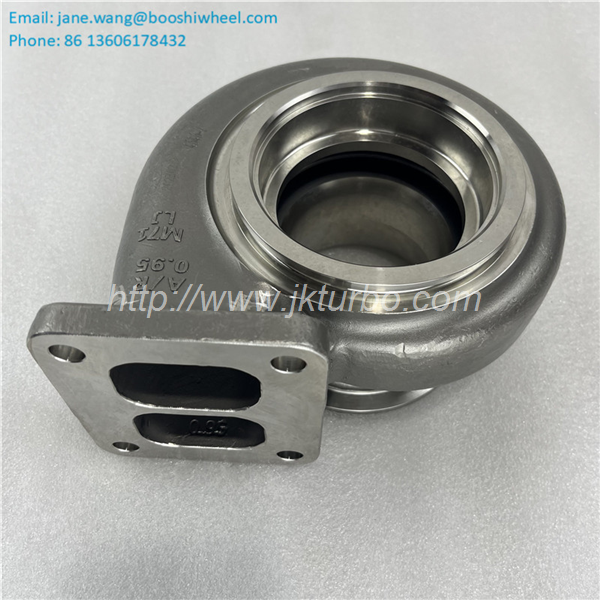

Garrett G40-1150 Turbine Housing 757707-0028 71mm G-Series Turbo Dual Ceramic Ball Bearing Turbo T4 AR 0.95

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Compressor Wheel Inducer: 71mm

Compressor Wheel Exducer: 88mm

Compressor Wheel Trim: 65

Compressor Housing A/R: 0.80

Turbine Wheel Inducer: 77mm

Turbine Wheel Exducer: 70mm

Turbine Wheel Trim: 84

G40-1150	Compressor				Turbine
G40-1150	Inducer	Exducer	Trim	A/R	Inducer	Exducer	Trim
HP: 500-1150 Disp: 2.0L-6.0L	71mm	88mm	65	0.80	77mm	70mm	84
Supercore	PN
Standard Rotation	860777-5002S
Turbine Kits: G40	PN		A/R	Inlet	Outlet	Wastegate	Divided
Interchangeable with G40-900 \| G40-1150 Supercores	757707-0027		0.85	V-Band	V-Band	Free Float	N
	757707-0028		0.95	V-Band	V-Band	Free Float	N
	757707-0029		1.06	V-Band	V-Band	Free Float	N
	757707-0030		1.19	V-Band	V-Band	Free Float	N
	757707-0032		0.85	T4	V-Band	Free Float	Y
	757707-0033		0.95	T4	V-Band	Free Float	Y
	757707-0034		1.06	T4	V-Band	Free Float	Y
	757707-0035		1.19	T4	V-Band	Free Float	Y
