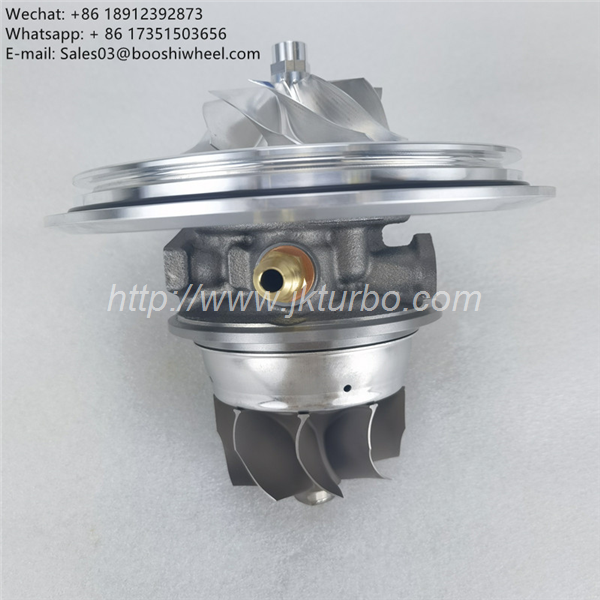

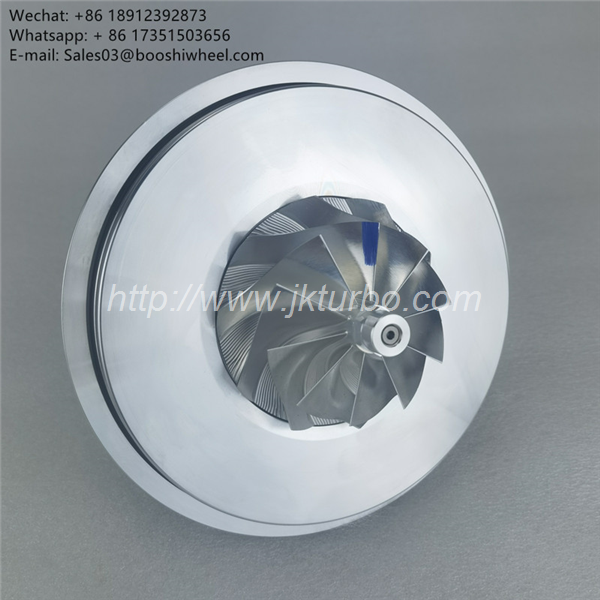

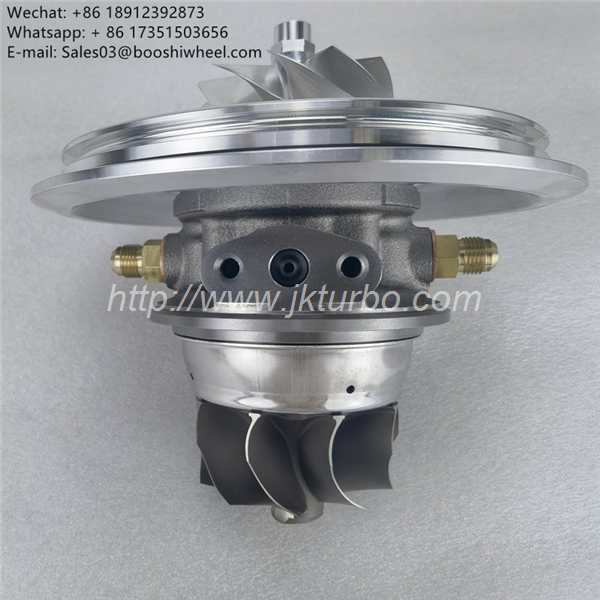

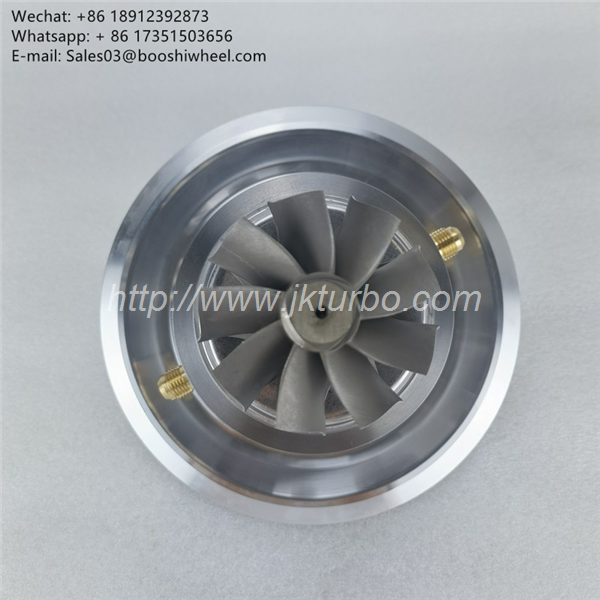

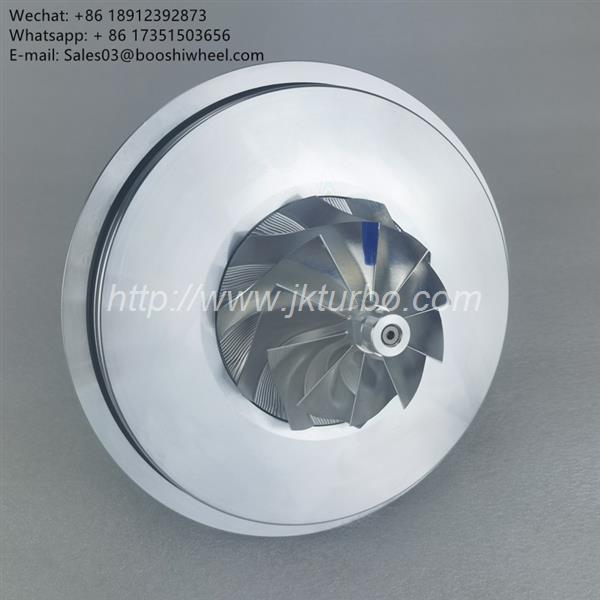

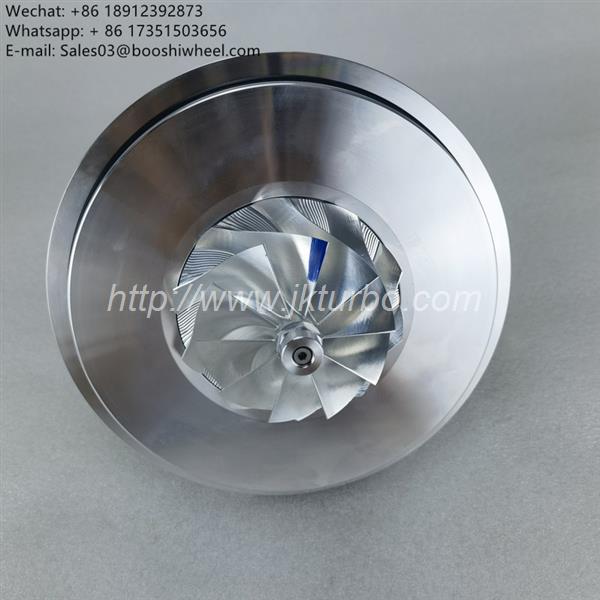

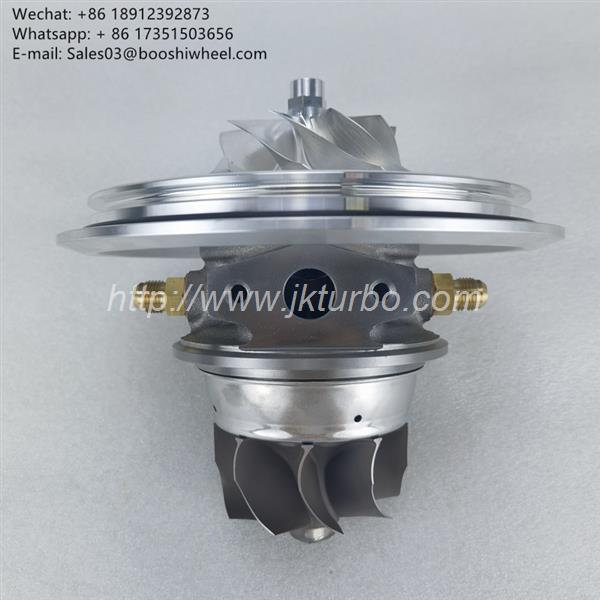

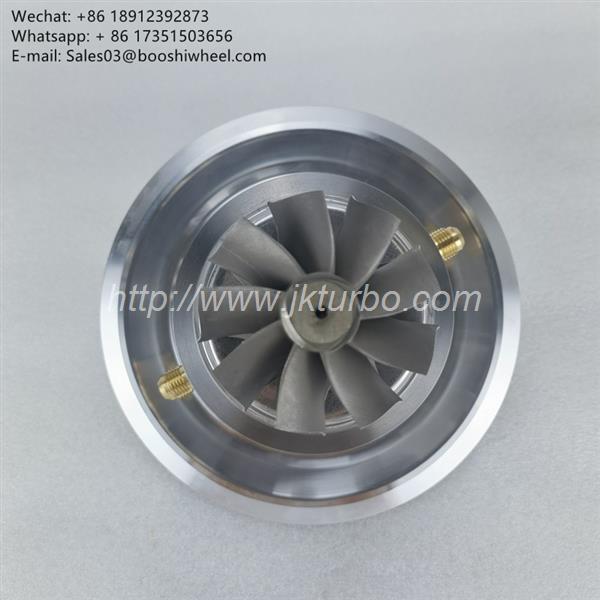

G42-1200 Standard rotation turbocharger chra turbo Core Cartridge for modify turbocharger

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

• The new G42 Series line of turbochargers features the latest Garrett Motion technology. This 100% clean sheet product has many advanced features. New Compressor aerodynamics deliver up to 1450 horsepower. High flowing Inconel turbine wheel handles up to 950 degrees. New 8mm ball bearing cartridge is compact in size allowing us to produce a narrower center housing.
•
• Horsepower: 475 - 1450HP
  Displacement: 2.0 - 8.0L
• Garrett® G Series Compressor Aerodynamics (10 blades) for maximum HP.
• Fully machined Speed Sensor and pressure ports.
• Turbine Wheel Aero constructed of Inconel super alloy rated 950ºC
• Stainless Steel non wastegated turbine housing option capable of 950°C.
• Oil restrictor and water fittings included.

• Part Number	879779-5007S
  Model	G42 G42-1200
  Displacement	2.0 - 7.0L
  Rotation	standard rotation
  power	475 - 1200HP
  SUPER CORE	860778-5004S
  compressor inducer	73 mm
  compressor exducer	91 mm
  compressor housing A/R	0.85
  Compressor TRIM	65
  compressor AIR INLET	Hose 5.00" (127.00mm)
  Compressor Air Outlet:	V-Band 4.20" (107.00mm)
  Turbine inducer	82 mm
  Condition	brand new
  Turbine exducer	75 mm
  TURBINE HOUSING KIT	757707-0011
  Turbine housing A/R	1.01
  Turbine inlet	v-band
  Turbine outlet	v-band 4.30" (109.00mm)
  turbine TRIM	84
  Bearing housing	Water and Oil cooled system.
