GARRETT G25-550 48mm turbocharger 740902-0076 Back Housing

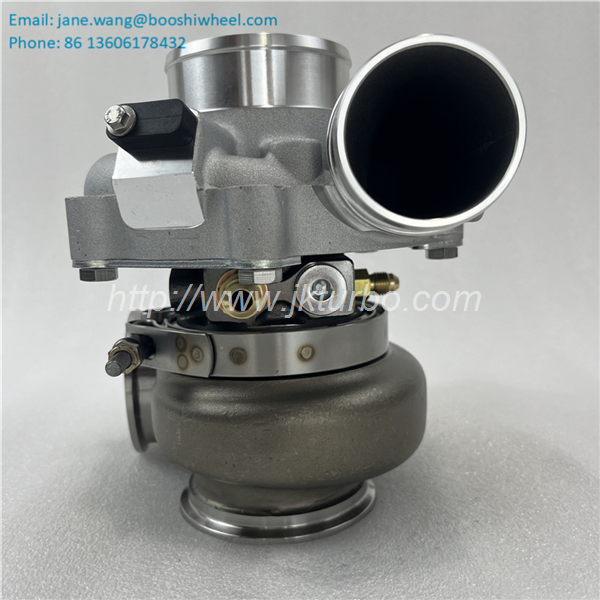

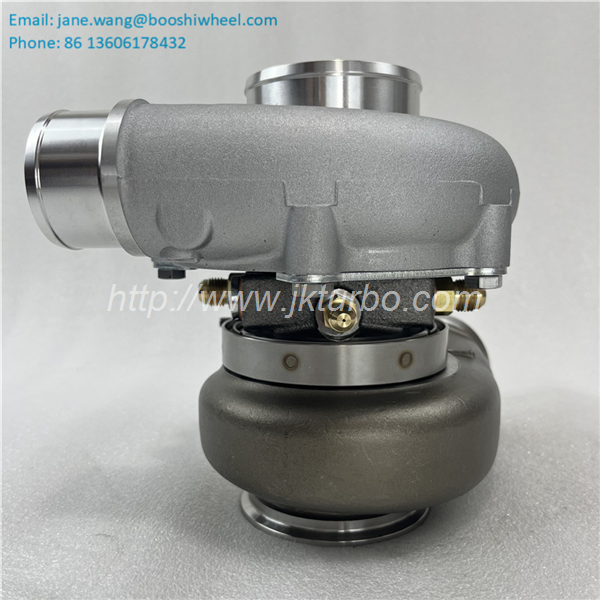

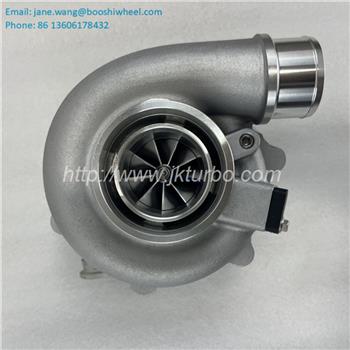

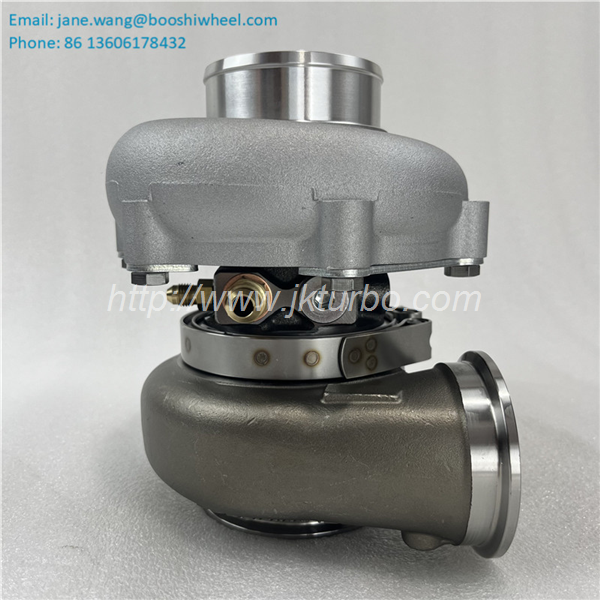

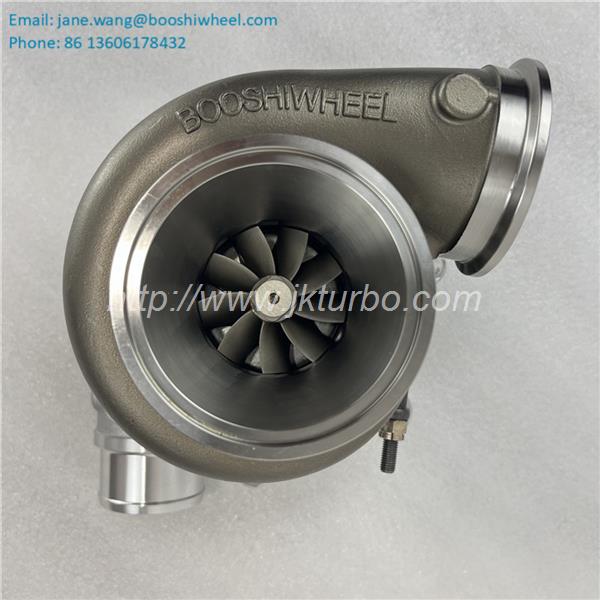

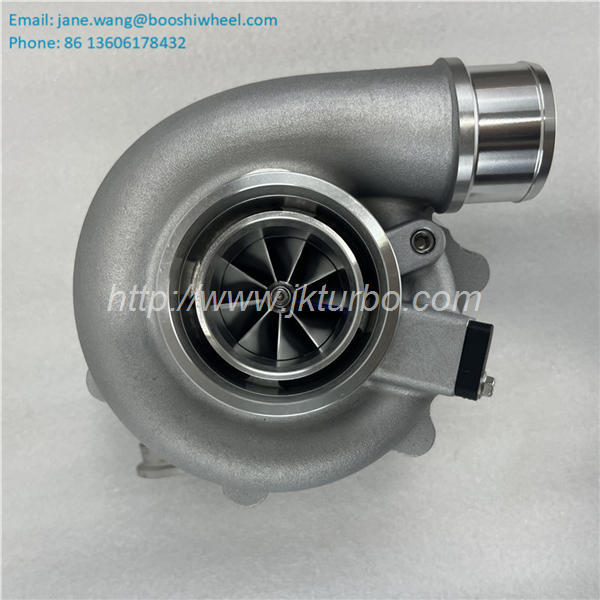

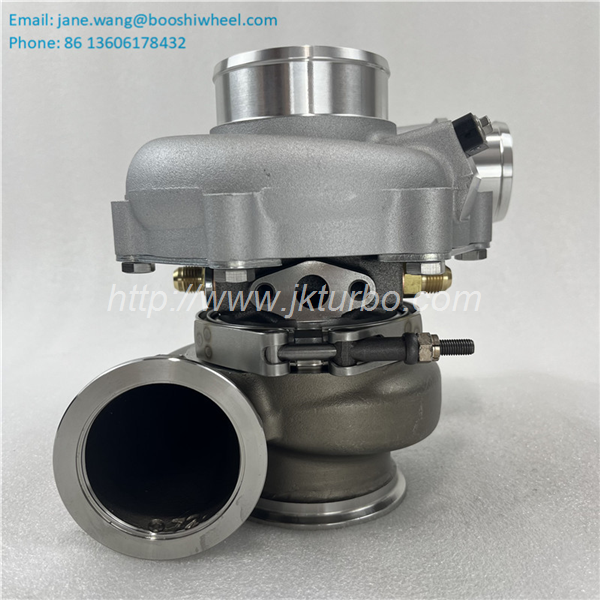

G25-550 Turbo 877895-5004S Standard Rotation floating bearing chra stainless steel turbine housing V-band AR 0.92

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com



Specification

Reference Data

















G25-550 Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 300-550 Disp: 1.4L-3.0L 48mm 60mm 65 .70 54mm 49mm 84
Turbo: Standard Rotation PN A/R Inlet Outlet Wastegate Divided
Assembled and calibrated with 0.5 bar actuator 877895-5001S 0.49 T25 V-Band Internal N
877895-5003S 0.72 V-Band V-Band Internal N
877895-5004S 0.92 V-Band V-Band Internal N
Turbo: Reverse Rotation PN A/R Inlet Outlet Wastegate Divided
See note above 877895-5007S 0.72 V-Band V-Band Internal N
877895-5008S 0.92 V-Band V-Band Internal N
Turbine Kits Standard Rotation PN A/R Inlet Outlet Wastegate Divided
Internal Wastegate Turbine Housing 740902-0076 0.72 V-Band V-Band Internal N
740902-0077 0.92 V-Band V-Band Internal N
740902-0080 0.49 T25 V-Band Internal N
Turbine Kits Reverse Rotation PN A/R Inlet Outlet Wastegate Divided
Internal Wastegate Turbine Housing 740902-0078 0.72 V-Band V-Band Internal N
740902-0079 0.92 V-Band V-Band Internal N
Supercore PN
Standard Rotation 858161-5002S
Reverse Rotation 871388-5001S
Turbine Kits Standard Rotation PN A/R Inlet Outlet Wastegate Divided
Free Float Turbine Housing 740902-0069 0.72 V-Band V-Band External N
740902-0068 0.92 V-Band V-Band External N
Turbine Kits Reverse Rotation PN A/R Inlet Outlet Wastegate Divided
Free Float Turbine Housing 740902-0073 0.72 V-Band V-Band External N
740902-0074 0.92 V-Band V-Band External N
