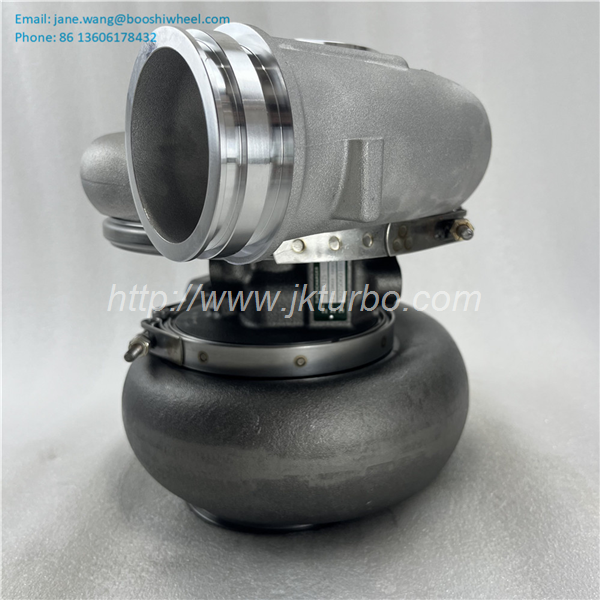

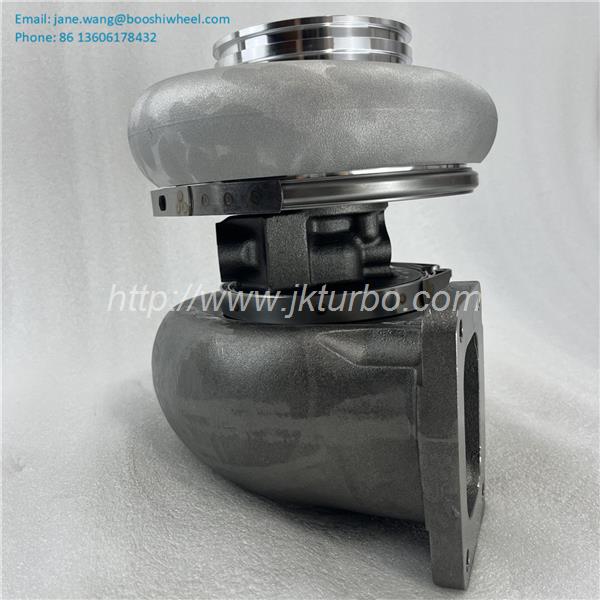

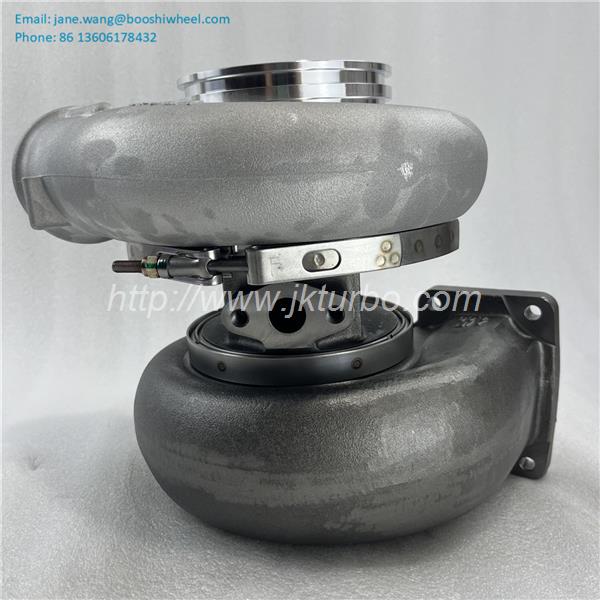

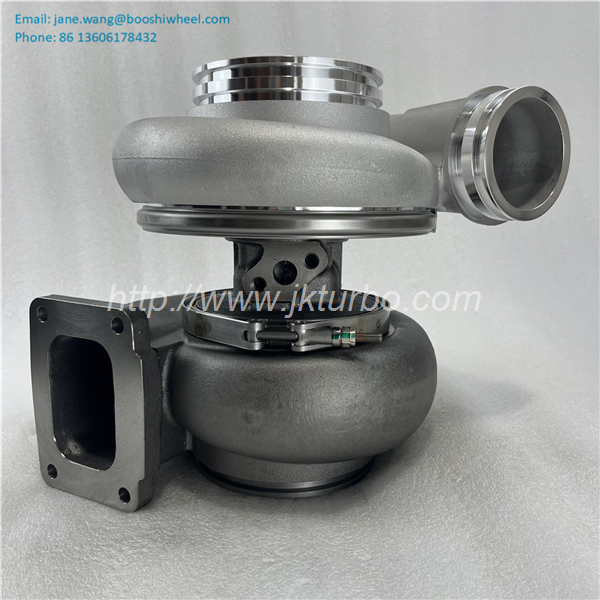

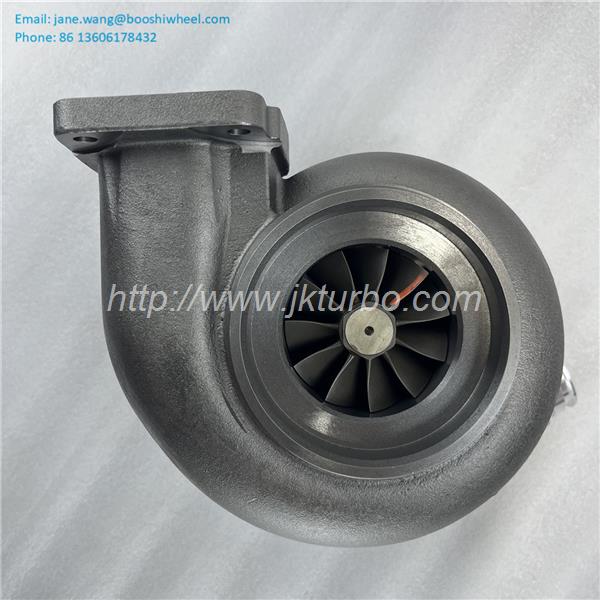

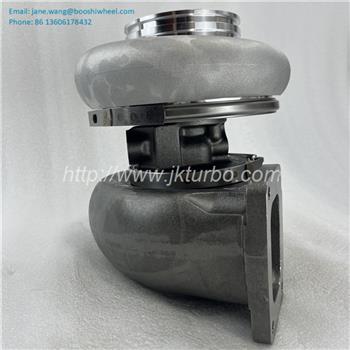

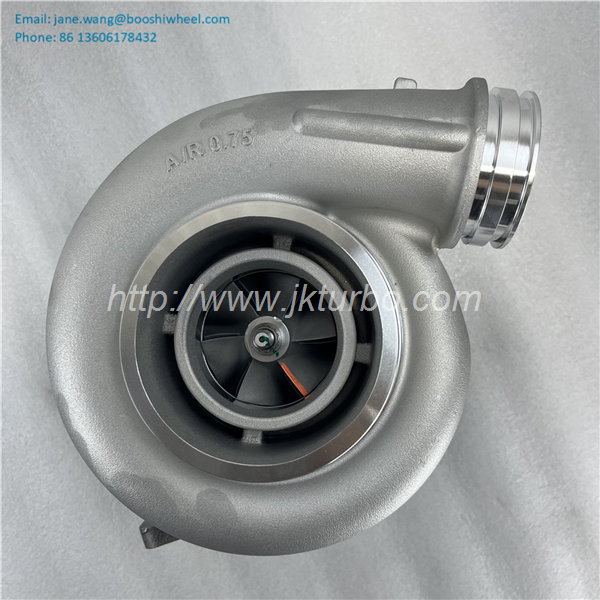

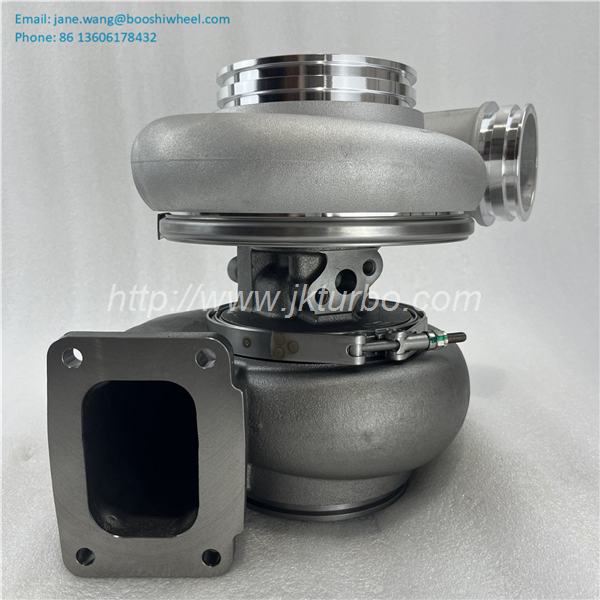

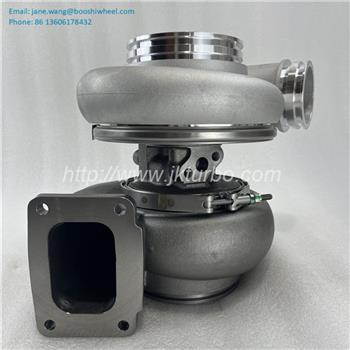

724260-0003 UTV7125 Turbocharger for Industrial Gen Set

UTV7125 Turbo charger 449530-0042 724260-5003S 724260-0003 724260-3 305996B for Industrial Gen Set

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	724260-5003S
Previous Version	724260-0003, 724260-3
OE Number	305996B
Description	Industrial Gen Set
CHRA	449530-0042 (449530-5042S)(208350)
Turbo Model	UTV7125
Engine Manufacturer	Waukesha
Displacement	18.0L, 18000 ccm
Fuel	CNG
Angle α (compressor housing)	330º
Angle β (turbine housing)	133º
Bearing Housing	449072-0016 (Oil Cooled)
Turbine Wheel	451215-0002
Comp. Wheel	441829-0003 (Ind. 72.39 mm, Exd. 102.31 mm, Trm 8.07, 6+6 Blades, Superback)
Back plate	447241-0007
Heat shield Number	410113-0002 (407967-0003)
Repair Kit	711494-0001 (468267-0010)
Turbine Housing	408532-0036
Compressor Cover	446823-0003
Turbine Housing A/R	1.60

Applications

2001- Turbocharger for Waukesha Industrial Gen Set with CNG VGF Engine
