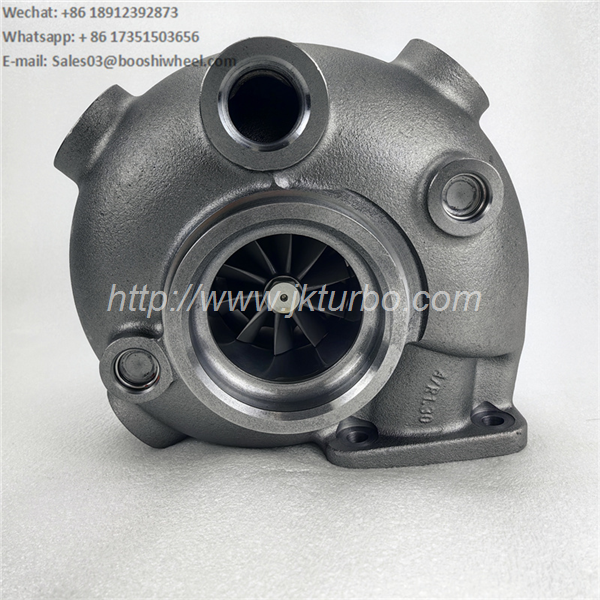

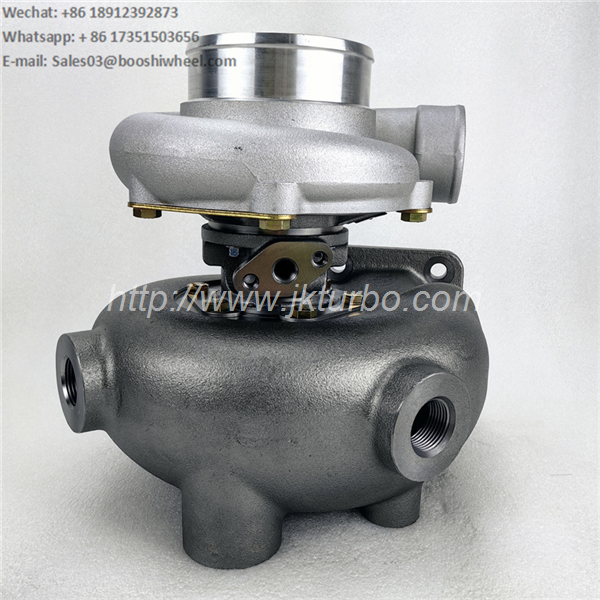

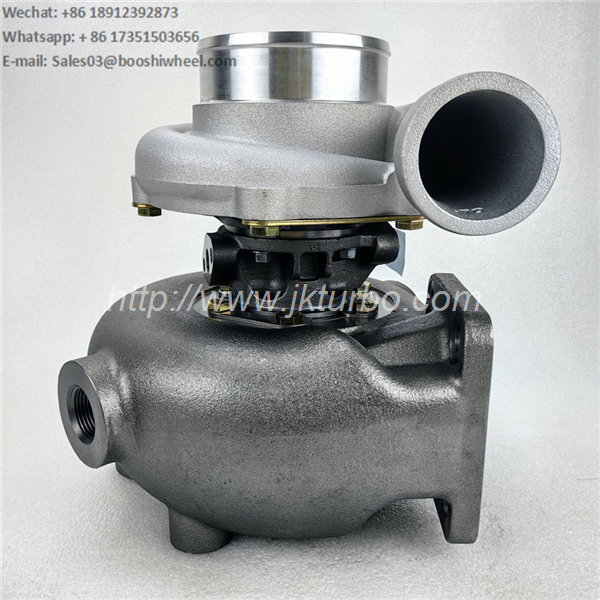

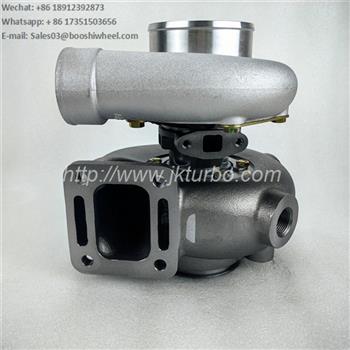

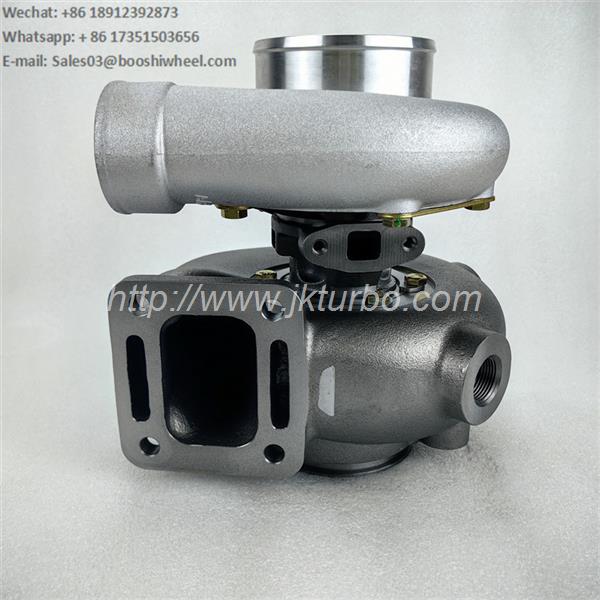

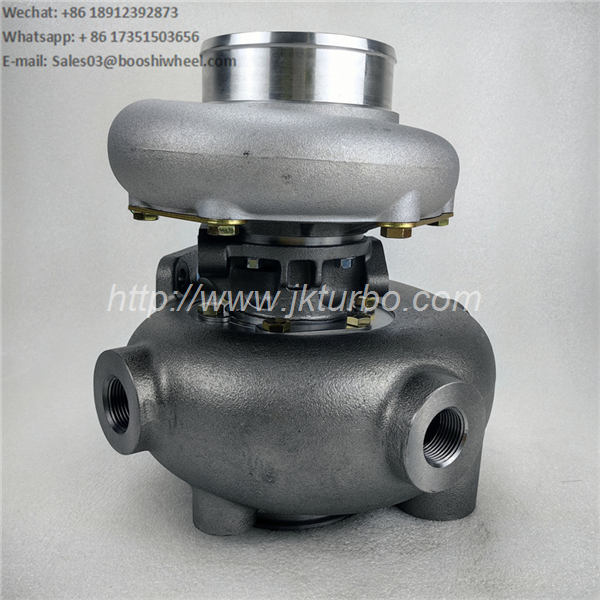

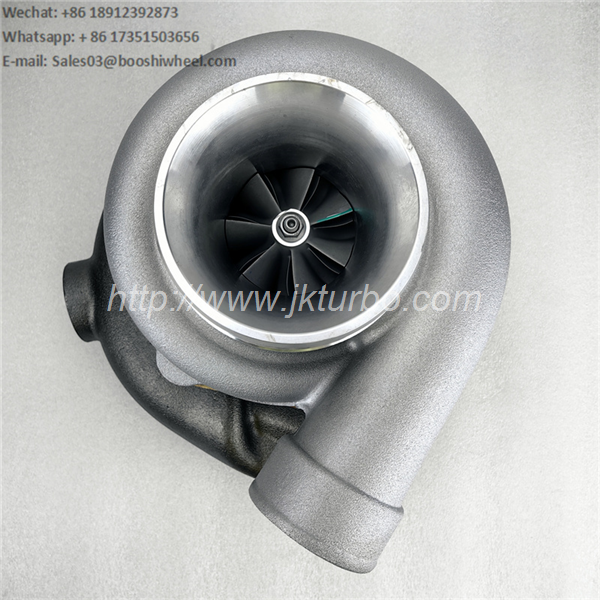

TW4103 Marine turbo 466082-5002S 8925686 466082-5001S 466082-0002 R8923640 turbocharger for Detroit Diesel Marine 8.2L engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	466082-5002S
Previous Version	466082-0001, 466082-0002, 466082-5001S, 466082-1, 466082-2
OE Number	08923640, 8923640, R8923640, 08925686, 8925686
Year	2003-08
Description	Marine
CHRA	441663-0001 (441663-5001S)(8927056) $698.85 NEW IN STOCK
Turbo Model	TW4103, TW4105
Engine Manufacturer	Detroit Diesel
Fuel	Diesel
Displacement	8.2L, 8200 ccm
KW	300 HP
NSN	2950-01-247-1845, 2950012471845
Angle α (compressor housing)	161º
Angle β (turbine housing)	340º
Bearing Housing	407285-0046 (8927057)(Oil Cooled) $130.30 NEW IN STOCK
Turbine Wheel	410982-0001 (8927060) $254.43 NEW IN STOCK
Comp. Wheel	409535-0001 (8927062)(Ind. 58. mm, Exd. 76. mm, Trm 58, 7+7 Blades, Billet) $194.49 NEW IN STOCK
Back plate	408045-0009 (446560-0001)(8927061) $138.80 NEW IN STOCK
Heat shield Number	441378-0000 (8927059) $58.46 NEW IN STOCK
Repair Kit	468100-0000 (188401-0000, 3524796, 2W0716, 6N7236, 310063, 79025721)(1100040750, 5000010041) $69.00 NEW IN STOCK
Turbine Housing (Water Cooled)	441279-0004 (8927065) $900.62
Compressor Cover	409722-0002 (8927064) $276.54 NEW IN STOCK
Turbine Housing AR	1.30
Gasket (turbine inlet)	210362 (Metal & paper)
Gasket oil inlet	210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) $4.48
Gasket(oil outlet)	210021 (210021-0000, 409037-0000, 413671-0000, 3519807, 311496)(1900000027) (Paper) $4.48
Manufacturer	booshiwheel

Applications：

2003-08 Detroit Diesel Marine 8.2L engine
