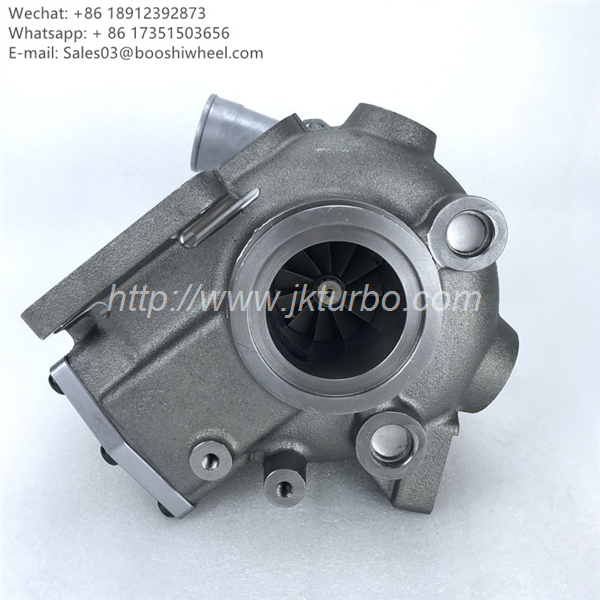

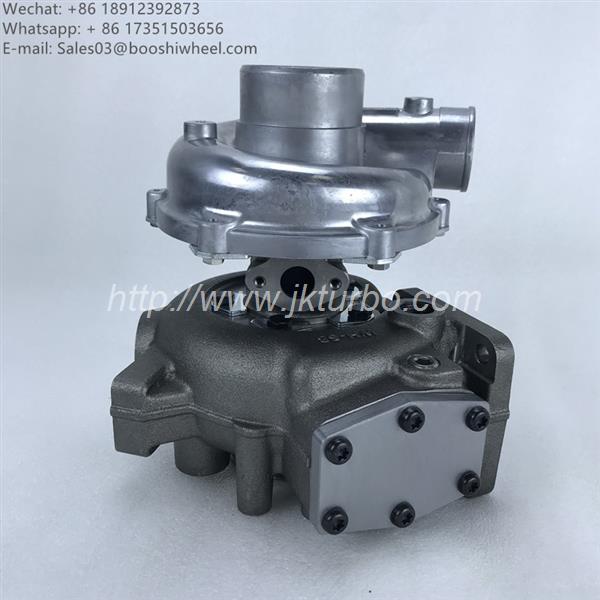

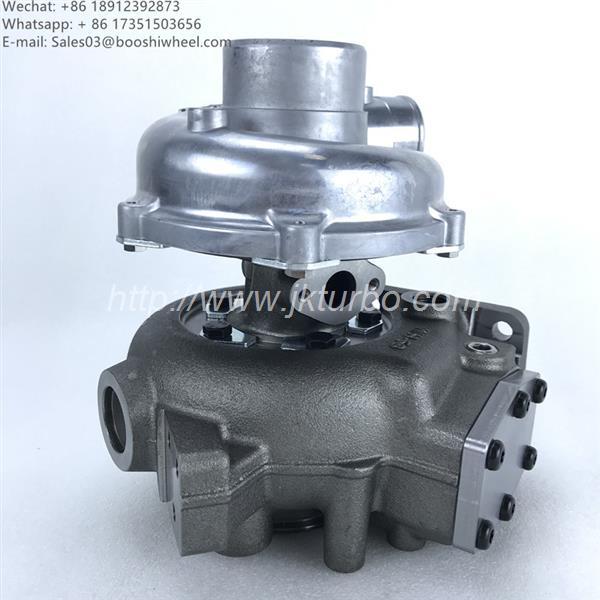

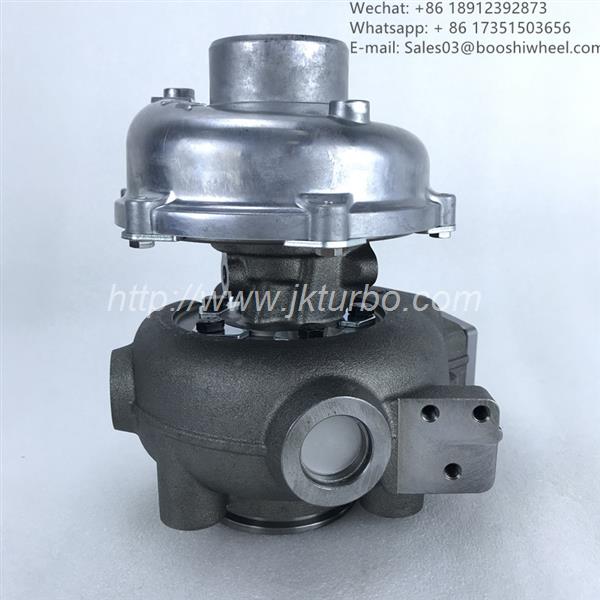

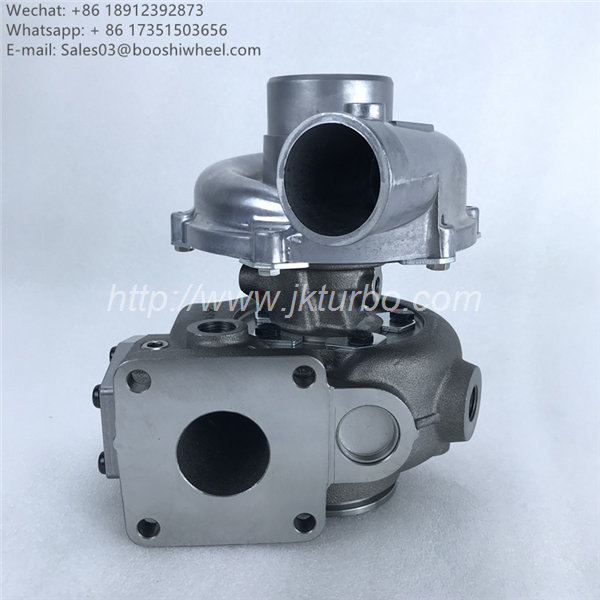

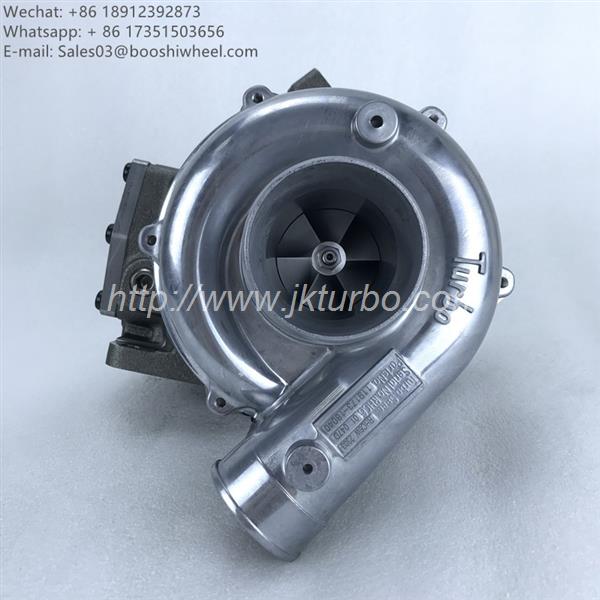

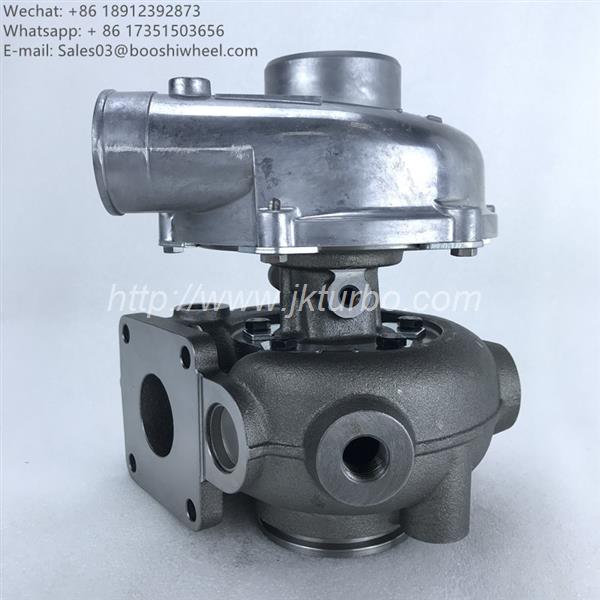

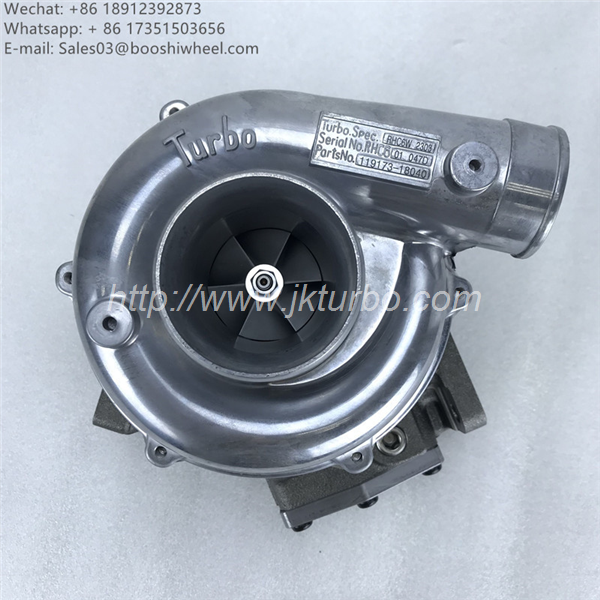

MYDH Marine turbo RHC61W 119173-18041 119173-18040 VC240101 VD240101 turbocharger for Yanmar Marine 4LHA-DTZE 4LHA-DTE Engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	VC240101
Previous Part Number	VA240101, VB240101, VD240101
OE number	119173-18040, 119173-18041, 11917318040, 11917318041, C61CND-S0101B, C61CND-S0101G, C61CNDS0101B, C61CNDS0101G
V-Spec.	MYDH
Description	Marine
CHRA	NZ854798 (NZ870535) $448.00 NEW IN STOCK, MADE IN USA
Turbo Model	RHC61W-1036P16NWBRLL4715CC
Engine	4LHA-DTZE, 4LHA-DTE, 4LHA-DTP, 4LHA-DT(Z)E(P)
Displacement	3.5L, 3456 ccm, 4 Cylinder
Power	140/190/200 HP
Fuel	Diesel
Angle α (compressor housing)	70°
Angle β (turbine housing)	100°
Bearing Housing	NH163376 (NH163331)(831211260)(831211090)(Oil Cooled) $143.52 NEW IN STOCK
Turbine Wheel	NH261301D (171012)(Ind. 62. mm, Exd. 54.71 mm, 11 Blades) $106.80 NEW IN STOCK
Comp. Wheel	NH265520 (170268)(Ind. 46.78 mm, Exd. 69. mm, 6+6 Blades, Superback) $125.90 NEW IN STOCK
Back plate	NN193012 (171124) $18.55 NEW IN STOCK
Heat shield Number	NH163329 (171056) $14.82 NEW IN STOCK
Repair Kit	NH169843 (509T-538)(171079) $129.00 NEW IN STOCK
Compressor Cover	NH264962
Turbine Housing AR	16
Actuator	NH961640 (NH961641)
Gasket (turbine Outlet)	128300-13230
Gasket (oil outlet)	210161 (128300-1323, Gasket paper)

Application:

Yanmar Marine with 4LHA-DTE Engine
