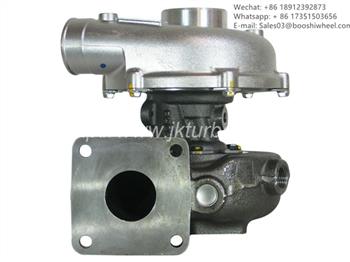

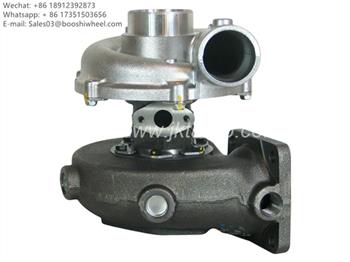

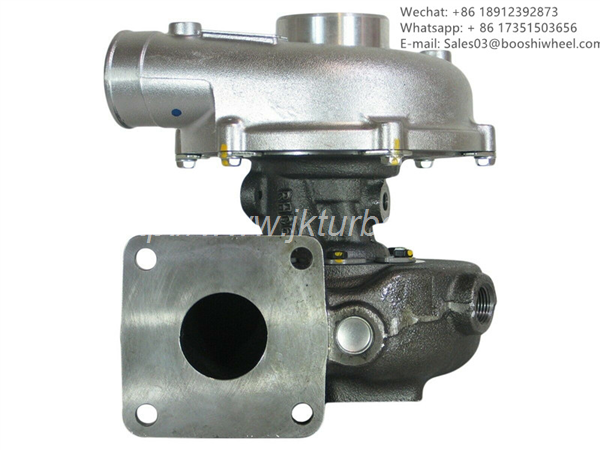

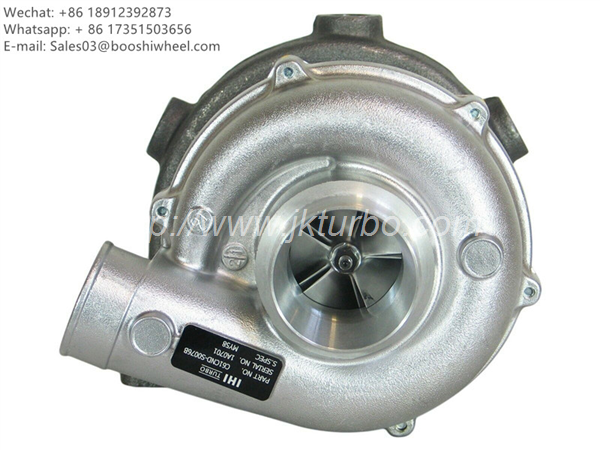

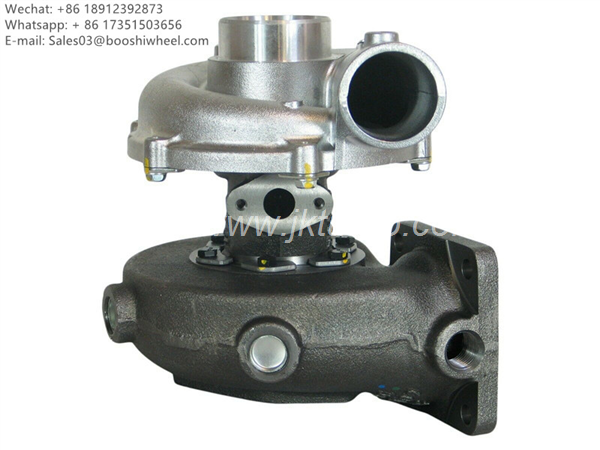

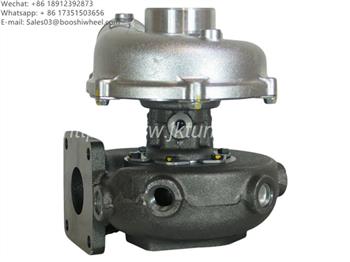

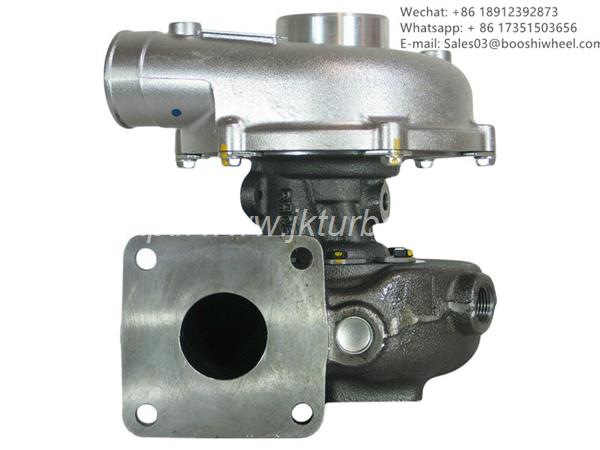

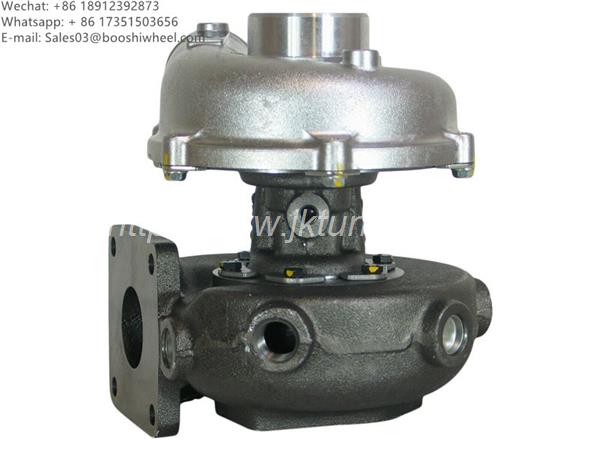

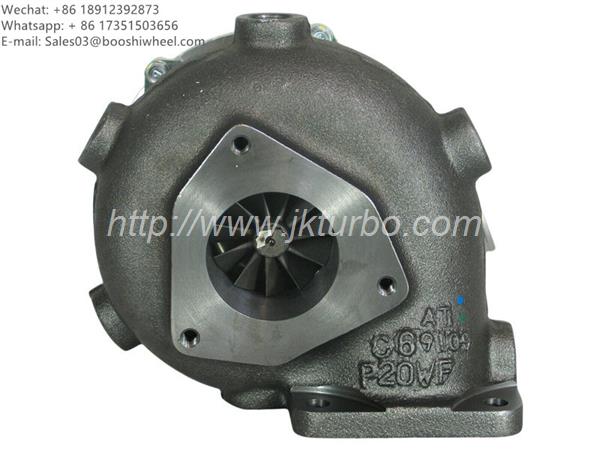

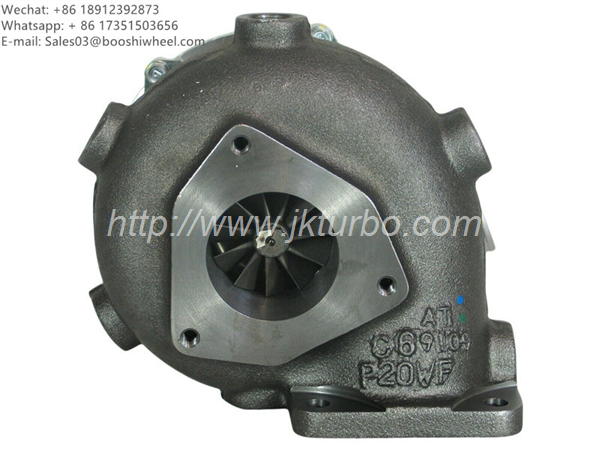

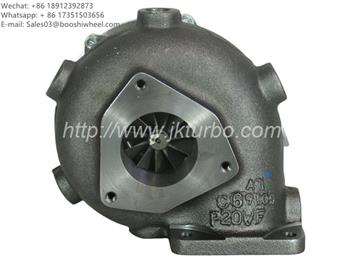

Ship turbo MY58 RHC61W 6T582 VD24007 VA240076 119171-18010 119171-18011 Turbocharger for Yanmar Marine 3.5L 4LH-TE Engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	VD24007
Previous Part Number	6T-582, 6T582, NH160022, VA240076, VB240076, VC240076
OE number	11917118010, 119171-18010, 1-19171-18010, 119171-18011, C61CND-S0076B, C61CNDS0076B
V-SPEC.	MY58
Year	1988-01
Description	Marine
CHRA	N/A
Turbo Model	RHC61W-1183P20NWBRL504A
Engine	4LH-TE, HT-4LH
Fuel	Diesel
Displacement	3455 ccm, 4 Cylinders
KW	110 HP
Fuel	Diesel
Angle α (compressor housing)	70°
Angle β (turbine housing)	182°
Bearing Housing	NH163155 (Oil Cooled)
Turbine Wheel	NH161402 (NH161312, NH165203)(Wheel BR504A)(Ind. 56.33 mm, Exd.30.91 mm, 11 Blades) $306.98
Comp. Wheel	NH165203 (NH161300)(Ind. 45.63 mm, Exd. 65. mm, 5+5 Blades, Superback) $1007.42 NEW IN STOCK
Back plate	NN193012 $61.40 NEW IN STOCK
Heat shield Number	NH261107
Repair Kit	NH169836 (NN169836) $151.17 NEW IN STOCK
Turbine Housing (Water Cooled)	NH167519 (NE967160) $1040.69
Compressor Cover	NH164602 (NE964530) $365.90
Turbine Housing AR	20
Gasket (turbine inlet)	210235 (Stainless Steel) $33.00
Gasket (oil outlet)	210161 (128300-1323, Gasket paper)

Application:

Yanmar Marine with 4LH-TE Engine
